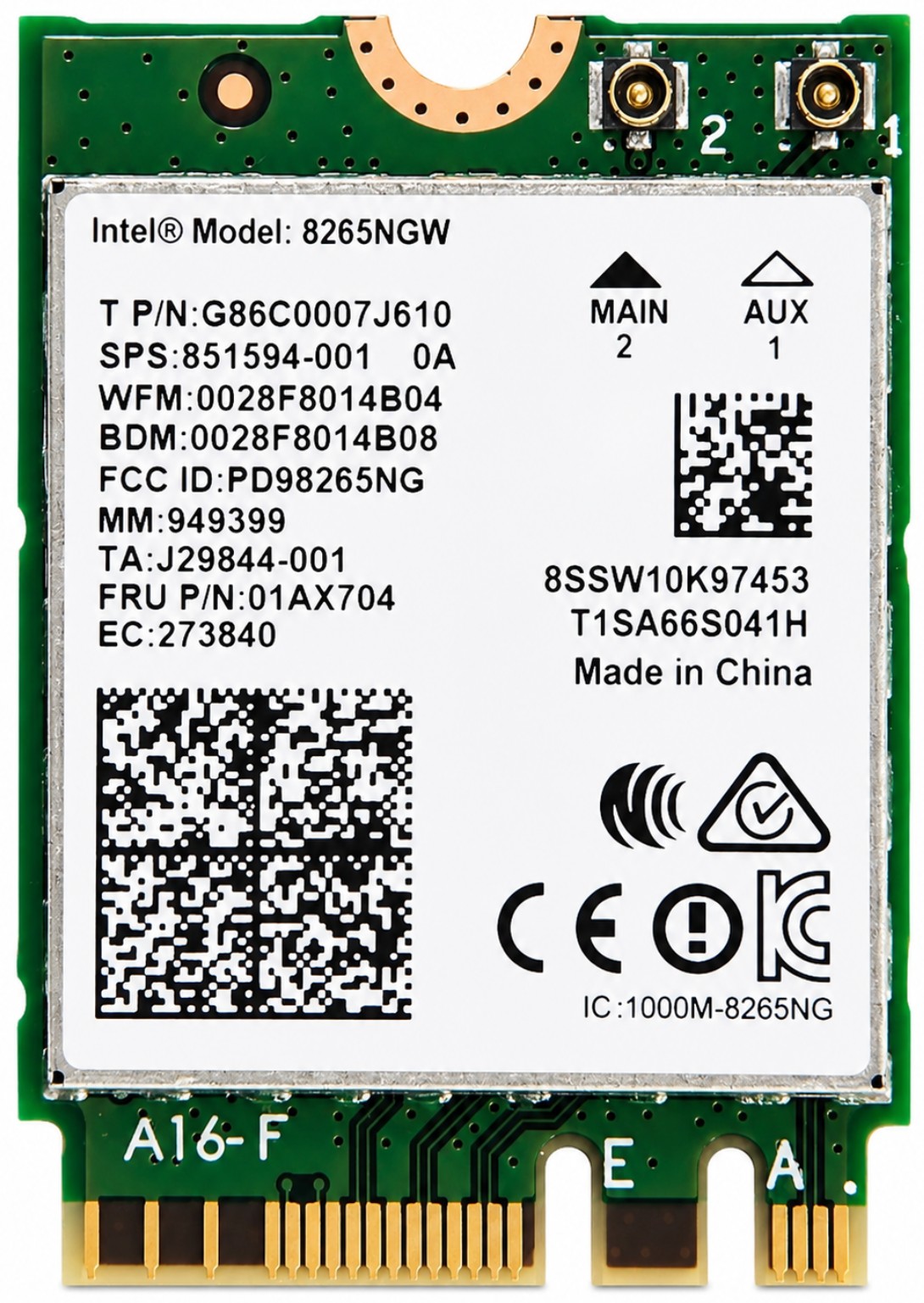

Intel Dual Band Wireless-AC 8265 802.11ac 2x2 Wi-Fi Bluetooth 4.2 M.2 WLAN Adapter

Intel Dual Band Wireless-AC 8265 combination WLAN adapter for compatible laptops, mini PCs, industrial PCs, embedded systems, and desktop motherboards with a supported M.2 2230 Wi-Fi slot. This adapter provides dual-band 802.11ac Wi-Fi, 2x2 antenna support, Bluetooth 4.2, MU-MIMO support, and up to 867 Mbps wireless speed in compatible systems.

Technical Specifications

• Model: Intel Dual Band Wireless-AC 8265
• Common Module Marking: 8265NGW
• Wireless Standard: Wi-Fi 5 / 802.11ac
• Wi-Fi Configuration: 2x2
• Bands: 2.4GHz and 5GHz
• Maximum Wireless Speed: Up to 867 Mbps
• Bluetooth: Integrated Bluetooth 4.2
• MU-MIMO Support: Yes
• Form Factor: M.2 2x2
• Module Size: 22mm x 30mm x 2.4mm
• System Interface: Wi-Fi over PCIe / Bluetooth over USB
• Antenna Configuration: 2 antenna leads required
• Connector Type: M.2 Key E / A+E style WLAN slot
• Operating Temperature: 0°C to 80°C
• Weight: Approx. 2.6g
• Supported Operating Systems: Windows 11 64-bit, Windows 10 64-bit, Linux
• Use Type: Internal Wi-Fi + Bluetooth replacement / upgrade module

Interchangeable / Replacement Part Numbers

• 8265NGW
• 8265.NGWMG.NV
• 8265.NGWMG.S
• 8265.D2WMLG
• 8265NGWMG
• 8265NGW.NV
• 8265NGW NV
• 8265NGW vPro
• 8265NGW non-vPro
• Intel Dual Band Wireless-AC 8265
• Intel Wireless-AC 8265
• Intel AC 8265
• Wireless-AC 8265 2x2
• 802.11ac 2x2 Wi-Fi + Bluetooth 4.2 M.2 WLAN card

Common OEM cross-reference numbers associated with Intel 8265NGW adapter listings include:

• 01AX704, 01AX705, 01AX706
• 00JT494, 00JT495, 00JT496
• 862457-001, 860883-001, 864810-855
• 08TF1D, 8TF1D, Y3HJP, 0Y3HJP

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or motherboard manufacturer prior to installation.

✔ HP EliteBook Series: EliteBook 820 G4, 828 G4, 840 G4, 848 G4, 850 G4, 830 G5, 840 G5, 840r G4, 850 G5, 735 G5, 745 G5, 755 G5, EliteBook x360 1020 G2, EliteBook x360 1030 G2, EliteBook x360 1030 G3, EliteBook x360 1040 G4, EliteBook x360 1040 G5, EliteBook x360 830 G5
✔ HP ProBook Series: ProBook 430 G5, 440 G5, 450 G5, 455 G5, 470 G5, 640 G4, 645 G4, 650 G4
✔ HP Elite x2 / Pro x2 Series: Elite x2 1012 G1, Elite x2 1012 G2, Elite x2 1013 G3, Pro x2 612 G2
✔ HP ZBook Mobile Workstations: ZBook 14u G4, ZBook 14u G5, ZBook 15u G4, ZBook 15u G5, ZBook Studio G4, ZBook 15 G4, ZBook 17 G4
✔ Dell Latitude Series: Latitude 3300, 5280, 5285 2-in-1, 5289 2-in-1, 5290, 5290 2-in-1, 5480, 5490, 5580, 5590, 7280, 7285 2-in-1, 7290, 7380, 7389 2-in-1, 7390, 7480, 7490
✔ Dell Precision Mobile Workstations: Precision 3520, Precision 5520, Precision 7520, Precision 7720
✔ Dell XPS Series: XPS 13 9360, XPS 13 9365 2-in-1, XPS 15 9560
✔ Lenovo ThinkPad T Series: ThinkPad T470, T470s, T470p, T570, T480, T480s, T580
✔ Lenovo ThinkPad X Series: ThinkPad X270, X280, X1 Carbon 5th Gen, X1 Carbon 6th Gen, X1 Yoga 2nd Gen, X1 Yoga 3rd Gen, X1 Tablet Gen 2
✔ Lenovo ThinkPad L / E Series: ThinkPad L470, L570, L480, L580, E470, E570, E480, E580
✔ Lenovo ThinkPad P Series: ThinkPad P51s, P51, P71, P52s
✔ Lenovo Yoga / Convertible Models: ThinkPad Yoga 370, ThinkPad X380 Yoga
✔ Intel NUC Mini PCs: NUC7i3BNH, NUC7i5BNH, NUC7i7BNH, NUC7i3DNHE, NUC7i5DNHE, NUC7i7DNHE, NUC7i5DNKE, NUC7i7DNKE
✔ ASUS Motherboards / Mini-ITX Boards: ROG Strix Z270E Gaming, ROG Strix Z270I Gaming, ROG Strix Z370-E Gaming, ROG Strix Z370-I Gaming, ROG Strix B360-I Gaming
✔ ASRock Motherboards / Mini-ITX Boards: Fatal1ty Z270 Gaming-ITX/ac, Fatal1ty Z370 Gaming-ITX/ac, Z270 Taichi, Z370 Taichi
✔ MSI Motherboards / Mini-ITX Boards: Z270I Gaming Pro Carbon AC, Z370I Gaming Pro Carbon AC, B360I Gaming Pro AC
✔ Gigabyte Motherboards / Mini-ITX Boards: GA-Z270N-WIFI, Z370N-WIFI, Z370 AORUS Gaming WiFi models using a removable M.2 2230 WLAN module
✔ Supermicro / Embedded Board Applications: X11SCA-F, X11SCA, X11SCZ-F, and other workstation / embedded boards with a removable M.2 2230 Key E WLAN slot and PCIe/USB WLAN support

☑️ Key Features

☑️ Dual-band 2.4GHz / 5GHz wireless connectivity
☑️ 802.11ac Wi-Fi 5 support with up to 867 Mbps speed
☑️ 2x2 antenna design for improved wireless throughput and stability
☑️ Integrated Bluetooth 4.2 for wireless peripherals and device pairing
☑️ MU-MIMO support for better network performance with compatible routers
☑️ M.2 2230 form factor used in many business laptops, mobile workstations, mini PCs, and compact desktops
☑️ Uses PCIe for Wi-Fi and USB for Bluetooth communication
☑️ Useful replacement for failed, intermittent, missing, or damaged internal WLAN adapters

⚙️ Fit Notes

• Match your original wireless card model when possible: 8265NGW
• Confirm your system uses an M.2 2230 Key E / A+E WLAN slot
• This is not a Mini PCIe half-height wireless card
• This is not an M.2 SSD and will not fit M.2 storage slots such as M-Key NVMe or B-Key SATA slots
• This adapter requires two internal antenna leads for full 2x2 Wi-Fi performance
• Bluetooth functionality requires USB signal support through the WLAN slot
• Some notebooks use BIOS wireless card allowlists; verify your system accepts Intel 8265 before ordering
• Some systems shipped with vPro and non-vPro versions; match the original card type when required by your fleet configuration
• Driver installation may be required after replacement
• Server rack systems typically do not use internal WLAN adapters unless the motherboard or embedded board includes a supported M.2 Key E WLAN slot
• Always disconnect power and battery before replacing internal wireless modules
