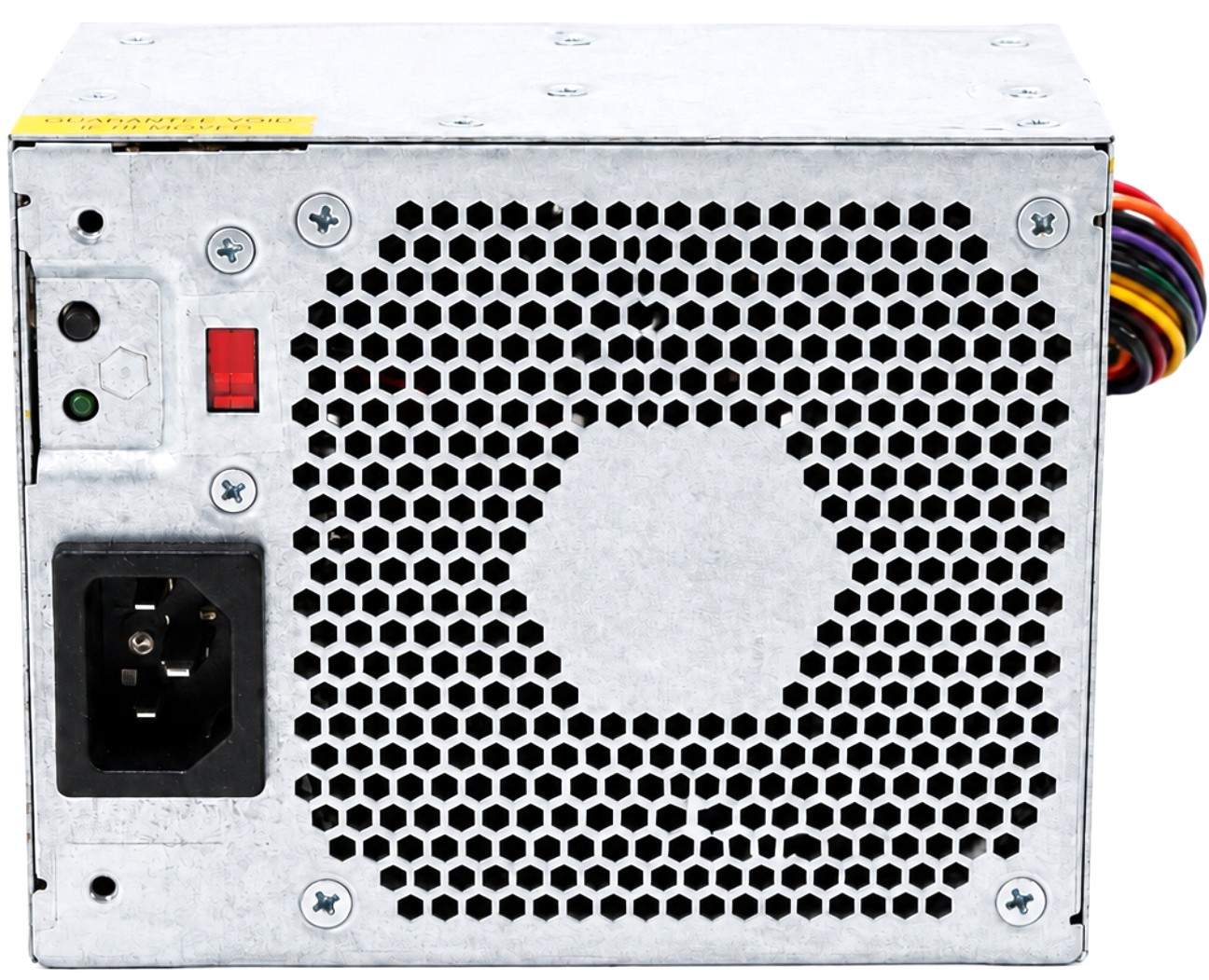

235W Power Supply for OptiPlex 360 380 Desktop DT

This genuine OEM 235W internal power supply is a direct-fit replacement for compatible OptiPlex 360 and 380 Desktop chassis originally configured with the 235W non-EPA power system. It uses the M619F / H235PD-01 electrical and mechanical family with a fixed ATX-style motherboard and drive-power harness. This is a chassis-specific Desktop / DT supply and is not a universal mechanical ATX replacement.

✔️ Genuine OEM Power Supply!

Technical Specifications

• Primary Part Number: M619F
• OEM Model Number: H235PD-01
• Manufacturer Model Number: HP-D2353P0
• Maximum Output Power: 235W
• Power Supply Type: Internal switching power supply
• Form Factor: OEM Desktop / DT chassis with ATX-style electrical connections
• Harness: Fixed / non-modular
• Approximate Dimensions: 125mm wide x 100mm high x 135mm deep
• Cooling: Integrated 92mm fan
• AC Inlet: IEC C14
• AC Input Frequency: 50–60Hz
• AC Input: 100–127V ~ 6.5A or 200–240V ~ 3.5A
• +5V Rail: 15A
• +3.3V Rail: 9A
• +12V Rail: 14A
• +5VFP Standby Rail: 4A
• -12V Rail: 0.2A
• Combined +5V and +3.3V Limit: 105W maximum

Connectors

• P1: (1) 24-Pin ATX Main Motherboard Power Connector
• P2: (1) 4-Pin ATX12V Processor Power Connector
• P4: (1) 4-Pin FDD / Berg Drive Power Connector
• P5 / P6: (2) 15-Pin SATA Power Connectors

The harness does not include a dedicated 6-pin or 8-pin PCIe graphics-power connector or a conventional large 4-pin peripheral Molex connector. Fixed-cable lengths and routing may vary slightly by production revision.

Interchangeable / Replacement Part Numbers

OEM Service / DPN References: M619F, 0M619F, CN-0M619F, M618F, 0M618F, CN-0M618F, D233N, 0D233N, CN-0D233N

Manufacturer Model / Assembly References: H235PD-01, HP-D2353P0, HP-D2353P0 01LF, D235PD-00, D235PD-01, DPS-235DB A, DPS-235DB-A, DPS-235DBA, B235PD-00, CDE0235P5WA

Leading-zero and CN-0 label formats identify the same service number. Spaces and hyphens in DPS-235DB A may vary by label or catalog formatting.

⭐ Related Parts and Cross-Sell

➕ 121565-001 - 6 FT NEMA 5-15P to IEC C13 Power Cable for Desktops Monitors Servers UPS and IT Equipment

The linked grounded North American IEC C13 power cord fits this unit’s IEC C14 AC inlet and is sold separately.

✅ Confirmed Compatibility

Compatibility is chassis- and power-configuration-specific. Verify the original PSU label, housing, mounting points, and connector harness before ordering. Not every chassis sold under the same system family uses this 235W supply.

✔️ OptiPlex 360 Desktop (DT): 235W configuration
✔️ OptiPlex 360n Desktop (DT): 235W configuration
✔️ DCNE / DCNE1F Regulatory Chassis: When originally equipped with this 235W Desktop PSU family
✔️ OptiPlex 380 Desktop (DT): 235W non-EPA / manual-voltage-selector configuration only
✔️ OptiPlex 380n Desktop (DT): Applicable 235W non-EPA configuration only
✔️ OptiPlex 380FLX Desktop (DT): Applicable 235W non-EPA configuration only
✔️ OptiPlex 380FLX-HD Desktop (DT): Applicable 235W non-EPA configuration only

☑️ Key Features

☑️ Genuine OEM 235W replacement power supply
☑️ Exact M619F / H235PD-01 Desktop chassis family
☑️ Standard 24-pin ATX and 4-pin ATX12V motherboard connections
☑️ Two SATA drive-power connectors plus one FDD / Berg connector
☑️ Fixed non-modular harness for direct factory-style cable routing
☑️ Integrated cooling fan and standard IEC C14 AC inlet
☑️ Multiple verified service and manufacturer references for easier part matching

⚙️ Fit Notes

• Designed for the Desktop / DT chassis only. It does not fit Mini Tower or Small Form Factor chassis.
• Some 380 Desktop configurations use a different 255W EPA supply. Match the original 235W label or one of the interchangeable part numbers above.
• Do not substitute the physically different H235PD-02 or other 235W Small Form Factor supplies.
• The 255W and 280W power-supply families are higher-wattage alternatives and are not part of this exact 235W interchangeable list.
• This unit is internal and non-hot-swap. It is not intended as a universal aftermarket ATX supply.
• Some production revisions include a manual AC-voltage selector. Confirm the selector is set for local mains power before connecting AC.
• No dedicated PCIe graphics-power connector is included. Confirm the system’s expansion-card power requirements.
• The IEC C13 wall-power cable is sold separately through the live cross-sell link above.
• Before installation, shut down the computer, disconnect AC power, and hold the power button briefly to discharge residual power.
