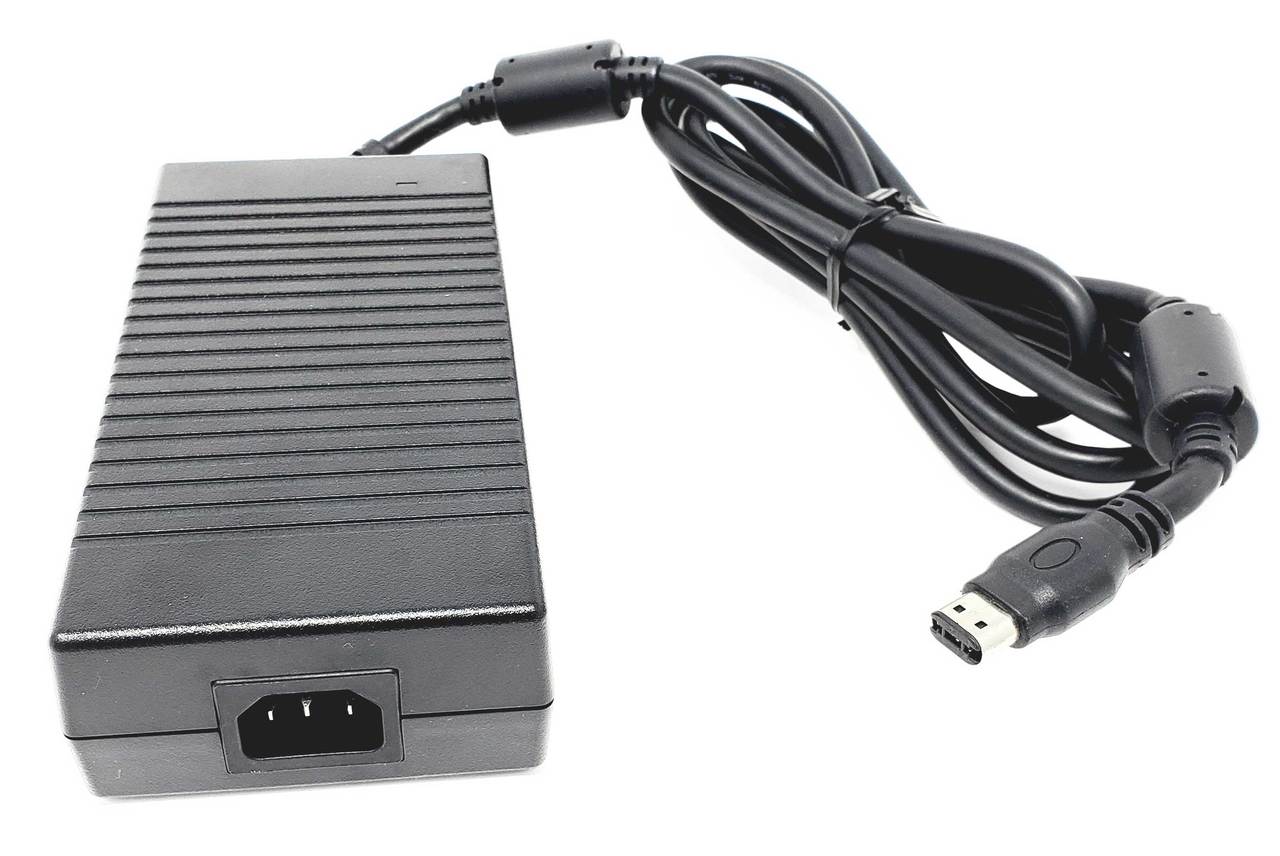

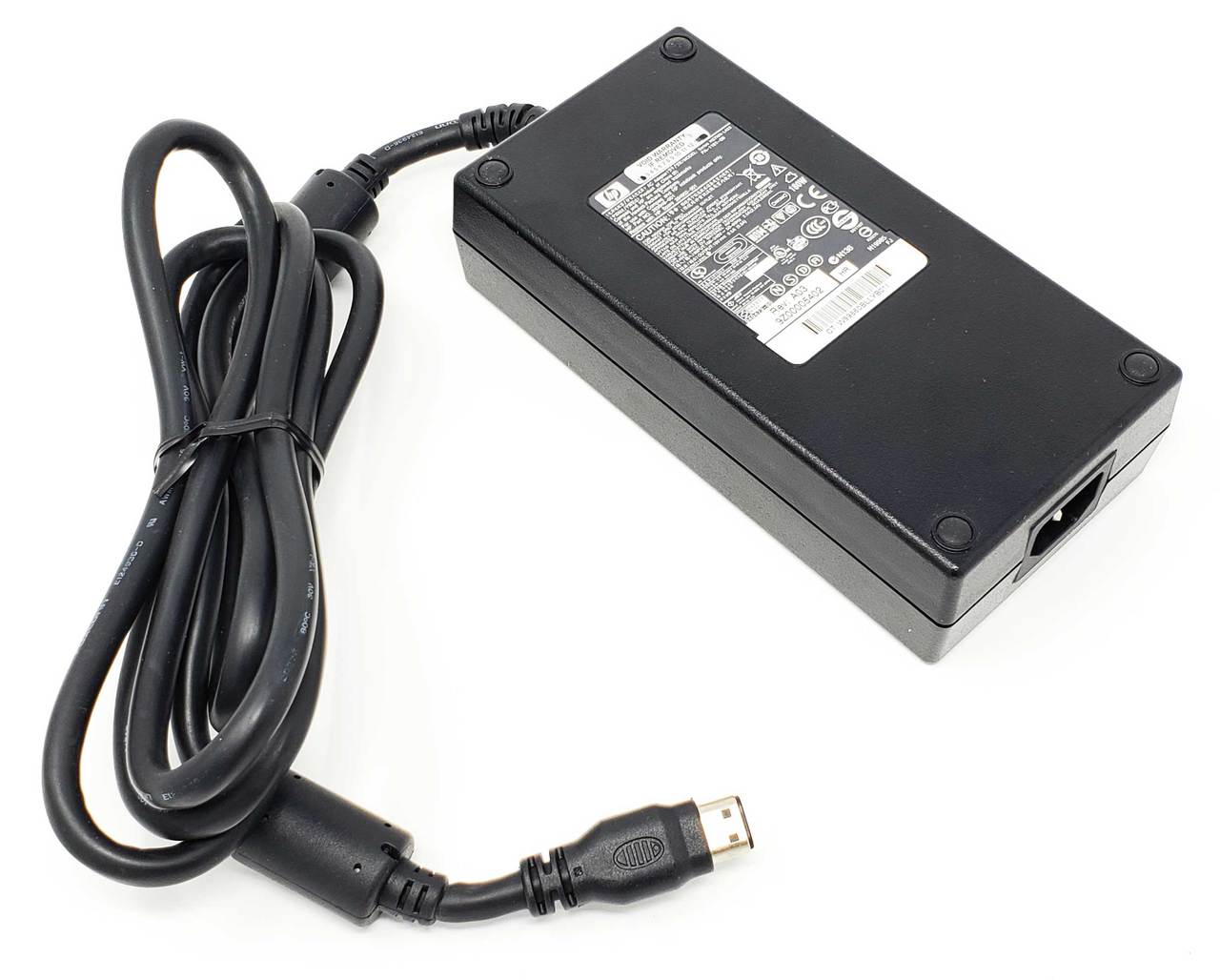

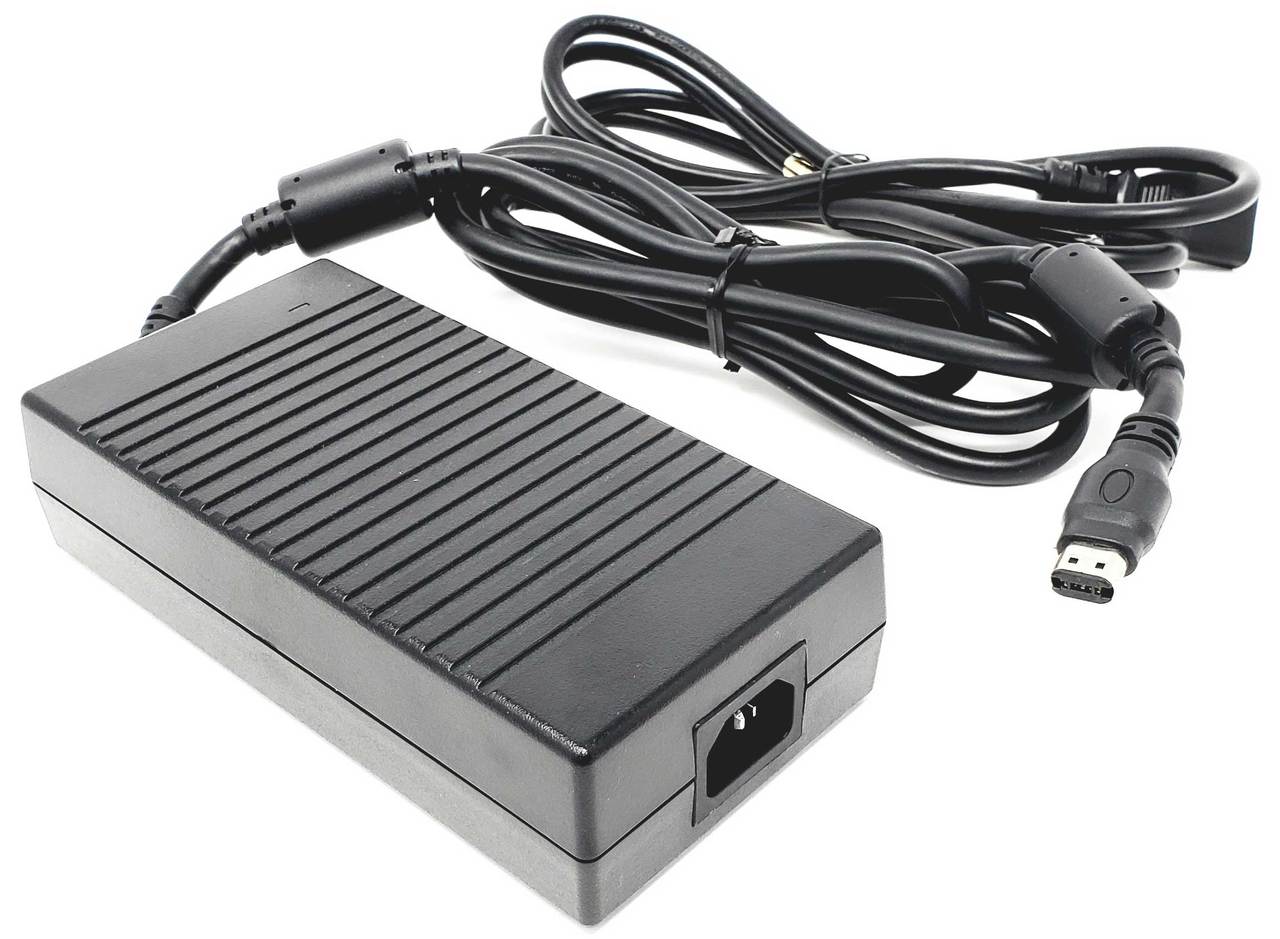

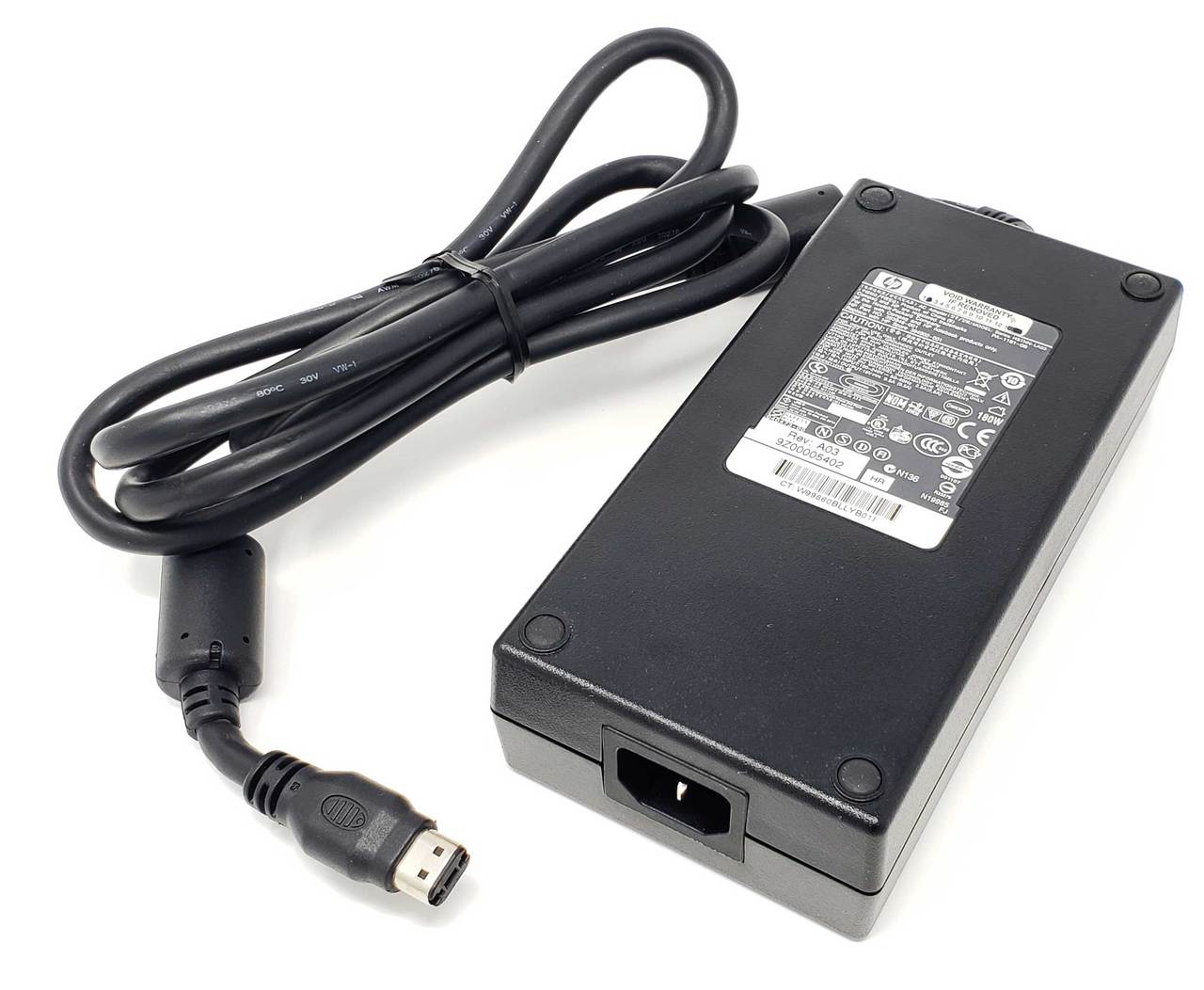

This 180W AC adapter supplies 19V at 9.5A to compatible performance notebooks that use the proprietary oval multi-pin power connector. It replaces the interchangeable adapter and service part numbers listed below and supports select Pavilion, Presario, and Business Notebook systems.
DR911A, DR911A#ABA, DC688A, EG413AA, HSTNN-LA03, HSTNN-DA03, HSTNN-SA03, 374743-001, 393948-001, 393948-004, 394902-001, 344500-001, 344500-003, 344500-004, 366165-001, ADP-180EBB, ADP-180EB B, PA-1181-08, PA-1181-08H
All part numbers listed above identify compatible 180W 19V 9.5A adapter revisions using the same oval-tip connection. Cosmetic appearance, label layout, cord length, and manufacturer markings may vary between interchangeable revisions.
This adapter uses a standard grounded IEC C13 power cable with a NEMA 5-15P plug for North American wall outlets.
Purchase a 6 FT NEMA 5-15P to IEC C13 AC Power Cable
Compatibility depends on the system’s original power requirements and connector configuration. Confirm that the notebook requires 19V DC, supports a 180W adapter, and uses the proprietary oval multi-pin connector.
✔️ Pavilion ZD8000 Series: ZD8000, ZD8001, ZD8002, ZD8003, ZD8004, ZD8005, ZD8007, ZD8008, ZD8009, ZD8010, ZD8011, ZD8015, ZD8017, ZD8019, ZD8020, ZD8030, ZD8043, ZD8044, ZD8045, ZD8047, ZD8048, ZD8050, ZD8051, ZD8052, ZD8053, ZD8054, ZD8055, ZD8060, ZD8070, ZD8072, ZD8075, ZD8076, ZD8078, ZD8079, ZD8080 and compatible regional suffix configurations
✔️ Pavilion ZD8100 Series: Select ZD8100 configurations originally equipped with the 180W oval-tip adapter
✔️ Pavilion ZD8200 Series: Select ZD8200 configurations originally equipped with the 180W oval-tip adapter
✔️ Pavilion ZD8300 Series: Select ZD8300 configurations originally equipped with the 180W oval-tip adapter
✔️ Pavilion ZD8400 Series: Select ZD8400 configurations originally equipped with the 180W oval-tip adapter
✔️ Pavilion ZV6000 Series: ZV6000, ZV6100 and ZV6200 configurations requiring the 180W oval-tip adapter
✔️ Presario X6000 Series: X6000, X6100 and compatible X6000-series configurations requiring the 180W oval-tip adapter
✔️ Presario R4000 Series: R4000, R4100 and R4200 configurations requiring the 180W oval-tip adapter
✔️ Business Notebook NX9600: NX9600 configurations originally supplied with the 180W three-wire oval-tip adapter
☑️ High-capacity 180W output for compatible performance notebooks
☑️ Supplies regulated 19V DC at up to 9.5A

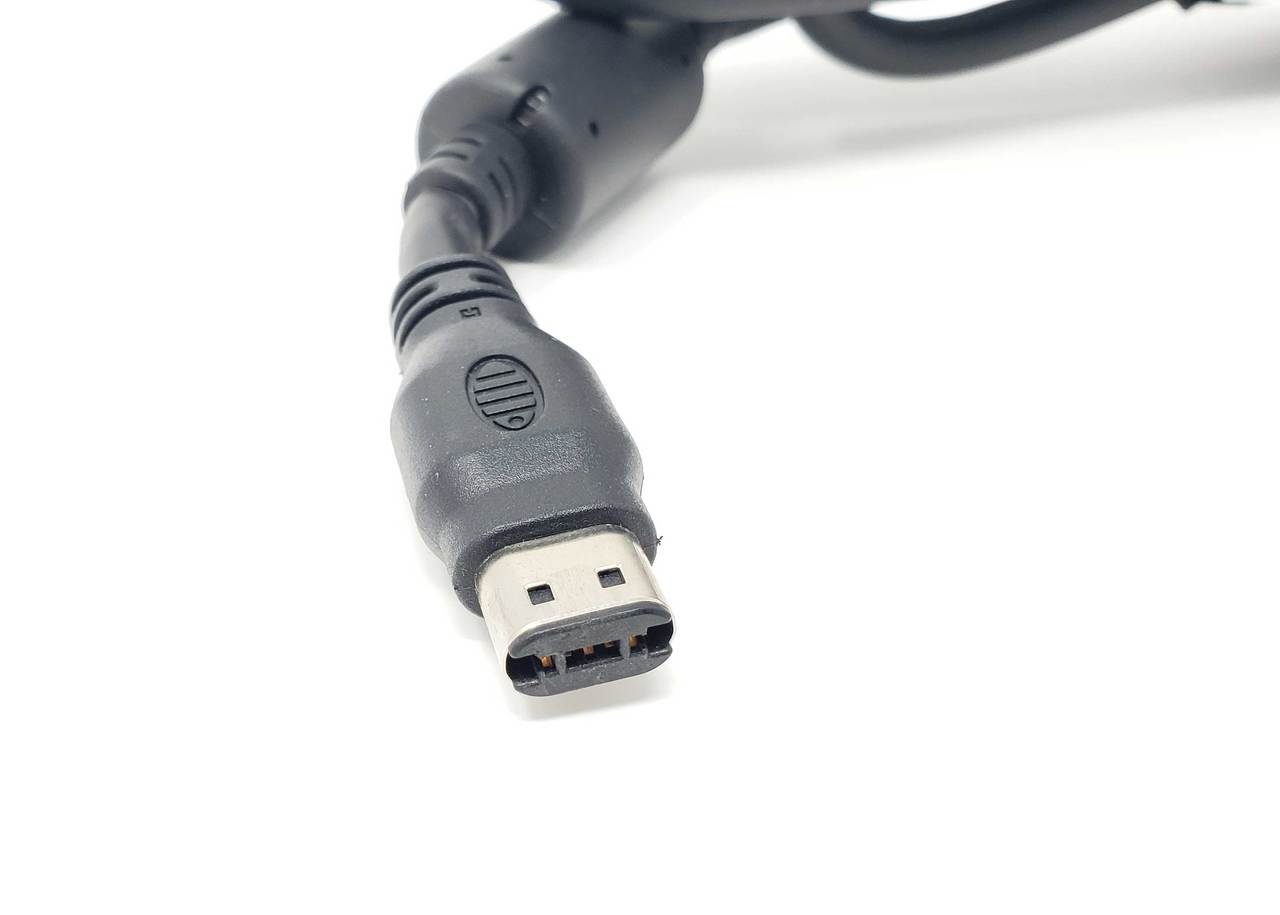

☑️ Proprietary oval connector for supported legacy systems
☑️ Replaces multiple service numbers and manufacturer model numbers
☑️ Universal 100-240V AC input supports domestic and international operation
☑️ Grounded IEC C14 inlet accepts a replaceable IEC C13 power cable
☑️ Suitable as a primary replacement adapter or additional stationary charger
✓ Confirm the original adapter requires 19V DC at 9.5A and uses the same oval multi-pin connector.
✓ This adapter is not interchangeable with conventional round barrel, center-pin, USB-C, or rectangular-tip chargers.
✓ Some systems within the listed families were sold with different wattage adapters. Match the original adapter label and connector before ordering.
✓ A lower-wattage adapter may not operate or charge a high-performance configuration correctly under load.

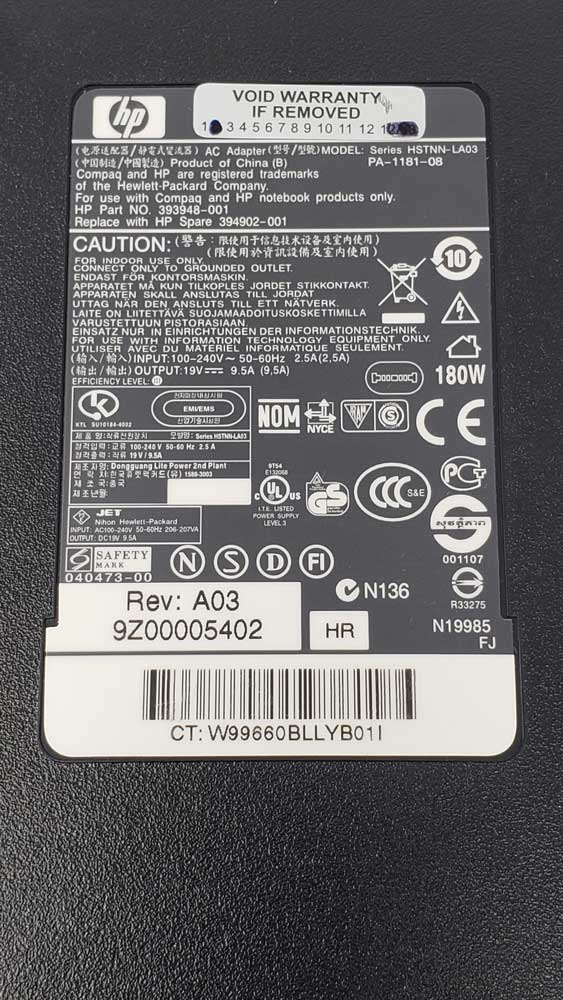

✓ Do not rely on the HSTNN-LA03 regulatory marking alone because that marking also appears on adapters with other connector styles. The output rating and physical tip must match.
✓ The adapter has an IEC C14 inlet and uses an IEC C13 power cable. Power-cable plug style must match the destination country.
