HP DR911A - 180W 19V 9.5A Oval Tip AC Adapter for ZD8000 X6000 NX9600

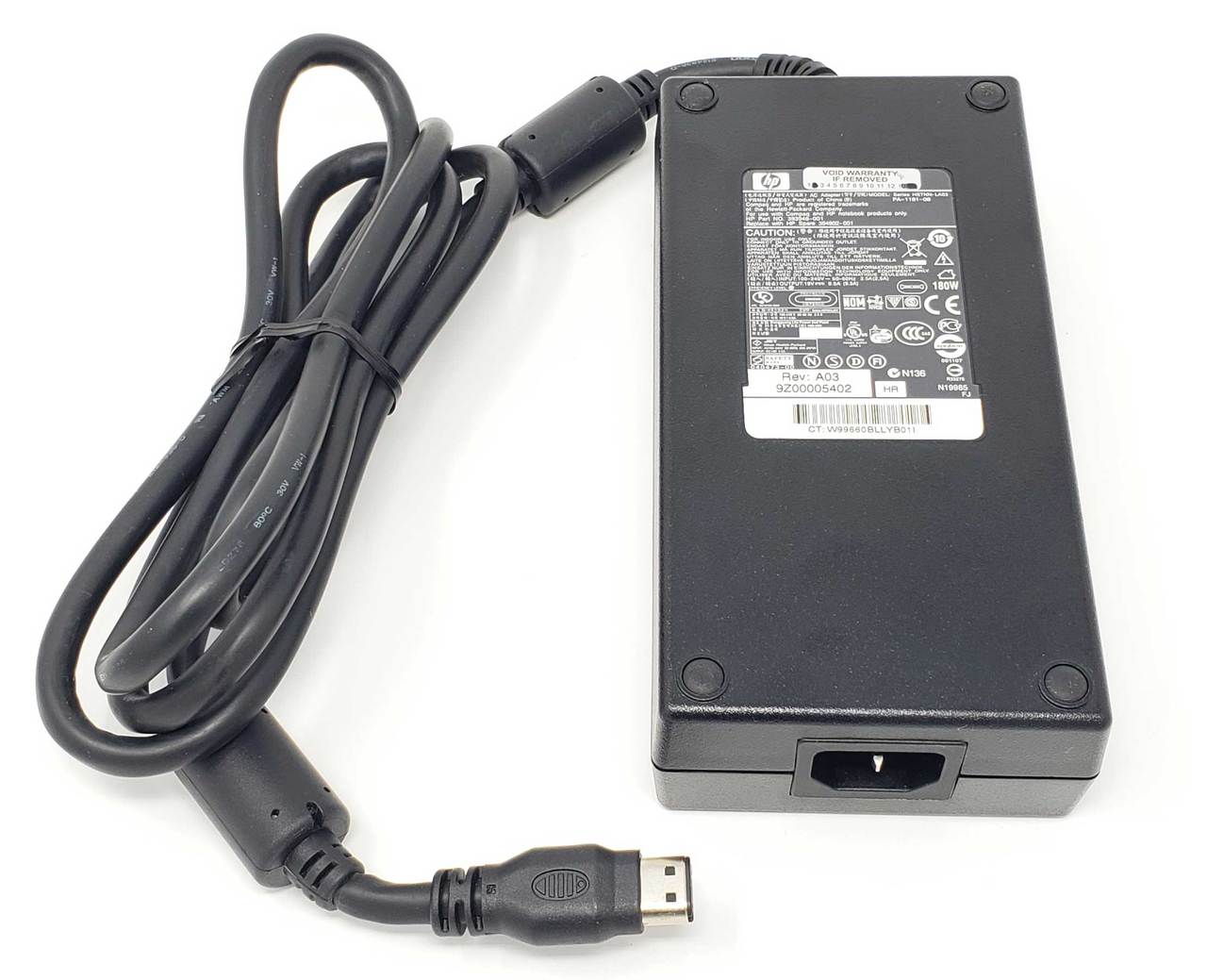

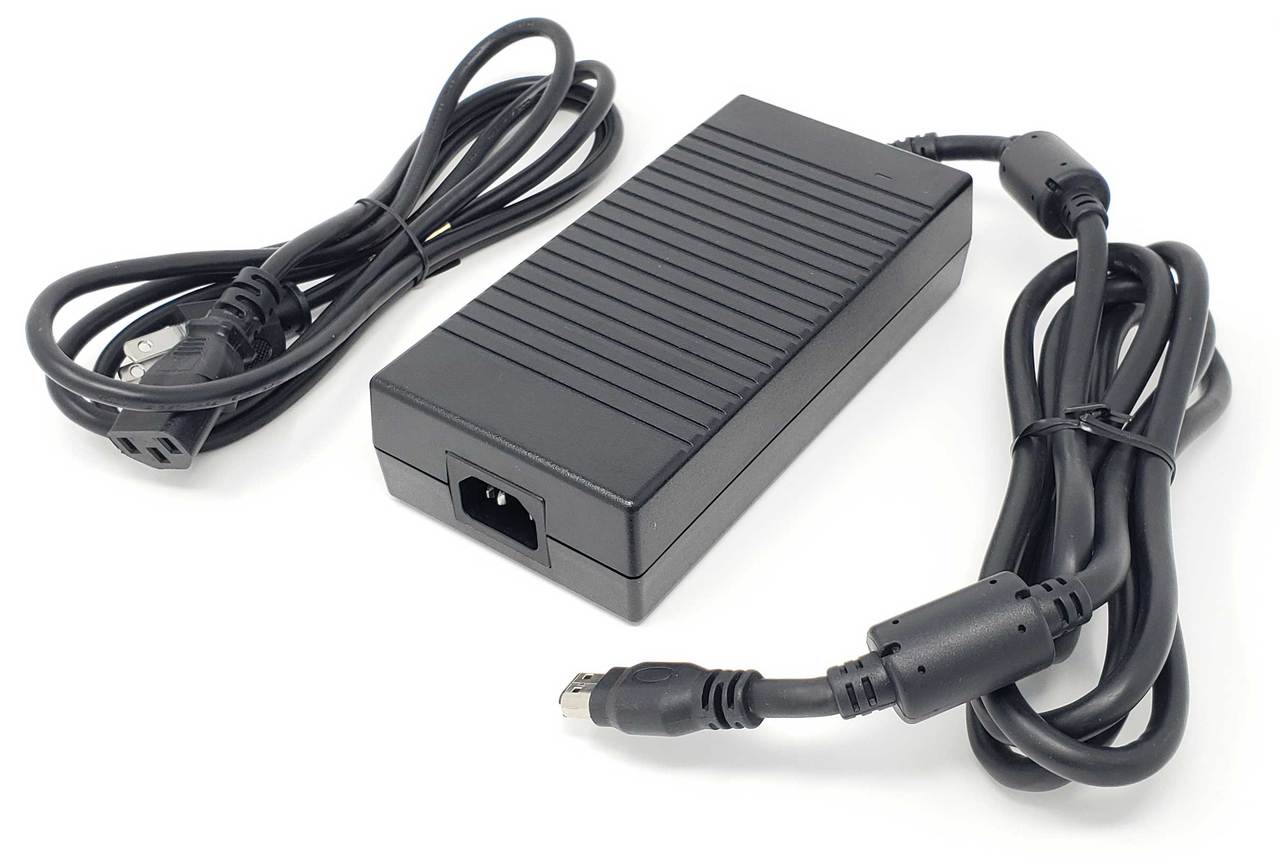

HP 180W 19V 9.5A Oval Tip AC Adapter

The HP 180W 19V 9.5A Oval Tip AC Adapter is a high-power replacement charger designed for select HP Pavilion, Compaq, and Business-class notebooks requiring the oval-tip connector. With 180 watts of output, it supports performance-class notebooks with powerful CPUs and dedicated graphics.

Technical Specifications

• Wattage: 180W
• Voltage: 19V
• Current: 9.5A
• Connector Tip: Oval tip (specific to compatible HP laptops)
• Adapter Type: AC Adapter / Power Supply

Interchangeable Part Numbers / Identifiers

DC688A, DR911A, EG413AA, 393948-001, HSTNN-SA03, 394902-001, 344500-001, 344500-004, 344500-003, HSTNN-LA03, HSTNN-DA03, 374743-001, ADP-180EBB, 366165-001, PA-1181-08H, PA-1181-08

(All part numbers above represent the same 180W 19V 9.5A oval-tip AC adapter, fully interchangeable.)

✔ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on the laptop’s power requirements and connector type. Always confirm voltage, amperage, and connector type before purchase.

✔ HP Pavilion ZD8000 Series
✔ HP Pavilion X6000 Series
✔ HP Pavilion NX9600 Series
✔ HP Pavilion ZV6000 Series
✔ HP Compaq X1000/X6000 Series (select models with 180W requirement)
✔ HP Business-class notebooks requiring 180W oval tip adapter

Key Features

☑ 180W high-power output for performance laptops with dedicated graphics
☑ Oval tip connector ensures proper fit with supported models
☑ Compatible across all listed interchangeable part numbers
☑ Provides stable and efficient charging for demanding systems

Fit Notes

• Only compatible with laptops that specifically use the oval tip connector.
• Not suitable for round-tip or smart-pin connectors.
• Always match the voltage (19V) and amperage (9.5A) with your system requirements before installation.
• Replaces multiple HP and Compaq AC adapter part numbers (see interchangeable list above).
