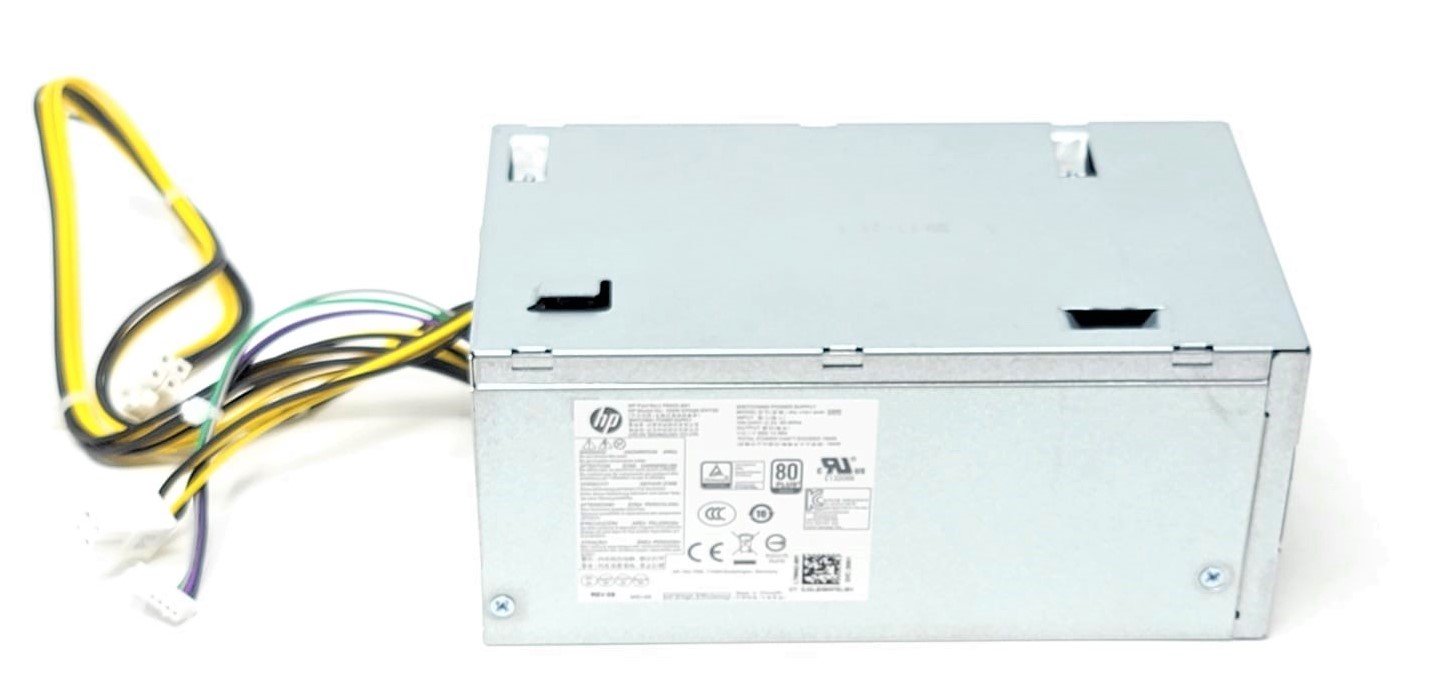

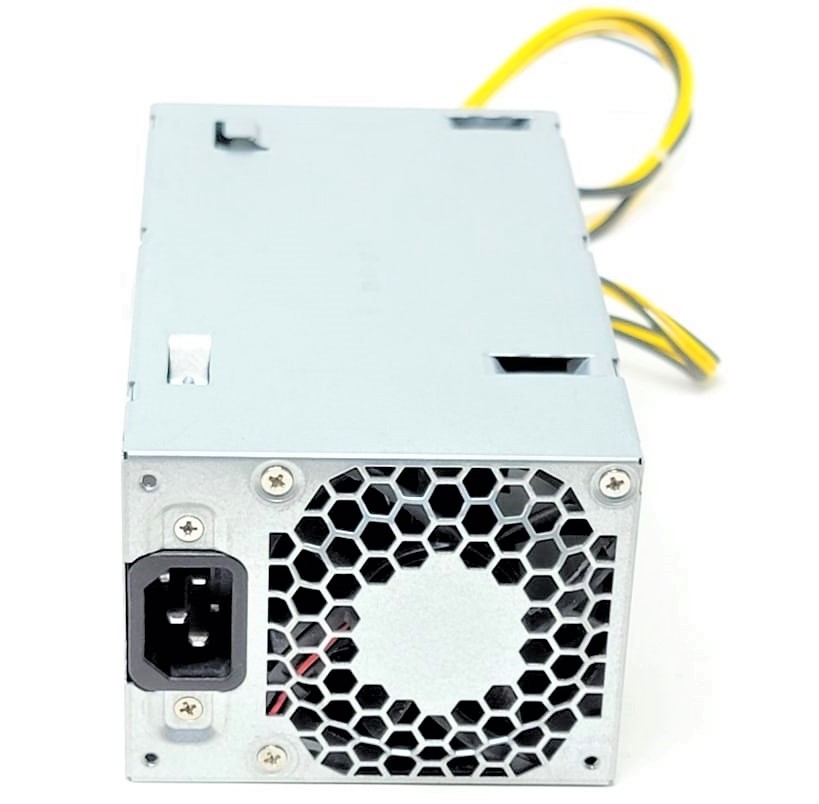

180W EPA90 ENT20 Power Supply for 280 288 G6 G8 MT Envy TP01
Genuine OEM 180W EPA90 ENT20 internal power supply for compatible desktop tower and compact desktop systems using the matching 180W chassis-specific PSU layout. This Grade A cleaned and fully tested replacement power supply is designed for systems requiring +12.1V output, one 7-pin inline connector, two 4-pin 12V connectors, and the same physical size, cable routing, rear AC plug location, and mounting style.
What’s Included
- Included Item: 1x 180W EPA90 ENT20 internal power supply
- Condition: Genuine OEM, Grade A, cleaned and fully tested
- Power Cord: Not included
Technical Specifications
- Primary Part Number: L70042-001
- Part Type: Internal desktop power supply
- Maximum Output Power: 180W
- Efficiency Class: EPA90 / 80 PLUS style high-efficiency PSU
- Power Supply Family: ENT20
- Form Factor: Chassis-specific internal desktop PSU
- Dimensions: 95mm x 74mm x 165mm
- AC Input Voltage: 100-240V~
- AC Input Current: 2.3A
- Frequency: 50-60Hz
- DC Output +12.1V: 14.88A
- Installation Type: Internal screw-mounted desktop PSU
- Application Type: Desktop tower / compact desktop power supply replacement
Connector & Cable Layout
- P2 Connector: 7-pin inline connector
- P2 Cable Length: Approx. 5.25"
- P1 Connector: 4-pin 12V connector
- P1 Cable Length: Approx. 14"
- P3 Connector: 4-pin 12V connector
- P3 Cable Length: Approx. 25.5"
- AC Power Input: Standard C13 AC power cable required, sold separately
- Important Connector Note: Match the original 7-pin inline connector, dual 4-pin connector layout, wire routing, and cable lengths before ordering
Interchangeable / Replacement Part Numbers
HK280-85PP, HK280-85PP S1, D19-180P1A, L70042-001, L70042-002, L70042-004, L70042-006, L70042-011, PA-1181-6HK
Required Power Cable Sold Separately
This power supply requires a standard C13 AC power cable, sold separately: 121565-004 6 ft C13 Power Cable
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s chassis style, original power supply part number, connector layout, wattage, rear AC plug location, mounting points, and internal cable routing. It’s essential to verify compatibility with your desktop model and original PSU label before installation.
✔ 280 MT Models: 280 G6 MT, 280 G8 MT
✔ 288 MT Models: 288 G6 MT, 288 G8 MT
✔ ZHAN 99 Pro A G4 Models: ZHAN 99 Pro A G4 MT, ZHAN 99 Pro A G4 SFF
✔ Envy Desktop Models: Envy TP01-1144 and matching TP01 configurations using this 180W EPA90 ENT20 PSU family
✔ Compatible 180W ENT20 Configurations: Desktop systems originally equipped with the same L70042 / HK280-85PP / D19-180P1A / PA-1181-6HK power supply family and matching 7-pin inline plus dual 4-pin connector layout
☑️ Key Features
☑️ Genuine OEM Power Supply
☑️ Grade A, cleaned, and fully tested
☑️ Includes warranty
☑️ 180W EPA90 ENT20 replacement power supply
☑️ +12.1V 14.88A DC output
☑️ Includes one 7-pin inline connector and two 4-pin 12V connectors
☑️ Compact 95mm x 74mm x 165mm chassis-specific PSU size
☑️ Supports 100-240V AC input for broad regional compatibility
☑️ Useful replacement for failed, noisy, intermittent, no-boot, or no-power power supplies
☑️ Direct-fit replacement when the original PSU part number, connector layout, wattage, and chassis style match
⚙️ Fit Notes
- Match your original power supply part number whenever possible
- Confirm your original PSU is a 180W EPA90 ENT20 unit
- Confirm your original label shows +12.1V 14.88A output
- Confirm your system uses the same 7-pin inline connector and two 4-pin 12V connectors
- Compare the physical dimensions, rear AC plug location, mounting screw points, fan/vent orientation, and cable routing before ordering
- This PSU is chassis-specific and should not be treated as a universal ATX power supply
- This unit is not intended for systems requiring a 200W, 250W, 260W, 280W, 300W, or higher-wattage PSU unless the original part number and connector layout match
- This power supply requires a standard C13 AC power cable, sold separately
