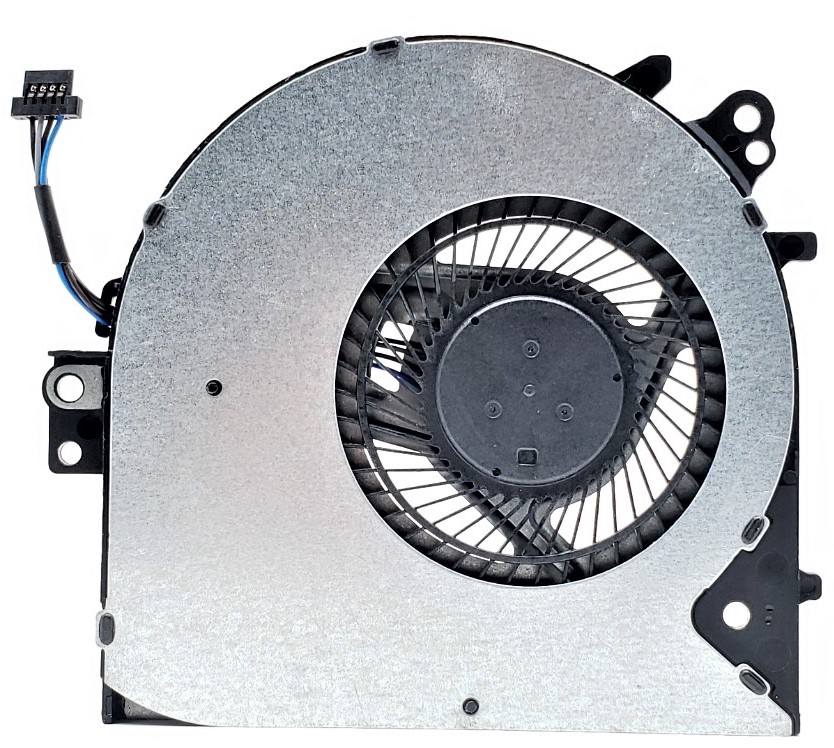

DC5V 0.5A 4-Pin CPU Cooling Fan for HP ProBook 450 G5 455 G5 470 G5
Replacement CPU cooling fan for compatible HP ProBook G5 series laptops. This fan features a 4-pin connector with a 4-wire cable and is designed to match the original mounting and electrical specifications for supported systems.
Technical Specifications
- Voltage: DC 5V
- Current: 0.5A
- Fan/Model Code: OFJNC0000H
- Connector: 4-Pin
- Cable Wires: 4-Wire
- Cable Length: 26mm (approx.)
- Dimensions: 84mm x 84mm x 6mm (approx.)
- Screw Type: M2.5
Interchangeable / Replacement Part Numbers
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ HP ProBook 450 G5: 450 G5 Notebook PC
✔️ HP ProBook 455 G5: 455 G5 Notebook PC
✔️ HP ProBook 470 G5: 470 G5 Notebook PC
☑️ Key Features
- Direct replacement CPU cooling fan for HP ProBook G5 series
- 4-pin 4-wire connector design
- Matches listed 5V 0.5A electrical rating
- Slim 6mm profile to fit the original heatsink/fan assembly space
- Uses standard M2.5 mounting screw type
⚙️ Fit Notes
- Please match your original fan part number (L00843-001 or L03854-001) and the fan code (OFJNC0000H) before ordering.
- If you are servicing the heatsink, we recommend cleaning old thermal compound and reapplying a high-quality paste such as Shin-Etsu G751.
