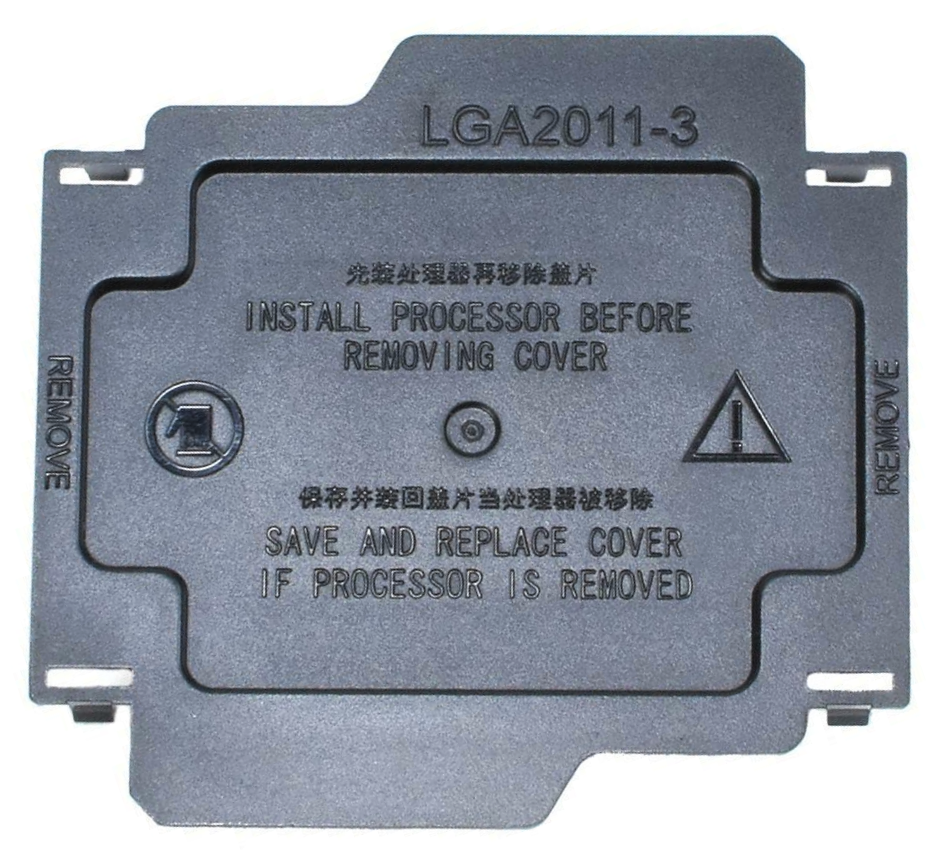

Intel LGA2011-3 Socket R3 CPU Dust Protector Cover 1-2229348-1 105275-0004

This reusable LGA2011-3 CPU socket dust cover protects the exposed 2,011-contact field of an empty Socket R3 motherboard during storage, shipping, assembly, testing, repair, and processor replacement.

The cover attaches to the motherboard’s installed loading mechanism and is designed to be saved and reinstalled whenever the processor is removed. The documented cover geometry is used with validated square and narrow LGA2011-3 loading mechanisms. Manufacturer logo, molded text, color shade, and minor cosmetic details may vary depending on available inventory.

Technical Specifications

• Product Type: CPU socket dust cover / reusable ILM protective cover
• CPU Medics Item Number: CPU-LGA2011-3
• Socket Platform: LGA2011-3 / LGA2011-v3 / Socket R3
• Contact Count: 2,011 positions
• Supported ILM Styles: Validated LGA2011-3 square and narrow loading mechanisms
• Verified Catalog Part Number: 1-2229348-1
• Verified Cover Component Reference: 105275-0004
• Processor Platforms: Haswell-E, Broadwell-E, Haswell-EP, and Broadwell-EP
• Supported Chipsets: X99 and C612 motherboards equipped with Socket R3
• Material: Molded engineering thermoplastic; documented component versions use polycarbonate
• Color: Black or dark gray
• Flammability Rating: V-0
• Maximum Center Removal Force: 7.6 N under the documented cover design requirement
• Installation: Orientation-keyed, tool-free snap-on attachment
• Reusable: Yes
• Function: Protects the vacant socket contact field while the processor is removed
• Included: One LGA2011-3 CPU socket dust cover
• Not Included: Motherboard, processor socket, loading mechanism, backplate, processor, heatsink, or installation hardware

⭐ High-Volume Order Fulfillment

CPU Medics specializes in high-volume sourcing and fulfillment for CPU socket covers and related server components. We can fulfill orders of any size, including requirements exceeding 100,000 units.

Buy with confidence. For very large orders, scheduled releases, production programs, specific molded markings, or custom packaging and quantity requirements, contact us so we can coordinate availability, packaging, quantities, and delivery.

Interchangeable / Replacement Part Numbers

Verified cover-level identifiers:

1-2229348-1, 105275-0004, CPU-LGA2011-3

Common ordering, service, and socket references:

LGA2011-3, LGA2011-v3, LGA2011-V3, LGA20113, SKT-R LGA2011-3, Socket R3

• 1-2229348-1 is the verified supplier catalog number whose official description is “ILM DUST COVER LGA2011-3.” The original catalog currently classifies this number as obsolete, but it remains a valid cross-reference for existing inventory.
• 105275-0004 is the verified ILM-cover component reference shown in both square and narrow LGA2011-3 assembly drawings.
• CPU-LGA2011-3 is the CPU Medics item number.
• The remaining identifiers are common socket, marketplace, and service references—not separate engineering designs.

No additional standalone loose-cover ordering number could be verified for the other validated socket suppliers. Their published numbers identify complete loading mechanisms rather than the removable dust cover by itself.

Related square-ILM assembly references—not cover-only part numbers:

G63449-005, PT44L11-4711, 2229339-2, AZIF0018-P001C, ITLG63449001, 105274-2000

Related narrow-ILM assembly references—not cover-only part numbers:

G43051-006, PT44L12-4711, 2229339-1, AZIF0019-P001C, ITLG43051002, 105274-1000

Related ILM and backplate kit references—not cover-only part numbers:

2-2134533-1, 105274-1200, 105274-2200, PT44A12-4711

These related numbers can help identify compatible hardware, but they represent complete loading mechanisms or kits containing additional components. They should not be treated as direct loose-cover part numbers.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility is determined by the motherboard’s installed LGA2011-3 / Socket R3 loading mechanism—not by the system name or 2,011-contact count alone. Always verify the original cover marking, socket generation, motherboard documentation, and physical attachment geometry.

✔️ General Socket R3 Support: Motherboards equipped with a validated LGA2011-3 square or narrow loading mechanism compatible with cover 1-2229348-1 / component reference 105275-0004
✔️ Core i7 Haswell-E Processors: Core i7-5820K, i7-5930K, i7-5960X
✔️ Core i7 Broadwell-E Processors: Core i7-6800K, i7-6850K, i7-6900K, i7-6950X
✔️ Xeon E5 Workstation and Server Platforms: Matching LGA2011-3 motherboards designed for Xeon E5-1600 v3/v4, E5-2600 v3/v4, and E5-4600 v3/v4 processor families
✔️ Intel S2600WT Server Boards: S2600WT2, S2600WTT, S2600WT2R, S2600WTTR, S2600WTTS1R
✔️ Intel S2600CW Server Boards: S2600CW2, S2600CWT, S2600CW2R, S2600CWTR, S2600CW2SR, S2600CWTSR
✔️ Intel S2600KP and S2600TP Platforms: S2600KPR, S2600KPFR, S2600KPTR, S2600TPR and matching HNS2600KP/HNS2600TP compute-module configurations
✔️ Supermicro X10 Single-Socket Boards: X10SRA, X10SRA-F, X10SRH-CF, X10SRH-CLN4F, X10SRi-F, X10SRL-F, X10SRM-F, X10SRM-TF
✔️ Supermicro X10 Dual-Socket Boards: X10DAi, X10DAC, X10DAX, X10DAL-i, X10DRG-Q, X10DRG-QT, X10DRH-iT, X10DRi, X10DRi-T, X10DRL-i, X10DRL-CT, X10DRW-i, X10DRW-iT
✔️ ASUS X99 Motherboards: X99-A, X99-A/USB 3.1, X99-A II, X99-DELUXE, X99-DELUXE II, X99-E, X99-E-10G WS, X99-E WS, X99-E WS/USB 3.1, X99-M WS, X99-PRO, X99-PRO/USB 3.1, X99-S, SABERTOOTH X99, RAMPAGE V EXTREME, RAMPAGE V EXTREME/U3.1, RAMPAGE V EDITION 10, STRIX X99 GAMING
✔️ ASUS C612 Server and Workstation Boards: Z10PA-D8, Z10PE-D8 WS, Z10PE-D16 WS, Z10PR-D16
✔️ ASRock X99 Motherboards: X99 Extreme3, X99 Extreme4, X99 Extreme4/3.1, X99 Extreme6, X99 Extreme6/3.1, X99 Extreme11, X99 OC Formula, X99 OC Formula/3.1, X99 Taichi, X99 WS, X99 WS-E, X99 WS-E/10G, X99E-ITX/ac, X99M Extreme4, Fatal1ty X99 Professional, Fatal1ty X99 Professional Gaming i7, Fatal1ty X99M Killer
✔️ ASRock Rack C612 Boards: EPC612D4U, EPC612D8, EP2C612D8C, EP2C612D16FM2, EP2C612D16NM-8R, EP2C612D16NM-2T8R, EP2C612D24-4L
✔️ GIGABYTE X99 Motherboards: GA-X99-UD3, GA-X99-UD3P, GA-X99-UD4, GA-X99-UD4P, GA-X99-UD5 WIFI, GA-X99-UD7 WIFI, GA-X99-Gaming 5, GA-X99-Gaming 5P, GA-X99-Gaming G1 WIFI, GA-X99-SOC Champion, GA-X99-SOC Force, GA-X99-SLI, GA-X99-Ultra Gaming, GA-X99-Designare EX, GA-X99-Phoenix SLI
✔️ GIGABYTE C612 Server Boards: MD50-LS0, MU70-SU0 and matching C612 configurations equipped with an LGA2011-3 square or narrow loading mechanism
✔️ MSI X99 Motherboards: X99A Gaming 7, X99A Gaming 9 ACK, X99A Gaming Pro Carbon, X99A Godlike Gaming Carbon, X99A Raider, X99A MPOWER, X99A Workstation, X99A XPower Gaming Titanium, X99S Gaming 7, X99S Gaming 9 AC, X99S SLI Krait Edition, X99S SLI Plus, X99S XPower AC
✔️ EVGA X99 Motherboards: X99 Classified, X99 FTW, X99 FTW K, X99 Micro, X99 Micro2
✔️ TYAN C612 Server Boards: S7082, S7086 and documented Socket R3 configurations
✔️ Dell PowerEdge 13th-Generation Systems: R430, R530, R630, R730, R730xd, R830, T430, T630, C4130, C6320, FC430, FC630, FC830, M630
✔️ Dell Precision Workstations: Precision Tower 5810, Precision Tower 7810, Precision Tower 7910, Precision Rack 7910
✔️ HPE ProLiant Gen9 Systems: ML110 Gen9, ML150 Gen9, ML350 Gen9, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen9, DL180 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, BL460c Gen9, WS460c Gen9
✔️ HP Z-Series Workstations: Z440, Z640, Z840 configurations equipped with LGA2011-3 processors
✔️ Lenovo ThinkStation Workstations: P410, P500, P510, P700, P710, P900, P910
✔️ Lenovo ThinkServer Systems: RD350, RD450, RD550, RD650, TD350
✔️ Lenovo System x and Flex Platforms: System x3500 M5, x3550 M5, x3650 M5, Flex System x240 M5, NeXtScale nx360 M5
✔️ Cisco UCS M4 Platforms: UCS C220 M4, UCS C240 M4, UCS B200 M4, HyperFlex HX220c M4
✔️ Fujitsu PRIMERGY Platforms: RX2530 M1/M2, RX2540 M1/M2, TX2560 M1/M2, CX2550 M1/M2, CX2570 M1/M2
✔️ Service and Manufacturing Applications: Motherboard assembly, system integration, server refurbishment, processor replacement, RMA handling, warehouse storage, testing, transport, recycling, and long-term spare-board protection

☑️ Key Features

☑️ Protects the complete 2,011-contact field while no processor is installed
☑️ Designed specifically for LGA2011-3 / Socket R3 loading mechanisms
☑️ Documented cover component is used with both square and narrow LGA2011-3 ILM assemblies
☑️ Helps protect delicate contacts from dust, packaging material, handling, and accidental contact
☑️ Tool-free snap-on installation and removal
☑️ Molded INSTALL, REMOVE, and handling instructions support correct use
☑️ Reusable design intended to be saved and reinstalled whenever the processor is removed
☑️ Suitable for single-, dual-, and four-socket LGA2011-3 motherboard applications
☑️ Useful for repair facilities, data centers, recyclers, system builders, manufacturers, and spare-parts programs
☑️ Molded logo, color shade, wording, and cosmetic details may vary while maintaining the required LGA2011-3 geometry

⚙️ Fit Notes

✓ Confirm that the motherboard uses LGA2011-3 / LGA2011-v3 / Socket R3 and that the original cover or loading mechanism matches the pictured attachment geometry.
✓ This cover is documented for both validated square and narrow LGA2011-3 loading mechanisms.
✓ This item is not compatible with first-generation LGA2011 / Socket R motherboards, including X79 boards and processors from the Xeon E5 v1/v2 generation. LGA2011 and LGA2011-3 have the same contact count but different mechanical keying.
✓ This item is not compatible with LGA2011-1 server platforms used by certain Xeon E7 systems.
✓ LGA2066/X299 is not included in confirmed compatibility. Although some aftermarket sellers combine LGA2011-3 and LGA2066 in one listing, a released manufacturer document confirming universal cover interchange was not found. Compare the original cover and loading mechanism before considering substitution.
✓ This cover is not compatible with LGA3647, LGA4189, LGA4677, LGA4710, LGA7529, SP3, SP5, SP6, or other socket families.
