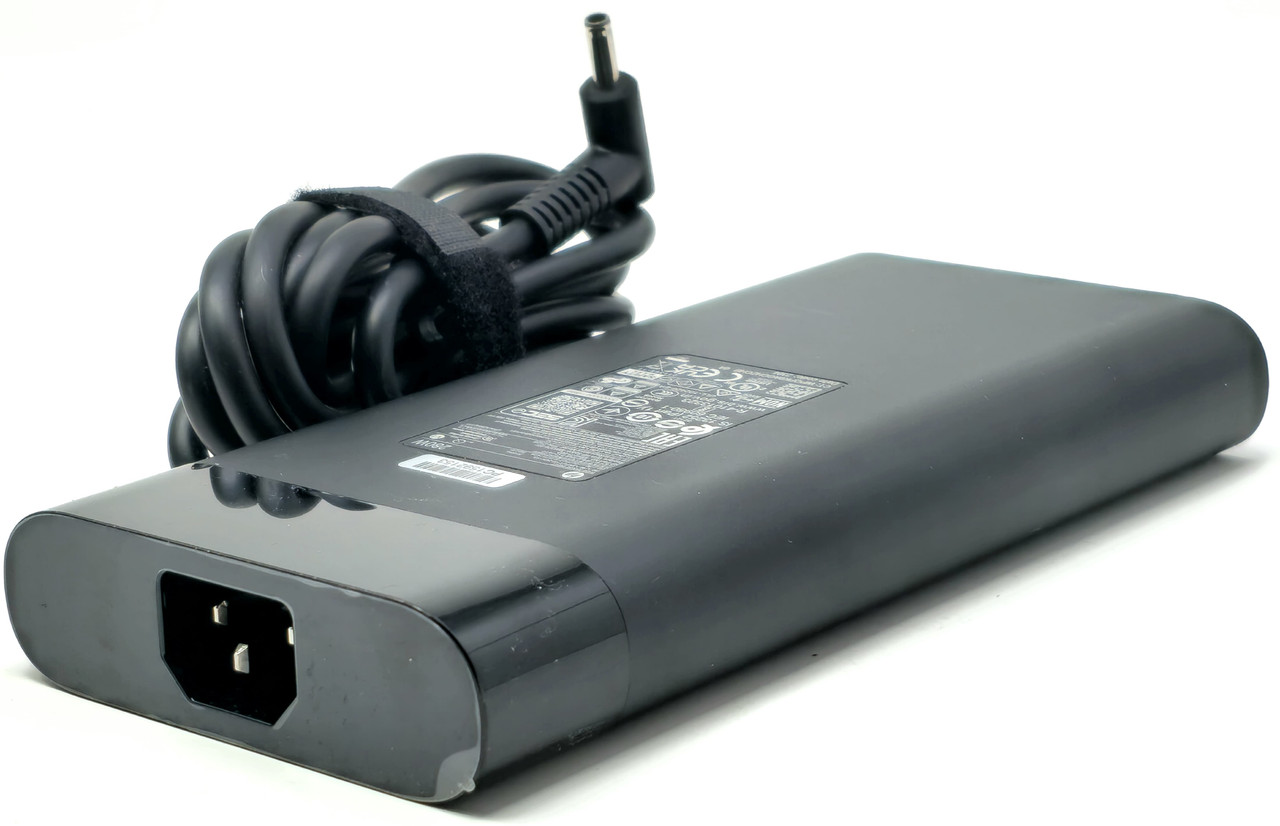

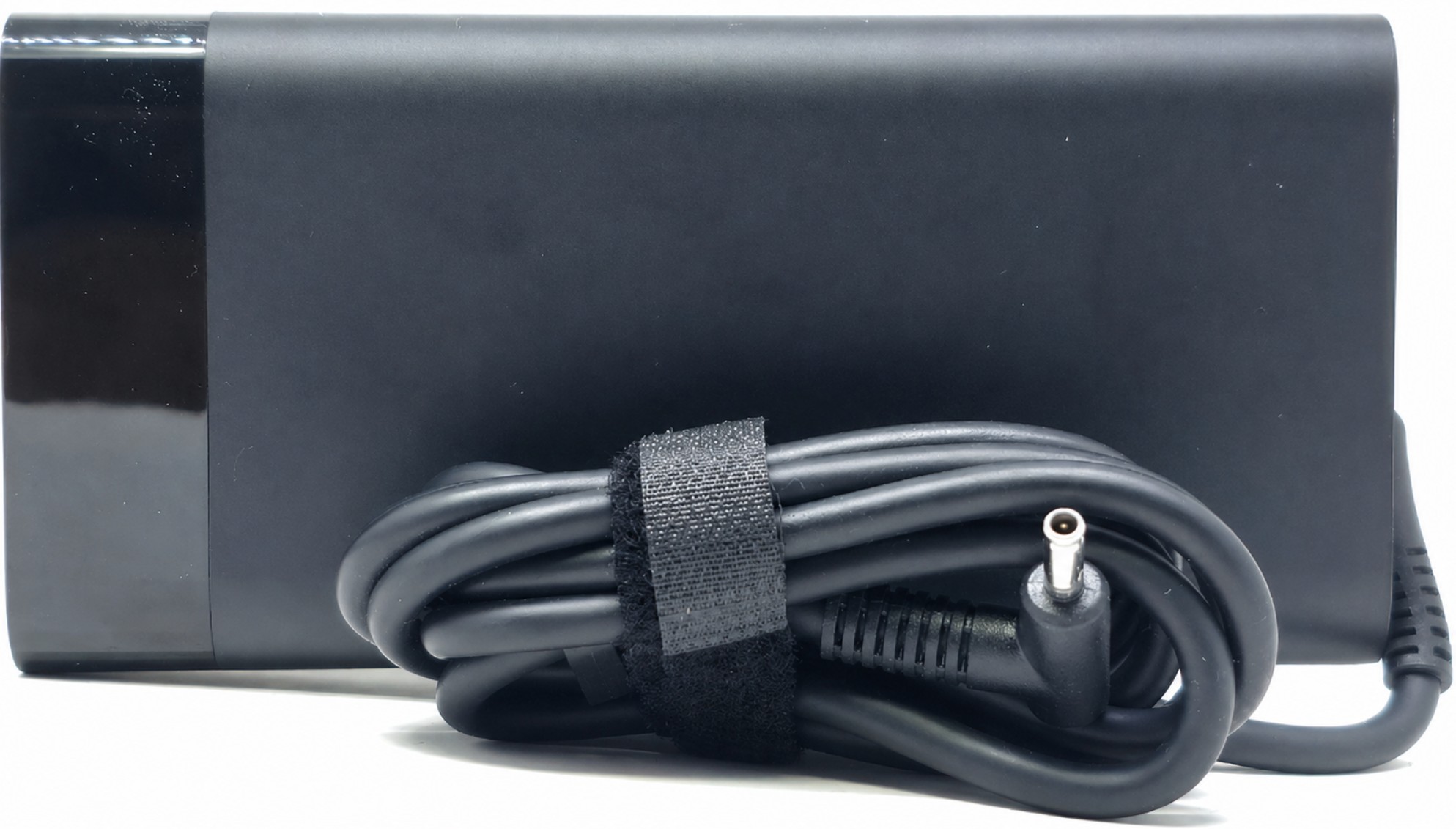

M85389-001 230W 19.5V 11.8A Small 4.5mm Tip AC Adapter for Omen 15 16 17 Victus Gaming

Genuine OEM 230W AC adapter for compatible Omen, Victus, Pavilion Gaming, and workstation-class laptop systems using the small 4.5mm x 3.0mm smart-pin charging connector. This high-output charger provides 19.5V at 11.8A and is designed for gaming and performance laptops that require a 230W small-tip adapter, while also supporting many 200W and 150W small-tip systems when the connector, voltage, and system power requirements match.

What’s Included

• Included Item: 1x 230W 19.5V 11.8A AC adapter

Technical Specifications

• Primary Part Number: M85389-001
• Replacement Spare Number: M41303-001
• OEM Model Number: TPN-LA10
• Lite-On Part Number: PA-1231-08HP
• Part Type: AC adapter / laptop charger
• Maximum Output Power: 230W
• Output Voltage: 19.5V
• Output Current: 11.8A
• Input Voltage: 100-240V~
• Input Current: 3.5A
• Frequency: 50-60Hz
• Connector Type: Small smart-pin barrel connector
• Connector Size: 4.5mm x 3.0mm
• Connector Angle: Right-angle tip
• Tip Color: Gray / light blue / blue small-tip style depending on supplied OEM variant
• AC Inlet Type: IEC C14 inlet for C13 power cable
• Adapter Manufacturer: Lite-On Technology
• Application Type: Gaming laptop, performance notebook, workstation laptop, and high-output AC adapter replacement

Connector Details

• Device Connector: 4.5mm outer / 3.0mm inner barrel connector
• Center Pin: Yes
• Tip Style: Small smart-pin barrel tip
• Connector Shape: Right-angle DC plug
• Compatible Charging Port: 4.5mm small-tip smart-pin charging port
• AC Power Cable Required: Standard C13 AC power cable
• Fit Requirement: Match the original adapter wattage, voltage, tip size, center-pin style, and laptop power requirement before ordering

Interchangeable / Replacement Part Numbers

M85389-001, M41303-001, PA-1231-08HP, TPN-LA10

Required Power Cable Sold Separately

This adapter requires a standard C13 AC power cable, sold separately: M2PNC 3 ft C13 Power Cable

Bulk / Project Orders

Need multiple chargers for a repair center, school, IT department, gaming laptop deployment, refurbishing project, or parts inventory build? Add the quantity needed to your cart and proceed through checkout. Orders of 10+ units are processed with care and shipped promptly from our warehouse.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your laptop’s charging port, original adapter wattage, graphics configuration, BIOS power requirements, and system power profile. It’s essential to verify your original adapter label and confirm the 4.5mm x 3.0mm smart-pin connector before ordering.

✔ Omen 15 Gaming Laptop Models: Omen 15-dc0000, 15-dc1000, 15-dh0000, 15-dh1000, 15-ek0000, 15-ek1000, 15-en0000, 15-en1000 configurations using the 4.5mm small-tip 150W / 200W / 230W adapter family
✔ Omen 16 Gaming Laptop Models: Omen 16-b0000, 16-b1000, 16-c0000, 16-c1000, 16-k0000, 16-k1000, 16-n0000, 16-n1000, 16-wf0000, 16-wf1000, 16-xd0000, 16-xf0000 configurations using the 4.5mm small-tip 230W adapter family
✔ Omen 17 Gaming Laptop Models: Omen 17-an000, 17-an100, 17-cb0000, 17-cb1000, 17-ck0000, 17-ck1000, 17-cm0000, 17-cm1000 configurations using a compatible 4.5mm small-tip high-wattage adapter
✔ Victus 15 Gaming Laptop Models: Victus 15-fa0000, 15-fa1000, 15-fb0000, 15-fb1000, 15-fb2000 configurations using the 4.5mm small-tip adapter family
✔ Victus 16 Gaming Laptop Models: Victus 16-d0000, 16-d1000, 16-e0000, 16-e1000, 16-r0000, 16-r1000, 16-s0000, 16-s1000 configurations using a compatible 4.5mm small-tip 150W / 200W / 230W adapter
✔ Pavilion Gaming 15 Models: Pavilion Gaming 15-cx0000, 15-cx1000, 15-dk0000, 15-dk1000, 15-dk2000, 15-ec0000, 15-ec1000, 15-ec2000 configurations using 4.5mm small-tip high-output adapters
✔ Pavilion Gaming 16 Models: Pavilion Gaming 16-a0000, 16-a1000 configurations using the 4.5mm small-tip 150W / 200W adapter family
✔ Envy Performance Laptop Models: Envy 15-ep0000, 15-ep1000, 16-h0000, 16-h1000 configurations using compatible 4.5mm small-tip high-output power adapters
✔ ZBook / Mobile Workstation Models: ZBook Studio G7, Studio G8, Studio G9, Create G7, Power G7, Power G8, Fury 15 G7, Fury 15 G8 configurations using compatible 4.5mm small-tip 150W / 200W / 230W AC adapters
✔ Compatible 230W Small-Tip Configurations: Systems originally shipped with M85389-001, M41303-001, PA-1231-08HP, or TPN-LA10 230W 19.5V 11.8A 4.5mm smart-pin adapters
✔ Compatible Lower-Watt Small-Tip Configurations: Many systems originally shipped with 150W or 200W 4.5mm x 3.0mm smart-pin adapters can use this 230W adapter when the connector, voltage, and system charging support match

☑️ Key Features

☑️ Genuine OEM 230W AC adapter
☑️ 19.5V 11.8A high-output charging for compatible gaming and workstation laptops
☑️ Small 4.5mm x 3.0mm smart-pin connector
☑️ Right-angle DC plug for compatible charging ports
☑️ Gray / light blue / blue tip style depending on supplied OEM variant
☑️ Supports compatible 230W gaming laptop configurations
☑️ Can replace many 200W and 150W small-tip adapters when the laptop supports the same connector and voltage
☑️ Useful replacement for failed, missing, damaged, intermittent, or underpowered chargers
☑️ Standard C13 AC power cable input
☑️ Direct-fit replacement when the original adapter part number, wattage, voltage, and connector match

⚙️ Fit Notes

• Match your original AC adapter part number whenever possible
• Confirm your original adapter output is 19.5V
• Confirm your laptop supports a 230W / 11.8A adapter if replacing a 230W unit
• Confirm your charging port uses the small 4.5mm x 3.0mm smart-pin connector
• This adapter is for the small 4.5mm tip style, not the larger 7.4mm barrel connector
• This adapter is not for USB-C-only systems
• This adapter is not for 6.3mm, 7.4mm, 7.9mm, rectangular slim-tip, MagSafe-style, or proprietary square-tip systems
• Some gaming laptops were sold with different wattage adapters depending on GPU, CPU, and regional configuration
• A higher-watt small-tip adapter can usually replace a lower-watt small-tip adapter when voltage and connector match, but the laptop will only draw the power it requires
• Systems requiring 280W, 300W, 330W, or higher-output adapters should use the correct higher-watt charger instead
• This adapter requires a standard C13 AC power cable, sold separately
• Always inspect the AC cable, DC cable, connector, and power brick before use; do not use a damaged, frayed, overheated, cracked, or loose-fitting adapter
