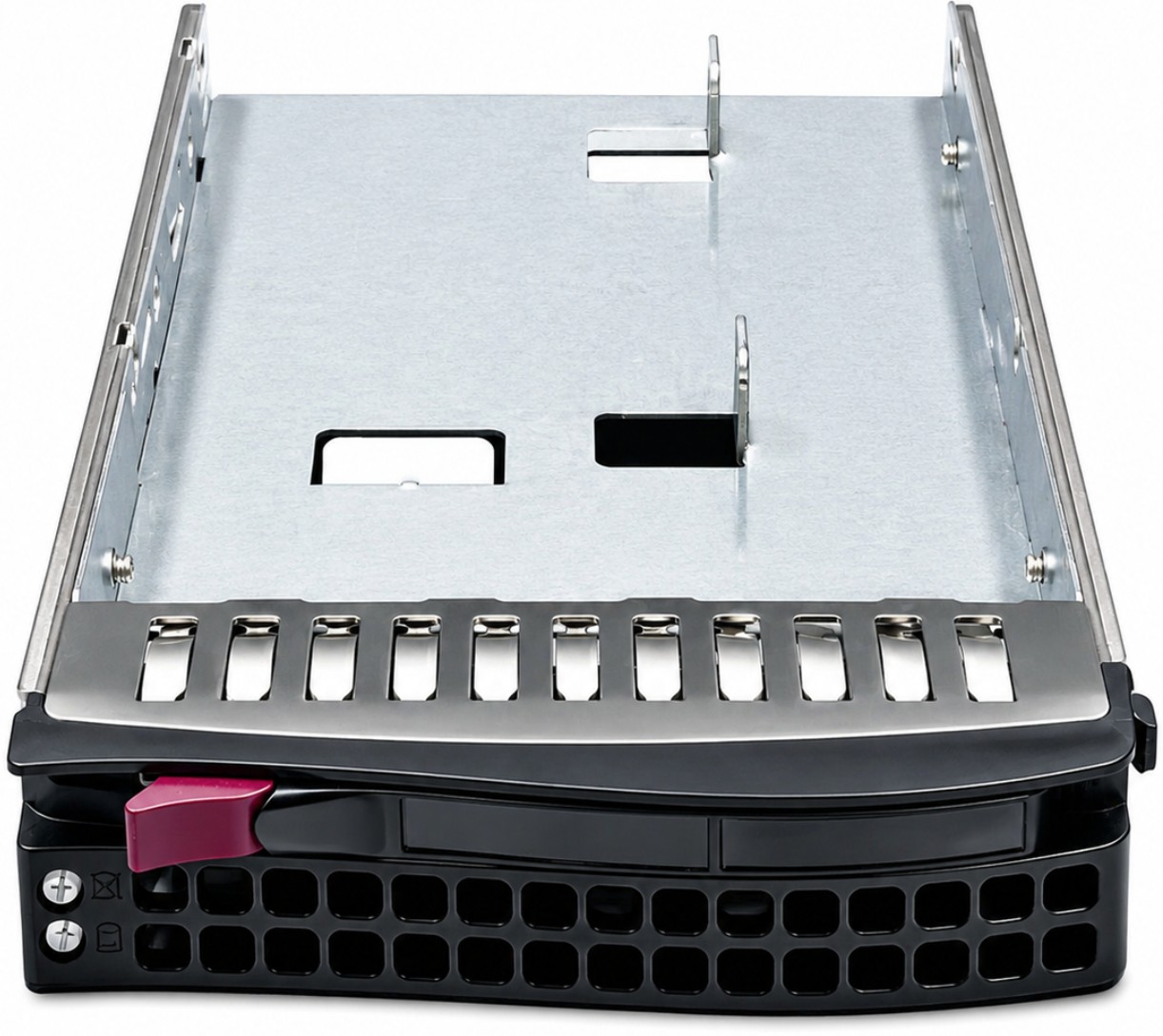

MCP-220-00043-0N Supermicro 3.5" to 2.5" Hot-Swap Drive Converter Caddy Tray

Supermicro 3.5" to 2.5" hot-swap drive converter caddy tray for installing one 2.5" SATA / SAS hard drive or SSD into compatible 3.5" Supermicro hot-swap drive bays. This Gen 4 style converter tray is designed for supported chassis configurations that require proper 2.5" drive positioning, backplane alignment, tray fitment, and front-bay latch compatibility.

What's Included

• Included Item: Caddy tray only
• Not Included: Drive, screws, server, backplane, cables, or additional mounting hardware unless shown

Technical Specifications

• Primary Part Number: MCP-220-00043-0N
• Part Type: 3.5" to 2.5" drive converter caddy tray
• Drive Bay Type: 3.5" hot-swap bay
• Supported Drive Size: 2.5" HDD / SSD
• Supported Drive Interfaces: SATA / SAS, depending on system backplane support
• Tray Generation: Gen 4 style converter tray
• Hot-Swap Support: Yes, when installed in a compatible hot-swap chassis / backplane
• Drive Mounting Style: Screw-mounted 2.5" drive installation
• LED Support: Lightpipes to support front drive activity / status indicators
• Included Item: Caddy tray only
• Application Type: Server storage drive tray conversion for supported Supermicro chassis

Connector & Drive Alignment Details

• Backplane Interface: Uses the existing chassis backplane connection
• Drive Positioning: Positions one 2.5" drive for proper alignment inside a compatible 3.5" Supermicro hot-swap bay
• Drive Support: Supports one 2.5" drive per converter tray
• Installation Method: 2.5" drive mounts to the converter tray, then the full tray slides into the compatible 3.5" hot-swap bay
• Important Fit Detail: Generic 3.5" to 2.5" adapters may not align correctly with server hot-swap backplanes; use the proper Supermicro tray style when backplane alignment is required

Interchangeable / Replacement Part Numbers

MCP-220-00043-0N

Related / Alternate Part Numbers

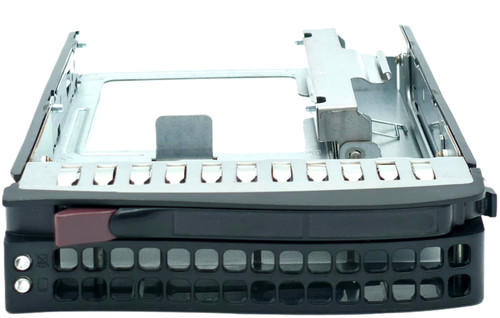

MCP-220-00118-0B

The MCP-220-00118-0B is the tool-less alternate version of this converter tray. Verify tray generation, tool-less vs screw-mounted style, chassis support, drive/backplane alignment, and latch style before substituting.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your chassis configuration, original tray style, backplane type, drive interface, drive height, and front-bay mechanical layout. It’s essential to verify compatibility with your Supermicro chassis model, original drive tray part number, and backplane alignment prior to installation.

✔ Supermicro SC825 / CSE-825 Chassis Models: CSE-825TQ-563LPB, CSE-825TQ-600WB, CSE-825TQC-600LPB, CSE-825TQC-R802LPB, CSE-825TQC-R802WB, CSE-825BTQC-R609WB, CSE-825B2TQC-R920W
✔ Supermicro SC829 / CSE-829 Chassis Models: CSE-829HAC12-R1K62LPB, CSE-829HE1C4-R1K02LPB
✔ Supermicro SC847 / CSE-847 Chassis Models: CSE-847BA-R1K23LPB, CSE-847BE2C-R1K23WB, CSE-847BE1C-R1K23WB, CSE-847BE1C12-R1K68LPB4, CSE-847BE1C4-R1K23LPB4
✔ SuperServer 1U Models: SYS-5019P-WTR, SYS-5019C-WR, SYS-510P-MR
✔ SuperServer 2U Models: SYS-6028U-TR4+, SYS-6029P-WTR, SYS-621P-TRT
✔ SuperStorage 2U Models: SSG-5029P-E1CTR12L, SSG-6029P-E1CR12H, SSG-6029P-E1CR12L, SSG-6029P-E1CR16T
✔ SuperStorage 3U / 4U Models: SSG-6039P-E1CR16H, SSG-6049P-E1CR24L, SSG-6049P-E1CR24H, SSG-6049P-E1CR36H, SSG-5049P-E1CTR36L, SSG-640P-E1CR24H, SSG-641E-E1CR36H
✔ 6036ST / 937 Chassis Configuration: 6036ST-6LR, CSE-937ETS-R1200NDBP

☑️ Key Features

☑️ Converts compatible Supermicro 3.5" hot-swap drive bays for use with one 2.5" HDD or SSD
☑️ Supports SATA or SAS 2.5" drives depending on chassis backplane and controller configuration
☑️ Hot-swap capable when used with supported Supermicro hot-swap chassis
☑️ Gen 4 converter tray design
☑️ Includes lightpipe support for compatible front drive activity / status indicators
☑️ Helps maintain proper 2.5" drive positioning for Supermicro server backplanes
☑️ Useful for installing SSD boot drives, cache drives, or 2.5" storage drives in 3.5" bays
☑️ Designed for supported Supermicro chassis and systems that list MCP-220-00043-0N as the correct converter tray option

⚙️ Fit Notes

• Match your original tray or chassis accessory part number whenever possible
• Confirm your chassis supports MCP-220-00043-0N before ordering
• Confirm your server uses compatible 3.5" hot-swap bays
• This tray supports one 2.5" drive installed into a compatible 3.5" hot-swap bay
• The drive interface depends on the system backplane; this tray itself does not convert SATA to SAS, SAS to SATA, or NVMe to SATA/SAS
• This is not intended for NVMe drive bays unless your chassis documentation specifically lists this tray for that use
• For NVMe 3.5" to 2.5" conversion, some systems require different orange-tab NVMe tray options
• Verify drive height, screw mounting points, tray latch style, backplane alignment, and LED lightpipe alignment before installation
• This listing includes the caddy tray only
• Drive, screws, server, backplane, cables, and additional mounting hardware are not included unless shown
