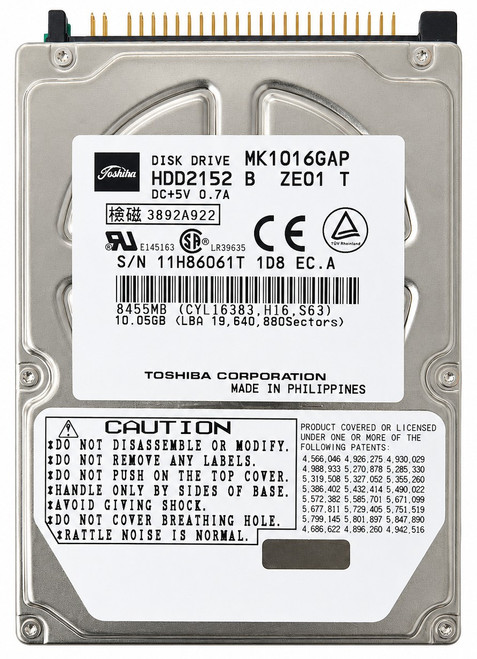

10GB 4.2K RPM ATA IDE PATA EIDE 2.5" Legacy Laptop Hard Drive HDD

This 10GB 4.2K RPM 2.5-inch IDE / PATA hard disk drive is designed for older laptops, notebooks, embedded systems, legacy industrial computers, POS terminals, diagnostic equipment, and other systems that require a native 44-pin notebook IDE hard drive.

This drive is intended for systems that require a standard 2.5-inch laptop IDE / ATA / EIDE hard drive. The exact drive label, manufacturer, firmware, and cache size may vary depending on approved interchangeable inventory, but the drive supplied will match the core specifications for this listing: 10GB capacity, 2.5-inch form factor, IDE / PATA interface, and legacy notebook hard drive compatibility.

Technical Specifications

• Capacity: 10GB
• Speed: 4200 RPM / 4.2K RPM
• Interface: IDE / PATA / ATA / EIDE
• Form Factor: 2.5-inch Laptop / Notebook
• Drive Type: Hard Disk Drive HDD
• Data / Power Connector: 44-pin notebook IDE / PATA
• Power Requirement: 5V through 44-pin IDE connector
• Height: Typically 9.5 mm unless otherwise noted by exact model
• Cache: Varies by exact model / manufacturer
• Installation Type: Internal laptop / notebook hard drive
• Notes: Bare drive only

Interchangeable / Replacement Part Numbers

MK1016GAP, HDD2152, MK1017GAP, DJSA-210, IC25N010ATDA04, IC25N010ATDA04-0, IC25N010ATCS04, IC25N010ATCS04-0, MHM2100AT, DCXA-210000, MK1011GAV

External Enclosure Add-On

Want to use this drive externally for cloning, backup, file transfer, diagnostics, or legacy data access? Pair it with our 2.5 USB 2.0 44-Pin IDE ATA PATA Portable External Hard Drive Enclosure Case for Laptop HDD.

• Supports 2.5-inch IDE / PATA / ATA laptop hard drives
• Connects through USB 2.0
• Designed for 44-pin notebook IDE drives
• Useful for data transfer, drive cloning, testing, diagnostics, and recovery work
• Sold separately

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Toshiba Satellite Series: 1100, 1105, 1600, 1625, 1675, 1695, 1715, 1730, 1750, 1800, 1805, 1900, 1905, 2060, 2100, 2140, 2180, 2250, 2400, 2405, 2500, 2505, 2590, 2595, 2715, 2750, 2770, 2800, 2805, 3000, 3005, A10, A15, A20, A25, A30, A35
✔️ Toshiba Tecra Series: 8000, 8100, 8200, 9000, 9100, A1, A2, M1, M2, S1
✔️ Toshiba Portege Series: 3010, 3020, 3110, 3440, 3480, 3490, 3500, 4000, 4010, 7020, 7200, R100, M100, M200
✔️ IBM ThinkPad A Series: A20, A20m, A20p, A21, A21e, A21m, A21p, A22, A22e, A22m, A22p, A30, A30p, A31, A31p
✔️ IBM ThinkPad T Series: T20, T21, T22, T23, T30, T40, T40p, T41, T41p, T42, T42p
✔️ IBM ThinkPad R Series: R30, R31, R32, R40, R40e, R50, R50e, R50p, R51
✔️ IBM ThinkPad X Series: X20, X21, X22, X23, X24, X30, X31, X40
✔️ IBM ThinkPad Legacy Series: 240, 240X, 240Z, 390, 390E, 390X, 570, 570E, 600, 600E, 600X, i Series 1200, i Series 1300, i Series 1400, i Series 1500, i Series 1800
✔️ Dell Latitude Series: CP, CPi, CPi A, CPi D, CPt, CS, CSx, C400, C500, C510, C540, C600, C610, C640, C800, C810, C840, D400, D500, D505, D600
✔️ Dell Inspiron Series: 3000, 3200, 3500, 3700, 3800, 4000, 4100, 4150, 5000, 5100, 5150, 7000, 7500, 8000, 8100, 8200, 8500
✔️ Dell Precision Mobile Workstation Series: M40, M50, M60
✔️ HP Pavilion Notebook Series: N3000, N3100, N3200, N3300, N3400, N5000, N5100, N5200, N5300, ze4100, ze4200, ze4300, ze4400, ze4500, ze4600, ze4700, ze5200, ze5300, ze5400, ze5500, ze5600
✔️ HP Omnibook Series: 2100, 3000, 4100, 4150, 500, 6000, 6100, 900, XE2, XE3, XT1000, XT1500, VT6200
✔️ HP Compaq Business Notebook Series: nx9000, nx9005, nx9008, nx9010, nc4000, nc6000, nc8000
✔️ Compaq Armada Series: 110, 3500, 4100, 4200, 7300, 7400, 7700, 7800, E500, E700, M300, M700, M700e, M300
✔️ Compaq Evo Notebook Series: N1000, N1005, N1010v, N1020v, N1050v, N110, N150, N160, N180, N400c, N410c, N600c, N610c, N620c, N800c, N800v, N800w
✔️ Compaq Presario Notebook Series: 1200, 1210, 1230, 1240, 1250, 1270, 1400, 1500, 1600, 1700, 1800, 2100, 2500, 2700, 2800, 700, 900
✔️ Sony VAIO PCG Series: PCG-505, PCG-505F, PCG-505G, PCG-505GX, PCG-F Series, PCG-FX Series, PCG-FXA Series, PCG-FRV Series, PCG-GR Series, PCG-GRX Series, PCG-R505 Series, PCG-SR Series, PCG-XG Series, PCG-Z505 Series
✔️ Sony VAIO Notebook Series: VAIO FX, VAIO FXA, VAIO FR, VAIO FRV, VAIO GR, VAIO GRX, VAIO R505, VAIO SR, VAIO XG, VAIO Z505
✔️ Acer TravelMate Series: 200, 210, 220, 230, 240, 250, 260, 270, 290, 330, 340, 350, 360, 370, 420, 430, 520, 530, 610, 620, 630, 730, 740, 800
✔️ Acer Aspire Notebook Series: 1200, 1300, 1350, 1400, 1600, 1640, 1680, 1700, 2000, 2010, 2020
✔️ Fujitsu LifeBook Series: B Series, C Series, E Series, i Series, L Series, P Series, S Series, S-6000, S-6010, S-6120, S-6130, S-7000, S-7010, T Series
✔️ Gateway Solo Series: 2150, 2300, 2500, 2550, 3100, 3150, 3350, 5150, 5300, 5350, 9100, 9150, 9300, 9500, 9550
✔️ Gateway Notebook Series: 200, 200ARC, 300, 400, 450, 600, 700, M Series, M500, M520, M530, M675
✔️ eMachines Notebook Series: M5000, M5100, M5300, M5310, M5400, M6800, M6810, M6811, M6805
✔️ Apple PowerBook G3 Series: Wallstreet, PDQ, Lombard, Pismo
✔️ Apple PowerBook G4 Series: Titanium 400MHz, Titanium 500MHz, Titanium 550MHz, Titanium 667MHz, Titanium 800MHz, Titanium 867MHz, Titanium 1GHz, early Aluminum G4 models using 2.5-inch IDE / ATA storage
✔️ Apple iBook Series: Clamshell G3, Dual USB G3, G3 500MHz, G3 600MHz, G3 700MHz, G3 800MHz, G3 900MHz, early iBook G4 models using 2.5-inch IDE / ATA storage
✔️ Panasonic Toughbook Series: CF-27, CF-28, CF-29, CF-37, CF-47, CF-48, CF-50, CF-51, CF-72, CF-73
✔️ NEC Versa Series: Versa 2000, 2400, 2500, 2600, 4000, 5000, 6000, 6200, 6300, LX, SX, VX, M Series, P Series
✔️ Sharp Actius Series: Actius A Series, Actius M Series, Actius MM Series, Actius MV Series, Actius PC Series
✔️ WinBook Notebook Series: XL, XL2, XL3, FX, J Series, N Series, X Series
✔️ Micron Transport Notebook Series: Transport GX, GX2, GX3, Trek, Trek 2, Trek 3, TransPort NX, TransPort ZX
✔️ Industrial PC Systems: Legacy industrial laptops, embedded controllers, machine-control PCs, CNC control systems, diagnostic stations, automation computers, medical imaging equipment, and field-service systems using standard 2.5-inch 44-pin IDE / PATA hard drives
✔️ POS / Kiosk / Embedded Systems: Legacy point-of-sale terminals, kiosk computers, cash-register systems, embedded appliance PCs, digital signage controllers, and thin-client systems using 2.5-inch 44-pin IDE / PATA hard drives
✔️ Legacy External Enclosures / Drive Adapters: 2.5-inch IDE / PATA USB enclosures, 44-pin IDE-to-USB adapters, notebook HDD cloning stations, and recovery devices designed for 2.5-inch IDE laptop hard drives

☑️ Key Features

☑️ 10GB capacity for legacy laptop and notebook storage replacement
☑️ 4200 RPM spindle speed commonly used in older notebook systems
☑️ Standard 2.5-inch laptop hard drive form factor
☑️ Native IDE / PATA / ATA / EIDE interface for older systems that do not use SATA
☑️ Uses standard 44-pin notebook IDE connection for both data and power
☑️ Suitable for vintage laptops, embedded systems, POS terminals, and industrial equipment
☑️ Useful for replacement, restoration, cloning, testing, diagnostics, and legacy software imaging
☑️ Helps maintain compatibility with older BIOS versions and operating systems that may not support larger modern drives
☑️ Interchangeable with select Toshiba, IBM, Hitachi, and Fujitsu 10GB 2.5-inch IDE hard drive models
☑️ Ideal for systems that require a smaller legacy-capacity IDE drive instead of a modern SATA replacement

⚙️ Fit Notes

• This hard drive is for systems that use a native 2.5-inch IDE / PATA notebook hard drive connection.
• This is not a SATA hard drive.
• This drive uses a 44-pin notebook IDE connector, which carries both data and power through the same connector.
• This drive does not use the separate 4-pin Molex power connector found on 3.5-inch desktop IDE drives.
• Most MK1016GAP-class replacements are 9.5 mm height, but some legacy 10GB IDE drives may be 12.5 mm. Please verify your system’s drive-bay height before ordering if space is limited.
• Some older notebooks require the original caddy, rails, screws, interposer, adapter board, or drive cover to be transferred from the old drive to the replacement drive.
• Some systems may require the drive to be configured as Master, Slave, or Cable Select depending on the system, caddy, adapter, or embedded board.
• Some very old BIOS versions may require manual drive detection or may have capacity limitations; please verify your system supports 10GB IDE hard drives before purchase.
• Later crossover-era systems may include both IDE and SATA support. Please confirm your system is configured for IDE / PATA before ordering.
• Exact drive manufacturer, label, firmware, cache size, and production details may vary depending on approved interchangeable inventory, but the drive supplied will match the listed core specifications.
• This listing is for the bare hard drive only. Cables, screws, rails, caddies, adapters, and external enclosures are sold separately.
