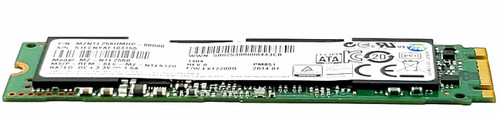

256GB M.2 2280 SATA III 6Gbps SSD For Laptops Desktops And Mini PCs

High-reliability 256GB M.2 2280 SATA III solid-state drive designed as an OS / primary storage upgrade for notebooks, small form factor desktops, mini PCs, and embedded systems that support M.2 2280 SATA (NGFF, AHCI).

This capacity is commonly used as a factory boot drive in many business and consumer platforms using OEM modules such as Samsung MZNLN256HMHQ, MZNTD256HAGL, and MZNTY256HDHP, as well as Intel, Micron, SK hynix, Toshiba/Kioxia, and other OEM drives that share identical electrical and mechanical specifications.

Technical Specifications

• Capacity: 256GB
• Interface: SATA III 6Gbps (AHCI, NGFF)
• Form Factor: M.2 2280 (22 mm x 80 mm)
• Protocol: SATA / AHCI (not PCIe / NVMe)
• NAND Type: Multi-vendor 3D NAND options depending on OEM module (TLC/MLC class)

• Typical Use:

• Operating system / boot drive
• General productivity workloads
• Light database, office, and web applications



• Sequential Performance:

  • Read and write speeds designed to saturate SATA III 6Gbps under optimal conditions (actual numbers vary by OEM module and host system)

• Operating Voltage: 3.3V
• Endurance / Reliability: Enterprise-grade or OEM-grade client SSDs selected from the interchangeable PN list (all within the same class of 256GB M.2 2280 SATA drives)

Interchangeable / Replacement Part Numbers

The following model numbers, FRUs, SPS, and DPNs refer to 256GB M.2 2280 SATA III SSDs with the same core specifications and are treated as interchangeable for compatible systems:

01FR506, WJT50, W21GG, SSS0L25088, 16200610, PCFF9, VFR5T, 2P56M, KGH8K, 5SD0H43486, 5SD0L14642, MGNHV, SSDSCKKF256GB, SSDSCKKF256G8H, SSDSCKKW256G8, MTFDDAV256TBN, HFS256G39MND, HFS256G39TND, THNSFJ256GDNU, KSG80ZMV256G, MZNTE256HMHP, KBG30ZMV256G, 912965-001, 900068-019, SSDSCKKF256G8, MZNLN256HMHQ, SU800NS38, MZNTD256HAGL, KSG60ZMV256G, MZNLN256HMHQ-000H1, MZNTY256HDHP, MZNLN256HCHP, SSDSCKKW256G8X1, 3C07120246, 855635-001, 400-AHCC, THNSNK256GVN8, HFS256G39TNF, MTFDDAV256MBF, SSDSCKKF256H6, MTFDDAV256MAZ, 865902-001, MZNLN256HAJQ, 3C07120236, 769994-001, MZ-NLN256C, SD7UN3Q-256G, MZ-NLN256F, SD7TN3Q-256G, MZNTE256HMHP-000H1, HFS256G39MND-3510A, HFS256G39TNF-N3B0A, CV3-8D256-41, 803128-001, 911120-001

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

These 256GB M.2 2280 SATA III SSDs are used widely as factory OS drives and upgrades in systems that provide a 22 x 80 mm M.2 slot wired for SATA/AHCI (sometimes described as “M.2 SATA”, “NGFF SATA”, or “M.2 2280 SATA Class 20”).

✔️ HP Notebooks (ProBook / EliteBook / ZBook / Pavilion / ENVY / Spectre)
ProBook 430 G2, 430 G3, 430 G4 (M.2 SATA configurations)
ProBook 440 G2, 440 G3, 440 G4 (256GB M.2 SATA options)
ProBook 450 G2, 450 G3, 450 G4, 455 G3 with 256GB M.2 SATA SSD
ProBook 640 G2/G3, 650 G2/G3 when equipped with 256GB M.2 2280 SATA
EliteBook 820 G2, 820 G3, 820 G4 (factory 256GB M.2 SATA models)
EliteBook 840 G2, 840 G3, 840 G4 with 256GB M.2 2280 SATA SSD
EliteBook 850 G2, 850 G3, 850 G4 (M.2 SATA boot drive configurations)
EliteBook 725/745/755 G2 and G3 series that ship with 256GB M.2 2280 SATA SSDs
ZBook 14 / 14u G2, ZBook 15u G2 / G3 with 256GB M.2 SATA boot drive
ZBook Studio G1/G2 (SATA M.2 builds using FRUs listed above)
Pavilion 14 and 15 series (x360 and standard) that specify 256GB M.2 SATA boot drive
Pavilion Gaming 15 (select 6th/7th/8th gen models with M.2 SATA)
Pavilion 17 models with 256GB M.2 SATA OS drive
ENVY 13 / ENVY 15 / ENVY 17 models where HP parts list shows 256GB M.2 2280 SATA (e.g., 769994-001, 855635-001, 865902-001)
Spectre 13 and Spectre x360 series where the service manual or parts list specifies 256GB M.2 SATA SSD FRUs from the interchangeable list

✔️ HP Desktops / AiO / Small Form Factor
EliteDesk 800 G2/G3 Small Form Factor and Mini PCs configured with 256GB M.2 2280 SATA SSD
ProDesk 400/600/800 G2/G3/G4 models that support 256GB M.2 SATA OS drives
HP Z2 Mini / Z2 Workstation SFF that list 256GB M.2 2280 SATA SSD options
Selected HP All-in-One systems (ENVY / Pavilion / EliteOne) where HP spare numbers from the list (for example 803128-001, 911120-001, 912965-001) are used as 256GB M.2 SATA boot drives

✔️ Latitude / Precision / Inspiron (M.2 SATA “Class 20” SSD)
Latitude E7470, E7270, E5570 with “256GB M.2 SATA Class 20” storage
Latitude 3480, 3580, 5280, 5480, 5580 base models using 256GB M.2 2280 SATA SSD (DPNs such as PCFF9, VFR5T, WJT50, MGNHV)
Latitude 5285/5289 2-in-1 and related systems that specify 256GB M.2 2280 SATA Class 20
Latitude 7280, 7380, 7480 configurations where the system is built with a 256GB M.2 SATA SSD rather than NVMe
Precision mobile workstations (selected 3000/5000 series) shipping with 256GB M.2 SATA as the OS drive (e.g., 400-AHCC kit)
Inspiron 5000/7000 series notebooks where the parts list or build sheet identifies a 256GB M.2 2280 SATA SSD matching one of the DPNs above
OptiPlex Micro / SFF / USFF systems (e.g., 7040M, 7050M, 7060M) that support 256GB M.2 SATA OS drives and list PCFF9, VFR5T, 2P56M, or W21GG in the storage options

✔️ ThinkPad / Lenovo Business Notebooks
ThinkPad T440s, T450s, T460s with 256GB M.2 2280 SATA SSD factory configurations
ThinkPad T440, T450, T460, T470 (models using M.2 2280 SATA OS drives)
ThinkPad X240, X250, X260 with 256GB M.2 SATA (where used as primary SSD)
ThinkPad X260/X270/X280 variants that list FRUs such as 01FR506 in their parts guide
ThinkPad L450, L460, L470, L480 models with 256GB M.2 2280 SATA boot drive
ThinkPad X1 Carbon (select generations that support and were shipped with 256GB M.2 SATA SSDs rather than NVMe, using FRUs like 00JT008, 00JT077, 00UP420, etc. where mapped to SATA rather than PCIe)
ThinkPad Yoga / ThinkPad 13 / V-Series business notebooks using 256GB M.2 2280 SATA SSDs from the interchangeable list

✔️ Lenovo Consumer / IdeaPad / Yoga
IdeaPad 310 / 320 / 510 / 520 / 700 series that include 256GB M.2 SATA factory SSD
Yoga 500 / 700 / 710 / 720 variants that are configured with 256GB M.2 2280 SATA drive
Miix and Flex series that list SD7UN3Q-256G, SU800NS38, or similar 256GB M.2 SATA model numbers in their hardware manuals

✔️ Other Systems (Acer, ASUS, MSI, and others)
Acer Aspire, Swift, and Spin notebooks where documentation lists a 256GB M.2 2280 SATA drive (for example, configurations originally shipped with SU800NS38-256G or SD7UN3Q-256G)
ASUS VivoBook and ZenBook models that support M.2 2280 SATA and ship with 256GB SATA (not NVMe) SSDs
MSI gaming and productivity laptops that include a 256GB M.2 2280 SATA SSD as the boot drive in entry-level configurations
Mini PCs, Intel NUC-type systems, thin clients, and industrial PCs that:
– provide an M.2 2280 slot wired for SATA, and
– list one of the interchangeable part numbers above as a supported 256GB storage option

☑️ Key Features

☑️ 256GB M.2 2280 SATA III SSD ideal for operating system and everyday workloads
☑️ SATA 6Gbps AHCI interface for broad compatibility with systems that do not support NVMe
☑️ Compact 22 x 80 mm form factor keeps cabling minimal and airflow unobstructed in tight chassis
☑️ Supports a wide ecosystem of OEM spare, FRU, and DPN numbers from HP, Dell, Lenovo, Intel, Micron, SK hynix, Toshiba/Kioxia, and others (see interchangeable list)
☑️ Excellent upgrade path from older 2.5" HDDs or small-capacity M.2 SATA drives while retaining SATA compatibility
☑️ Suitable for laptops, desktops, ultra-compact PCs, and embedded systems that require dependable 256GB M.2 SATA storage

⚙️ Fit Notes

• This drive is M.2 SATA (AHCI), not NVMe. Your system’s M.2 slot must support SATA-based M.2 SSDs; some newer systems provide NVMe-only M.2 slots that are not compatible.
• Form factor is M.2 2280 (22 x 80 mm). If your system only accepts shorter lengths (2242/2260) or uses a proprietary carrier, confirm mechanical fitment.
• When replacing an existing 256GB M.2 SATA SSD, you can generally use any of the interchangeable part numbers listed as long as your system supports generic M.2 SATA storage and is not locked to a specific OEM firmware.
• Always back up data before swapping drives and check whether you’ll be cloning the existing OS or performing a fresh installation.
• For desktops and workstations, confirm whether the M.2 slot shares bandwidth with other SATA ports; some motherboards disable a SATA port when an M.2 SATA device is installed.
