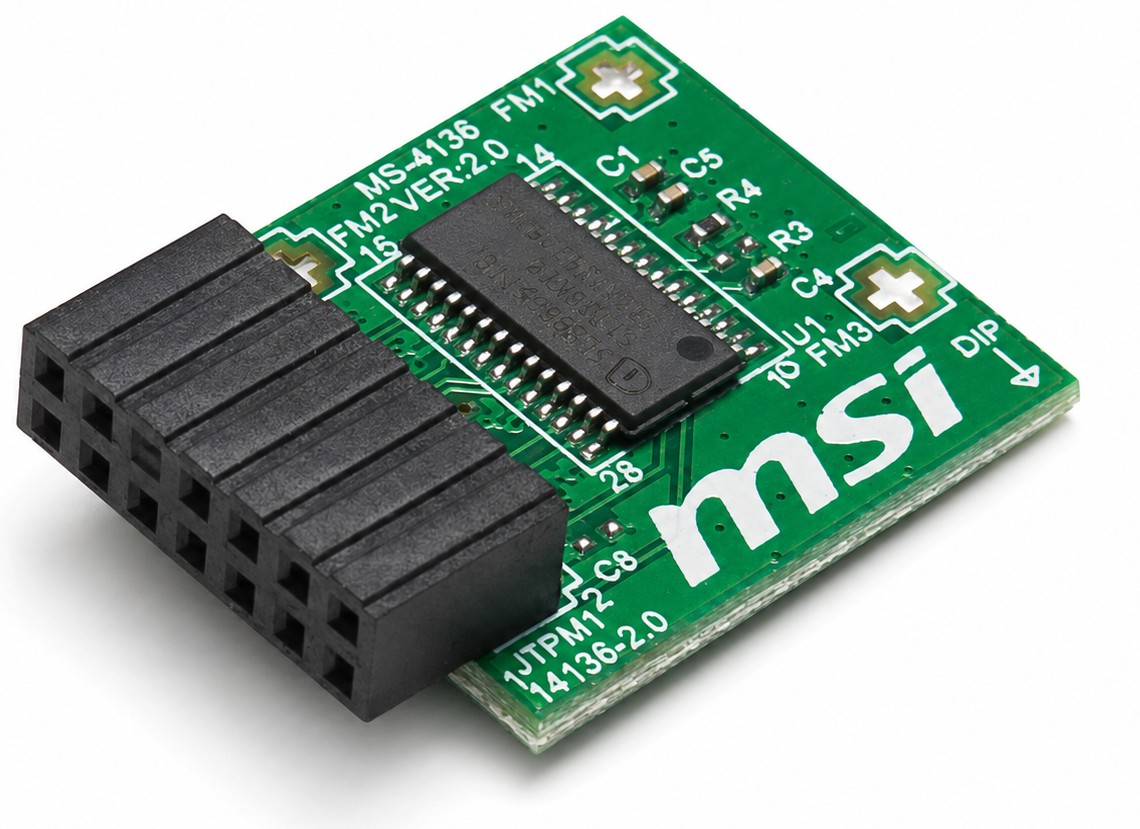

MSI MS-4136 TPM 2.0 Security Module with 14-1 Pin LPC Header

Discrete TPM 2.0 security module for compatible MSI motherboards equipped with the matching 14-1 pin LPC JTPM1 header. Built around the Infineon OPTIGA SLB 9665TT2.0 security controller, this compact module provides hardware-protected cryptographic key generation and storage, platform measurements, device authentication, and attestation.

Supports TPM-dependent security features such as BitLocker, Windows Hello, measured boot, device encryption, and enterprise health attestation when supported by the motherboard BIOS, operating system, and complete system configuration.

Technical Specifications

• Primary Part Number: MS-4136
• Official Retail Identifier: TPM2
• Assembly / Order Number: 914-4136-105
• PCB Markings: MS-4136 FM2 VER:2.0 / 14136-2.0
• Part Type: Discrete Trusted Platform Module
• TPM Version: TPM 2.0
• Security Controller: Infineon OPTIGA TPM SLB 9665TT2.0
• Official Firmware Version: 5.63
• TPM Specification: TCG TPM Family 2.0 Level 00 Revision 1.16
• Interface: LPC / Low Pin Count
• Header Type: Keyed 14-1 pin TPM connector
• Connector Layout: 2-row 14-position connector with one blocked / missing key position
• Motherboard Header Label: Commonly labeled JTPM1 or TPM
• Module Dimensions: Approximately 25mm x 20mm
• Power Source: Powered directly through the motherboard TPM header
• Platform Configuration Registers: 24 PCRs supporting SHA-1 or SHA-256
• Random Number Generator: NIST SP 800-90A-compliant hardware RNG
• Nonvolatile Memory: Approximately 7,206 bytes of available NV storage
• Endorsement Key Support: Factory personalization with Endorsement Key and EK certificate
• Typical Standby Current: Approximately 150µA at the controller level
• Controller Operating Temperature: -20°C to +85°C
• Primary Functions: Secure key generation and storage, boot measurement, device identity, authentication, attestation, and dictionary-attack protection
• Windows Support: Windows 10, Windows 8.1, and Windows 7 64-bit as originally documented
• Additional OS Support: Windows 11 on otherwise eligible systems and compatible Linux environments
• Installation Type: Plug-in motherboard daughtercard
• External Cable Required: No
• Included: One TPM 2.0 security module only

Interchangeable / Replacement Part Numbers

914-4136-105, 14136-2.0, MS-4136, MS-4136 FM2 VER:2.0, MS-4136 VER:2.0, TPM2

Replacement modules should use the Infineon SLB 9665TT2.0 TPM 2.0 controller with the matching 14-1 pin LPC connector and MSI pinout. Part number 914-4136-103 and MS-4136 VER:1.0 modules are TPM 1.2 versions and are not direct TPM 2.0 replacements.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility requires the matching MSI 14-1 pin LPC JTPM1 header, correct pinout, discrete TPM BIOS support, and an appropriate BIOS revision. A 14-pin connector or TPM 2.0 BIOS option alone does not guarantee compatibility.

✔️ Intel Z390 Motherboards: MEG Z390 GODLIKE, MEG Z390 ACE, MPG Z390 GAMING PRO CARBON AC, MPG Z390 GAMING PRO CARBON, MPG Z390 GAMING EDGE AC, MPG Z390 GAMING PLUS, MPG Z390M GAMING EDGE AC, MAG Z390 TOMAHAWK, MAG Z390M MORTAR, Z390-A PRO
✔️ Intel Z370 Motherboards: Z370 GODLIKE GAMING, Z370 GAMING PRO CARBON AC, Z370 GAMING PRO CARBON, Z370 GAMING M5, Z370 KRAIT GAMING, Z370 GAMING PLUS, Z370 TOMAHAWK, Z370 SLI PLUS, Z370-A PRO, Z370M GAMING PRO AC, Z370M MORTAR, Z370 PC PRO
✔️ Intel B365 / B360 Motherboards: MAG B365M MORTAR, B365M PRO-VDH, B365M PRO-VD, B365M PLUS, B360 GAMING PRO CARBON, B360 GAMING ARCTIC, B360 GAMING PLUS, B360-A PRO, B360M GAMING PLUS, B360M MORTAR TITANIUM, B360M MORTAR, B360M BAZOOKA PLUS, B360M BAZOOKA, B360M PRO-VH, B360M PRO-VDH, B360M PRO-VD
✔️ Intel H370 / H310 Motherboards: H370 GAMING PRO CARBON, H370 GAMING PLUS, H370M BAZOOKA, H310M GAMING ARCTIC, H310M GAMING PLUS, H310M PRO-VH, H310M PRO-VDH, H310M PRO-VD, H310M PRO-M2, H310M PRO-D, H310M PRO-C, H310I PRO AC, H310I PRO
✔️ Intel X299 Motherboards: X299 XPOWER GAMING AC, X299 GAMING M7 ACK, X299 GAMING PRO CARBON AC, X299 GAMING PRO CARBON, X299M GAMING PRO CARBON AC, MPG X299M GAMING EDGE AC, X299 TOMAHAWK ARCTIC, X299 TOMAHAWK AC, X299 TOMAHAWK, X299 SLI PLUS, X299 RAIDER, X299 PRO 10G, X299 PRO, X299-A PRO, X299M-A PRO, MEG X299 CREATION, CREATOR X299
✔️ Selected Intel 200-Series Motherboards: Z270 XPOWER GAMING TITANIUM, Z270 MPOWER GAMING TITANIUM, Z270 GAMING M7, Z270 GAMING M6 AC, Z270 GAMING M5, Z270 GAMING M3, Z270 GAMING PRO CARBON, Z270 KRAIT GAMING, Z270 TOMAHAWK, Z270 SLI PLUS, Z270 PC MATE, Z270-A PRO, B250 GAMING PRO CARBON, B250 GAMING M3, B250 PC MATE, B250M MORTAR, B250M BAZOOKA, B250M PRO-VDH, H270 GAMING M3, H270 GAMING PRO CARBON, H270 TOMAHAWK ARCTIC, H270 PC MATE
✔️ Selected Intel 100-Series Motherboards: Z170A XPOWER GAMING TITANIUM EDITION, Z170A MPOWER GAMING TITANIUM, Z170A GAMING M7, Z170A GAMING M6, Z170A GAMING M5, Z170A GAMING M3, Z170A GAMING PRO CARBON, Z170A KRAIT GAMING, Z170A TOMAHAWK, Z170A SLI PLUS, Z170-A PRO, Z170A PC MATE, B150 GAMING M3, B150 PC MATE, B150M MORTAR, H170 GAMING M3, H170M BAZOOKA
✔️ Intel C232 / C236 Workstation Motherboards: C236M WORKSTATION, C236A WORKSTATION, E3M WORKSTATION V5, E3 KRAIT GAMING V5
✔️ AMD X570 Motherboards: MEG X570 GODLIKE, MEG X570 ACE, MEG X570 UNIFY, PRESTIGE X570 CREATION, MPG X570 GAMING PRO CARBON WIFI, MPG X570 GAMING EDGE WIFI, MPG X570 GAMING PLUS, MAG X570 TOMAHAWK WIFI, X570-A PRO
✔️ AMD X470 Motherboards: X470 GAMING M7 AC, X470 GAMING PRO CARBON AC, X470 GAMING PRO CARBON, X470 GAMING PRO MAX, X470 GAMING PRO, X470 GAMING PLUS MAX, X470 GAMING PLUS
✔️ AMD B450 Motherboards: B450 GAMING PRO CARBON MAX WIFI, B450 GAMING PRO CARBON AC, B450 GAMING PLUS MAX, B450 GAMING PLUS, B450 TOMAHAWK MAX II, B450 TOMAHAWK MAX, B450 TOMAHAWK, B450M MORTAR TITANIUM, B450M MORTAR MAX, B450M MORTAR, B450M BAZOOKA MAX WIFI, B450M BAZOOKA PLUS, B450M BAZOOKA V2, B450M BAZOOKA, B450-A PRO MAX, B450-A PRO, B450M PRO-VDH MAX, B450M PRO-VDH PLUS, B450M PRO-VDH V2, B450M PRO-VDH, B450M PRO-M2 MAX, B450M PRO-M2 V2, B450M PRO-M2
✔️ AMD X370 / B350 Motherboards: X370 XPOWER GAMING TITANIUM, X370 GAMING M7 ACK, X370 GAMING PRO CARBON AC, X370 GAMING PRO CARBON, X370 GAMING PRO, X370 GAMING PLUS, X370 KRAIT GAMING, X370 SLI PLUS, B350 GAMING PRO CARBON, B350 KRAIT GAMING, B350 GAMING PLUS, B350 TOMAHAWK ARCTIC, B350 TOMAHAWK PLUS, B350 TOMAHAWK, B350M MORTAR ARCTIC, B350M MORTAR, B350M BAZOOKA, B350 PC MATE, B350M PRO-VDH, B350I PRO AC
✔️ Selected AMD A320 Motherboards: A320M GAMING PRO, A320M BAZOOKA, A320M GRENADE, A320M PRO-VH PLUS, A320M PRO-VHL, A320M PRO-VD/S V2, A320M PRO-VD/S, A320M PRO-VD, A320M PRO-E, A320M PRO-C, A320M PRO-M2 V2, A320M PRO-M2, A320M PRO-VD PLUS, A320M PRO-V
✔️ AMD TRX40 Motherboards: CREATOR TRX40, TRX40-A PRO, TRX40 PRO WIFI, TRX40 PRO 10G
✔️ AMD X399 Motherboards: MEG X399 CREATION, X399 GAMING PRO CARBON AC, X399 SLI PLUS

☑️ Key Features

☑️ Discrete hardware TPM 2.0 security module
☑️ Infineon OPTIGA SLB 9665TT2.0 security controller
☑️ Official 5.63 firmware configuration
☑️ Hardware-protected cryptographic key generation and storage
☑️ Supports platform measurements using 24 SHA-1 or SHA-256 PCRs
☑️ NIST SP 800-90A-compliant hardware random number generator
☑️ Supports BitLocker, Windows Hello, measured boot, device identity, and platform attestation
☑️ Complements compatible UEFI Secure Boot and enterprise security workflows
☑️ Compact 25mm x 20mm plug-in design
☑️ Installs directly into the matching JTPM1 header without a cable
☑️ Provides TPM 2.0 functionality to an otherwise compatible system
☑️ Direct replacement for the listed MS-4136 TPM 2.0 identifiers

⚙️ Fit Notes

✓ This is not a universal 14-pin TPM module. Confirm the motherboard specifically uses the MSI 14-1 pin LPC JTPM1 pinout.
✓ It is not compatible with 12-1 pin SPI modules such as MS-4462 or 9672, 20-pin server TPM headers, or same-size TPM modules designed for other motherboard brands.
✓ Intel 400-series and newer boards and AMD B550, A520, X570S MAX, WRX80, and newer AM5 platforms generally use a different SPI TPM module.

✓ Verify that the module is the TPM 2.0 version with the SLB 9665TT2.0 controller. 914-4136-103 and MS-4136 VER:1.0 are TPM 1.2 versions.

✓ Shut down the computer, disconnect AC power, and observe ESD precautions before installation. Align the blocked position with the missing header pin and never force or hot-plug the module.

✓ In BIOS, enable Security Device Support and select dTPM / Discrete TPM when that option is available. PTT or AMD fTPM may need to be disabled when choosing the discrete module.

✓ Back up all BitLocker recovery keys before replacing or clearing any TPM. Clearing the TPM can permanently remove keys required to access encrypted data.

✓ TPM 2.0 alone does not make a computer Windows 11 compatible. The processor, UEFI mode, Secure Boot capability, system firmware, memory, and other requirements must also qualify.
