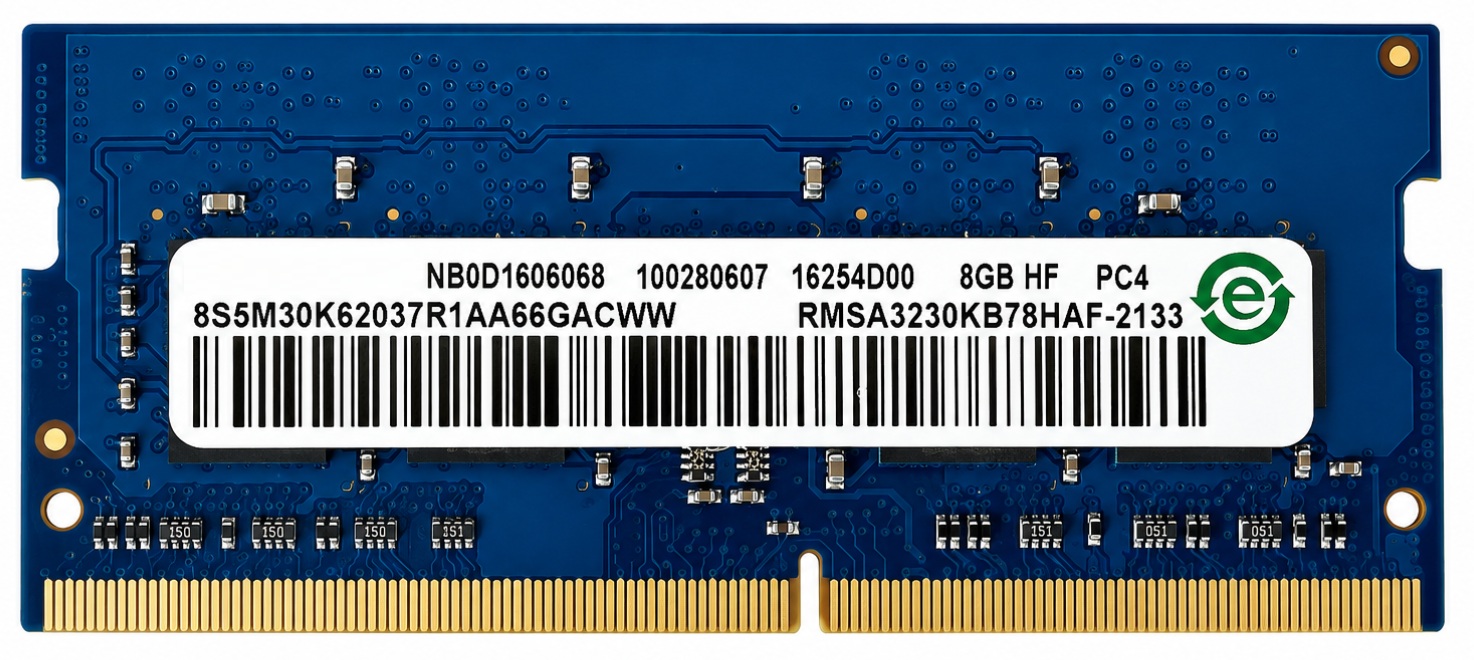

8GB PC4-2133P DDR4-2133 1Rx8 260-Pin Non-ECC Unbuffered SODIMM Laptop Memory

This 8GB DDR4-2133 memory module is designed for compatible laptops, mobile workstations, mini PCs, all-in-one computers, NAS appliances, and embedded systems requiring a 260-pin PC4-2133P 1Rx8 SO-DIMM. It operates at 1.2V and provides approximately 17GB/s of memory bandwidth in a compact laptop-size form factor.

Technical Specifications

• Capacity: 8GB
• Memory Type: DDR4 SDRAM
• Speed: 2133 MT/s
• Common Speed Description: DDR4-2133 / 2133MHz
• PC Rating: PC4-17000 / PC4-2133P
• Form Factor: 260-Pin SO-DIMM
• Rank / Organization: 1Rx8
• Module Organization: 1G x 64
• DRAM Device Width: x8
• Typical Construction: Eight 8Gb x8 memory devices
• Error Correction: Non-ECC
• Buffering: Unbuffered
• Voltage: 1.2V
• CAS Latency: JEDEC CL15
• Typical Timing: 15-15-15
• Maximum Theoretical Bandwidth: Approximately 17GB/s
• SPD Profile: JEDEC DDR4-2133
• Package Includes: One 8GB memory module

Interchangeable / Replacement Part Numbers

M471A1K43BB0-CPB, M471A1K43BB1-CPB, M471A1K43CB1-CPB, MTA8ATF1G64HZ-2G1B1, HMA81GS6AFR8N-TF, HMA81GS6MFR8N-TF, KVR21S15S8/8, KCP421SS8/8, CT8G4SFS8213, RMSA3230KB78HAF-2133, AO1P21FC8T1-BSKS, 799087-971, 4X70J67435, 03X7049, 5M30K59786, 5M30K62037, SM30E51275, SM30G16480, KN.8GB0C.007, KN.8GB0B.037, KN.8GB0C.008, 03A08-00050000, 03A08-00050200, 03A08-00050300, S26391-F1602-E800, S26391-F2203-L800, FZ-BAZ1908, FZ-BAZ1908IS, MTA8ATF1G64HZ-2G1, HMA81GS6AFR8N-TFN0, HMA81GS6AFR8N-TFN0-AC, HMA81GS6MFR8N-TFN0, RMSA3230KB78HAF2133, 820448-858, 820570-001, 820570-002, 820570-005, 834941-001, 903948-001, T0H90AA, T0H90AT, T7B77AA, P1N54AA, GX70M08958, KN.8GB04.020

Several of these service and option numbers have been supplied with different approved memory manufacturers, speeds, and rank organizations. When exact 1Rx8 construction is required, verify that the physical module label states 8GB 1Rx8 PC4-2133P.

✔️ Confirmed Compatibility

Compatibility applies to configurations using removable 260-pin DDR4 SO-DIMM memory. Model families may contain DDR3L, soldered-only, ECC, desktop-DIMM, or processor-dependent variants. Verify the exact machine configuration and installed module before ordering.

Business and General-Purpose Laptops

✔️ EliteBook: 820 G3, 840 G3, 848 G3, 850 G3
✔️ ProBook: 430 G3, 440 G3, 450 G3, 470 G3, 640 G2, 650 G2
✔️ Latitude: E5270, E5470, E5570, E7270, E7470, 5280, 7280, 7480, 3480, 3580, 3380, 5414 Rugged
✔️ Vostro: 14 3468, 15 3568, 3578 in DDR4-equipped configurations
✔️ Inspiron: 5566, 17 7773, 11 3195, and configurations specifying 8GB PC4-2133P SO-DIMM memory
✔️ ThinkPad: X260, T460p, T460s, Yoga 260, ThinkPad 13 Gen 1, ThinkPad 13 Gen 2, E470, E570
✔️ IdeaPad 310: 310-15ISK and 310-15 Touch DDR4 configurations
✔️ IdeaPad 510: 510-15ISK, 510-15IKB, 510S-14ISK
✔️ IdeaPad 700: 700-15ISK, 700-17ISK
✔️ V Series: V110-15ISK, V110-15AST, V510-15
✔️ IdeaPad 320/330: 320-14AST, 320-15AST, 320-17AST, 330-14AST, and Intel 320-15 configurations with a removable DDR4 SO-DIMM socket
✔️ ASUSPRO: P2430UJ, P2530UJ
✔️ VivoBook Pro: N552VX, N552VW
✔️ VivoBook: A756UA, X407UF, X442UQ, F542UA, X542UF, X542UQ, X542UR
✔️ K Series: K556UQ
✔️ Aspire: E5-475, E5-475G, E5-575, E5-575G, E5-774, E5-774G, F5-573, F5-573G in DDR4 configurations
✔️ TravelMate: P249-M, P249-MG, P259-M, P259-MG
✔️ ProBook 11 Education Edition: 11 EE G2 configurations using DDR4-2133 SO-DIMM memory

Mobile Workstations

✔️ Precision: 3510, 5510
✔️ Precision 7510 and 7710: Non-ECC configurations only
✔️ Precision 5520: Sixth-generation processor configurations operating memory at 2133 MT/s
✔️ ZBook: 15u G3
✔️ ZBook 15 G3, 17 G3 and Studio G3: Non-ECC configurations only
✔️ ZBook 15 G4: Configurations documented for DDR4-2133 non-ECC SO-DIMM memory
✔️ ThinkPad P50 and P70: Non-ECC configurations only
✔️ ThinkPad P51s: Configurations whose processor and memory controller operate the SO-DIMM at 2133 MT/s

Gaming and Performance Laptops

✔️ Alienware: 15 R2, 17 R3, Alpha R2
✔️ Alienware 15 R3: Configurations supporting 8GB DDR4-2133 SO-DIMM modules
✔️ ROG: GL552VW
✔️ MSI GE Series: GE62 6QF Apache Pro, GE72 6QF Apache Pro
✔️ MSI GS Series: GS60 6QE Ghost Pro, GS70 6QD Stealth, GS70 6QE Stealth Pro, GS72 6QC Stealth, GS72 6QE Stealth Pro
✔️ MSI GT Series: GT72S 6QE Dominator Pro G, GT72S 6QF Dominator Pro, GT80S 6QE Titan SLI, GT80S 6QF Titan SLI
✔️ MSI GL Series: GL62 6QC, GL62 6QD
✔️ MSI GP Series: GP62 6QE Leopard Pro
✔️ MSI Workstation Series: WT72 6QN in non-ECC configurations
✔️ MSI CR Series: CR62 7ML
✔️ IdeaPad Gaming: Y700-15ISK, Y700 Touch-15ISK, Y700-17ISK, Y900-17ISK
✔️ Predator Notebook: 15-inch and 17-inch configurations specifying removable DDR4-2133 SO-DIMM memory

Compact Desktops and All-in-One Systems

✔️ OptiPlex Micro: 7040 Micro
✔️ OptiPlex Micro: 3050, 5050 and 7050 Micro in processor configurations operating memory at 2133 MT/s
✔️ OptiPlex All-in-One: 7440 AIO
✔️ OptiPlex 5250 AIO: Sixth-generation processor configurations
✔️ EliteDesk: 800 G2 Desktop Mini
✔️ ProDesk: 400 G2 Desktop Mini, 600 G2 Desktop Mini
✔️ EliteOne: 800 G2 23-inch All-in-One
✔️ ProOne: 600 G2 21-inch All-in-One
✔️ ThinkCentre Tiny: M700 Tiny, M900 Tiny, M900x Tiny
✔️ ThinkCentre Tiny: M710 Tiny, M910 Tiny and M910x Tiny in 2133-compatible processor configurations
✔️ VivoMini: VM65, VM65N
✔️ Chromebox: CXI3 configurations accepting DDR4-2133 SO-DIMM memory
✔️ Thin Client: t530 configurations with an upgradeable DDR4 SO-DIMM socket
✔️ Z1 G3 All-in-One Workstation: Non-ECC configurations

NUC Kits and Boards

✔️ NUC6 Kits: NUC6i3SYH, NUC6i3SYK, NUC6i5SYH, NUC6i5SYK, NUC6i7KYK
✔️ NUC6 Boards: NUC6i3SYB, NUC6i5SYB, NUC6i7KYB
✔️ NUC7 Kits: NUC7i3BNH, NUC7i3BNK, NUC7i5BNH, NUC7i5BNK, NUC7i7BNH, NUC7i3DNHNC
✔️ NUC7 Boards: NUC7i3BNB, NUC7i5BNB, NUC7i7BNB

BRIX and Embedded Mini PCs

✔️ BRIX: GB-BSi3A-6100, GB-BSi3AL-6100, GB-BSi3HAC-6100, GB-BSi5HA-6200, GB-BSi7HAL-6500, GB-BSi7T-6500
✔️ BRIX Gaming: GB-BNi5HG6-1060, GB-BNi7HG6-1060
✔️ Embedded BRIX: GB-EKi3A-7100, GB-EKi3M-7100
✔️ BRIX Kaby Lake: GB-BKi5HT2-7200, GB-BKi5T2-7200

NAS and Storage Appliances

✔️ TVS-x73: TVS-473, TVS-673, TVS-873
✔️ TVS-x73e: TVS-473e, TVS-673e, TVS-873e
✔️ TVS-882ST: TVS-882ST2, TVS-882ST3
✔️ General NAS Support: Systems whose approved memory list specifies an 8GB non-ECC, unbuffered, 260-pin DDR4-2133 1Rx8 SO-DIMM

Thin Mini-ITX, STX and Compact Motherboards

✔️ ASUS: H110T, Q170T, Q170T/CSM, Q170S1
✔️ ASRock: H110TM-ITX, H110TM-ITX R2.0
✔️ ASRock STX: H110M-STX, H110M-STX/COM
✔️ ASRock DeskMini: DeskMini 110, DeskMini 110W, DeskMini 110/COM
✔️ ASRock Embedded Boards: J4105-ITX, J4105B-ITX, J4125-ITX, J5005-ITX
✔️ Gigabyte Thin Mini-ITX: GA-IMB370TN, GA-IMB4100TN, GA-H310TN, GA-H310TN-CM, GA-H310TN-R2
✔️ MSI Thin Mini-ITX: H510TI-S03, H510TI-S05, H610TI-S01, PRO HM570TI-B I526

Industrial and Embedded Systems

✔️ Advantech: AIMB-232, BQ170-I, EPC-T2286, PPC-6171C
✔️ Kontron: mITX-SKL-H in non-ECC configurations, KBox A-150-KBL, COMe-bSL6 in non-ECC configurations
✔️ ASRock Industrial: IMB-193, IMB-194-L, IMB-194-D, IMB-195, IMB-195-D, IMB-198P, IMB-198M, IMB-199V
✔️ ASRock Industrial Barebone: Jupiter H110
✔️ MSI Industrial: MS-98F7, MS-98H3
✔️ General Embedded Support: Compatible industrial computers, panel PCs, kiosks, digital-signage systems, robotics controllers, CNC interfaces and compact embedded systems specifying 8GB 1Rx8 PC4-2133P 260-pin non-ECC SO-DIMM memory

Configuration-Dependent 2133 MT/s Operation

✔️ Latitude 5480 and 5580: Kaby Lake U or other documented 2133 configurations; H-series configurations may specify 2400
✔️ Latitude 7290, 7390 and 7490: Seventh-generation processor configurations operate supported SO-DIMM memory at 2133
✔️ Precision 5520: Sixth-generation processor configurations use 2133; seventh-generation configurations normally use 2400
✔️ ProBook 440 G5: Seventh-generation configurations operate memory at 2133; eighth-generation configurations normally operate at 2400
✔️ ThinkPad: T470, T470s, T570, L470, L570, X270 and P51s in documented 2133 configurations
✔️ ThinkCentre: M710 Tiny, M910 Tiny and M910x Tiny with processor configurations supporting DDR4-2133
✔️ General Downclocking Support: Later systems may accept this module and operate it at 2133 when the processor, BIOS and memory controller support the JEDEC DDR4-2133 profile

☑️ Key Features

☑️ Exact 8GB PC4-2133P DDR4-2133 memory class
☑️ Single-rank 1Rx8 organization
☑️ Standard 260-pin laptop SO-DIMM form factor
☑️ Low 1.2V DDR4 operating voltage
☑️ Non-ECC and unbuffered for supported client systems
☑️ JEDEC CL15 operation
☑️ Suitable for single-module replacements or matched-pair upgrades
☑️ Broad manufacturer and OEM service-part cross-reference coverage
☑️ Compatible with supported laptops, workstations, mini PCs, AIOs, NUC systems, NAS appliances and embedded motherboards
☑️ No special driver or software installation required

⚙️ Fit Notes

• Confirm that the system requires a 260-pin DDR4 SO-DIMM, not a 288-pin desktop DIMM.
• This listing is specifically for 8GB 1Rx8 memory.
• Do not substitute a 1Rx16 or 2Rx8 module when the system, application or inventory project requires exact 1Rx8 organization.
• This is non-ECC, unbuffered memory. It cannot be mixed with ECC memory.
• Do not install it in an ECC-only, registered, buffered or load-reduced memory system.
• It is not compatible with DDR3, DDR3L, LPDDR, DDR5, desktop UDIMM, RDIMM or LRDIMM sockets.
• Some systems accept both 1Rx8 and 2Rx8 modules, but that does not make their individual part numbers exact rank-for-rank replacements.
• OEM service numbers can represent more than one approved supplier or module revision. Match the physical label when rank is important.
• Actual operating speed is controlled by the processor, chipset, BIOS and other installed memory.
• A DDR4-2133 module cannot operate faster than its supported 2133 MT/s profile.
• Mixed-speed modules normally operate at the slowest mutually supported speed.
• Matching capacity, speed, rank and timing is recommended for dual-channel operation.
• Certain thin laptops combine soldered memory with one removable SO-DIMM socket. Install the module only in the removable socket.
• Update the system BIOS when recommended by the manufacturer before installing newly supported memory.
