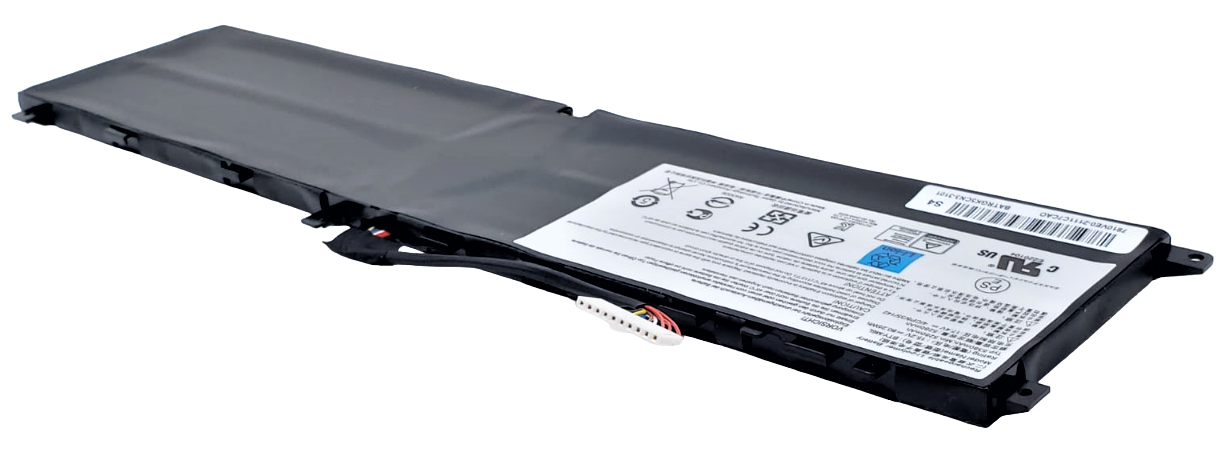

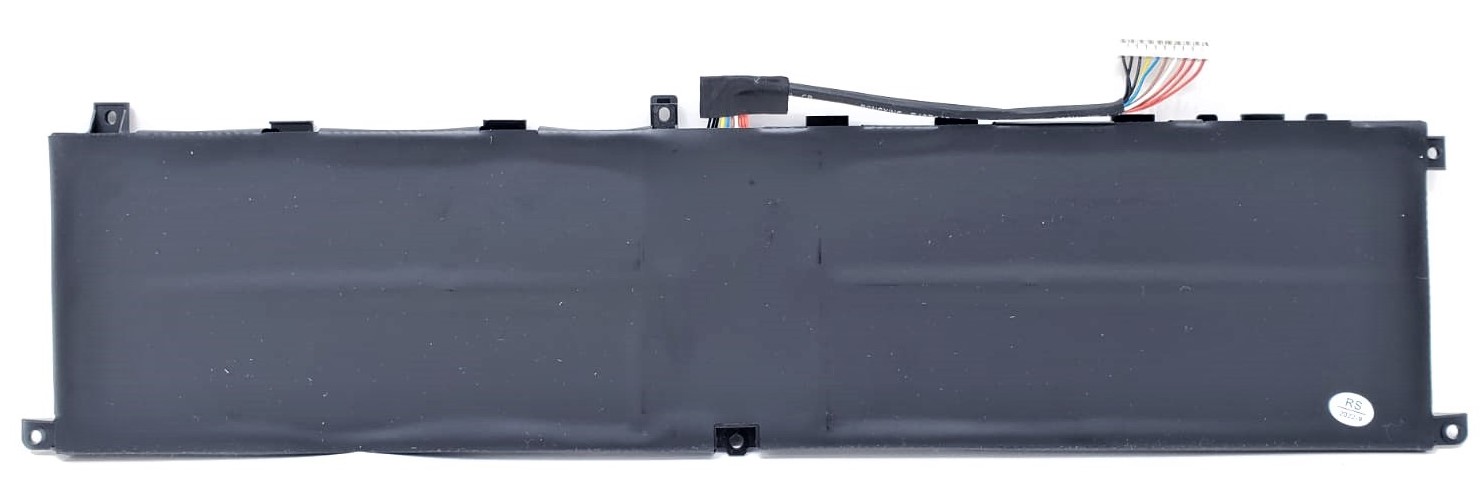

BTY-M6L 80.25Wh 5280mAh 2-Hole Battery for MSI GS75 P75 PS63 WS75 Creator 17

This BTY-M6L internal battery is the 2-hole mounting revision used in select MSI GS75, P75, PS63, Prestige 15, WS75, and Creator 17 systems. It is rated at 15.2V, 5280mAh, and 80.25Wh with a 4-cell lithium-ion polymer design. Match the original battery number and complete physical layout before ordering because BTY-M6L batteries are also available in a different 1-hole housing.

Technical Specifications

• Primary Part Number: BTY-M6L
• Product Type: Internal rechargeable laptop battery pack
• Mounting Revision: 2-hole housing
• Battery Chemistry: Lithium-ion polymer
• Cell Count: 4 cells
• Cell Configuration: 4S1P
• Voltage: 15.2V DC
• Capacity: 5280mAh
• Energy Rating: 80.25Wh
• Connector Type: Wired internal battery connector
• Color: Black
• Included: One internal battery

Interchangeable / Replacement Part Numbers

BTY-M6L, 541389480003, 541389480007, S9N-954J220-M47, S9N-954J221-M47, S9N-954J222-M47, S9N-954J223-AQ2, S9N-954J224-AQ2, S9N-954J225-AQ2, S9N-954J226-AQ2, S9N-954J260-SB3, S9N-954J261-SB3, S9N-954J263-SB3, S9N-954J280-M47

Additional Pack Marking: 4ICP8/35/142

The marking 4ICP8/35/142 describes a battery-pack type and is not a unique service part number. Confirm BTY-M6L or one of the listed service numbers along with the physical layout. MS-16Q21 identifies a system board rather than an interchangeable battery part number.

✅ Confirmed Compatibility

Compatibility is limited to systems originally equipped with the 2-hole BTY-M6L 15.2V 80.25Wh battery. Verify the original service number, mounting tabs, cable route, and connector orientation. The 1-hole BTY-M6L housing is physically different.

✔️ MSI GS75 Stealth 8 Series: GS75 Stealth 8SD, 8SE, 8SF, 8SG
✔️ MSI GS75 Stealth 9 Series: GS75 Stealth 9SD, 9SE, 9SF, 9SG
✔️ MSI GS75 Stealth 10 Series: GS75 Stealth 10SE, 10SF, 10SFS, 10SGS
✔️ MSI P75 Creator Series: P75 Creator 8SE, 8SF, 9SD, 9SE, 9SF, 9SG
✔️ MSI PS63 Modern Series: PS63 Modern 8M, 8MO, 8RC, 8RD, 8RDS, 8SC
✔️ MSI Prestige 15 Series: Prestige 15 A10M, A10RC, A10SC
✔️ MSI WS75 Mobile Workstation Series: WS75 9TJ, 9TK, 9TL, 10TK, 10TL, 10TM
✔️ MSI Creator 17 A10 Series: Creator 17 A10SD, A10SE, A10SF, A10SFS, A10SGS configurations originally equipped with the BTY-M6L-style 80.25Wh or 82Wh battery

☑️ Key Features

☑️ 15.2V 5280mAh 80.25Wh replacement battery
☑️ 4-cell 4S1P lithium-ion polymer construction
☑️ 2-hole housing for matching listed systems
☑️ Replaces the listed service numbers when the housing and connector match
☑️ Internal battery supplied without chassis-specific mounting hardware

⚙️ Fit Notes

• Match the original battery number and confirm the computer uses the 2-hole BTY-M6L housing.
• Compare all mounting tabs, connector orientation, cable length, and cable route with the original battery.
• The different 1-hole BTY-M6L housing used in other computer families is not physically interchangeable.
• Some Creator 17 configurations use a larger 99.9Wh battery; order this part only when the original is the BTY-M6L-style 80.25Wh or 82Wh pack.
• Shut down and unplug the computer before installation, and do not install a swollen or damaged battery.
