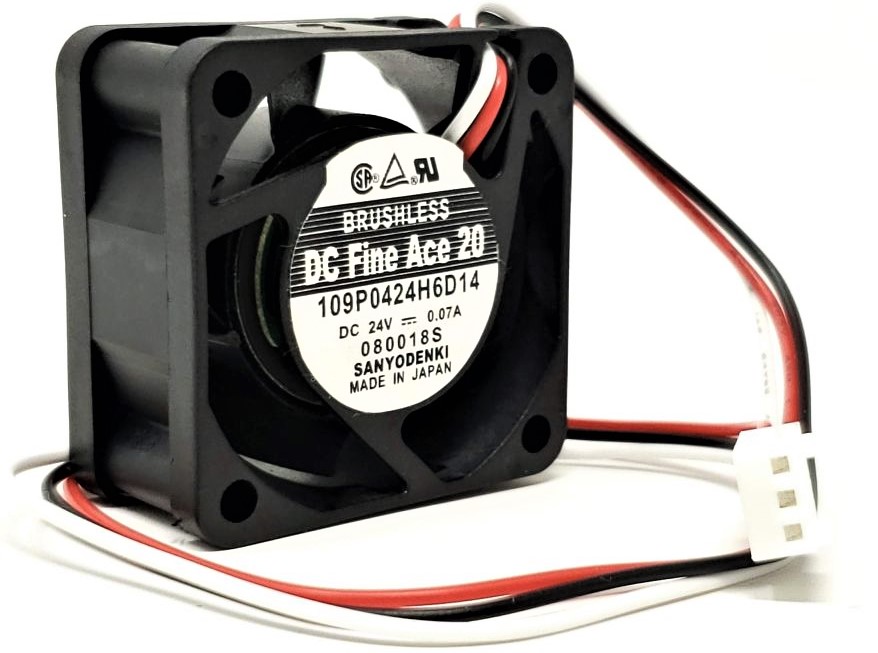

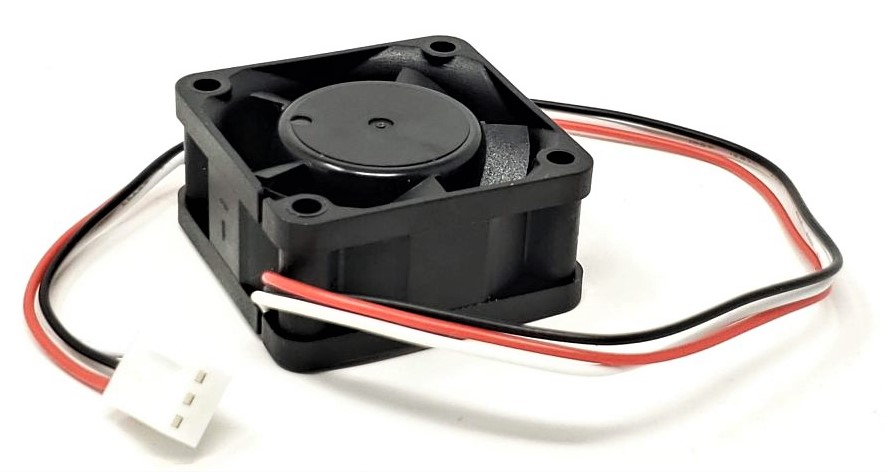

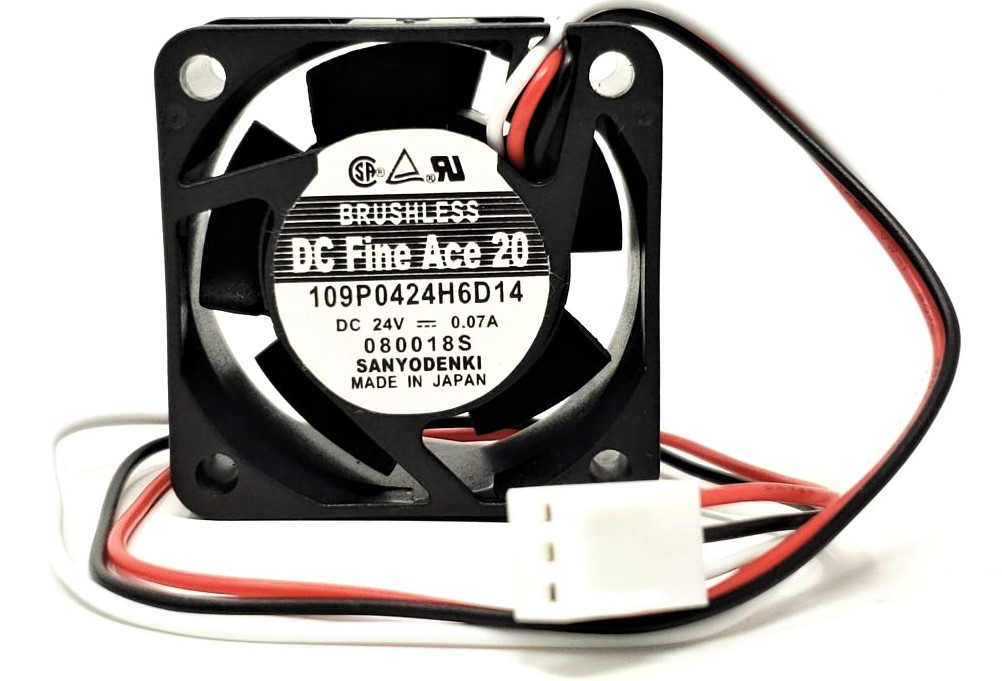

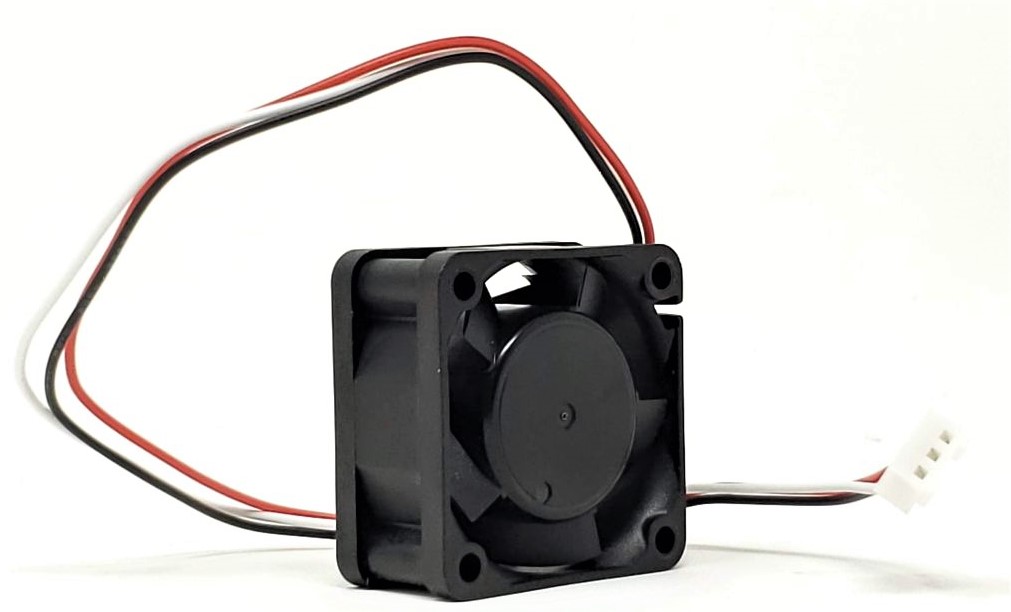

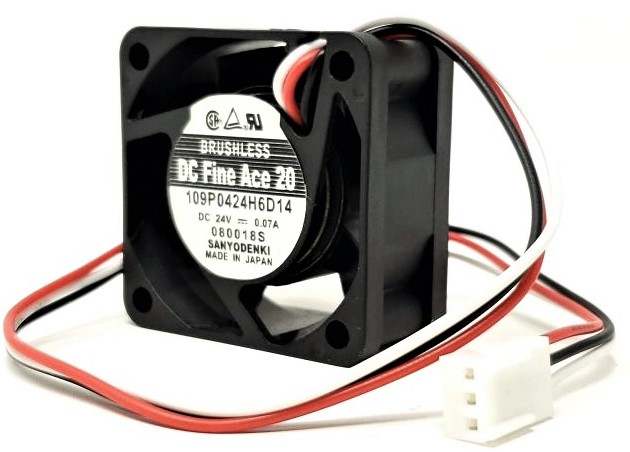

This DC cooling fan is a direct replacement for the listed A90L-0001-0385 fan assemblies and interchangeable fan numbers. It features a 24V DC input, 3-pin female connector, and extended lead for compatible CNC controls, servo amplifiers, spindle amplifiers, power modules, and industrial automation equipment.
A90L-0001-0385, A90L-0001-0385#A, A90L-0001-0385#B, A90L-0001-0385#C, A90L-0001-0385#T, A90L-0001-0385/TX, 109P0424H6D04, 109P0424H6D14, 109P0424H6D17, 109P0424H6D19, 9WF0424H6D03A, 9WF0424H6D06A, 9WF0424H6D08A
All numbers listed above identify compatible 40mm x 40mm x 20mm 24V cooling-fan revisions using the required 3-pin female equipment connector. The label, current rating, wire colors, cable routing, and frame appearance may vary between interchangeable revisions.
Compatibility is based on the original fan assembly number, 24V electrical rating, 4020 dimensions, connector, wiring, and mounting configuration. Verify the complete original part number and connector orientation before installation.
✔️ A90L-0001-0385 Fan Family: Direct replacement for A90L-0001-0385 and its documented #A, #B, #C, #T, and /TX revisions
✔️ CNC Control Systems: Compatible systems originally equipped with one of the listed A90L-0001-0385 fan assemblies
✔️ Servo Amplifiers: Cooling replacement for compatible servo amplifier assemblies using the same 24V 4020 3-pin fan
✔️ Spindle Amplifiers: Compatible spindle-drive and amplifier assemblies originally fitted with a listed interchangeable fan number
✔️ Power Supply Modules: Compatible CNC power modules requiring this exact fan size, voltage, connector, and pinout
✔️ Industrial Drive Systems: Compatible inverter, motor-drive, and industrial-control assemblies originally using one of the listed fan numbers
✔️ Robotics and Automation Equipment: Compatible robot controllers and automated machinery requiring the same A90L fan assembly configuration
☑️ Compact 40mm x 40mm x 20mm 4020 form factor
☑️ Designed for 24V DC industrial-control systems

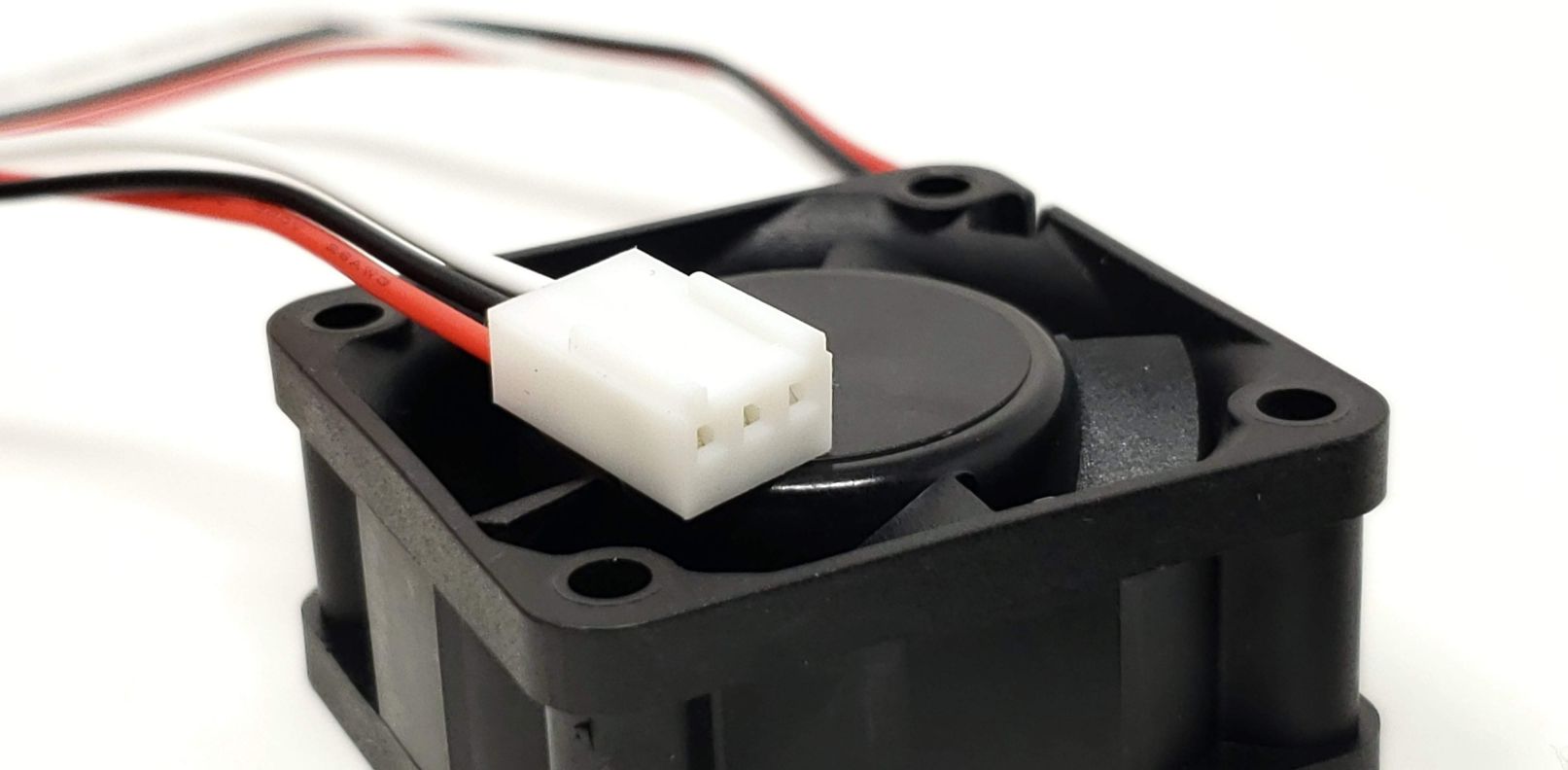

☑️ 3-pin female connector for direct equipment connection

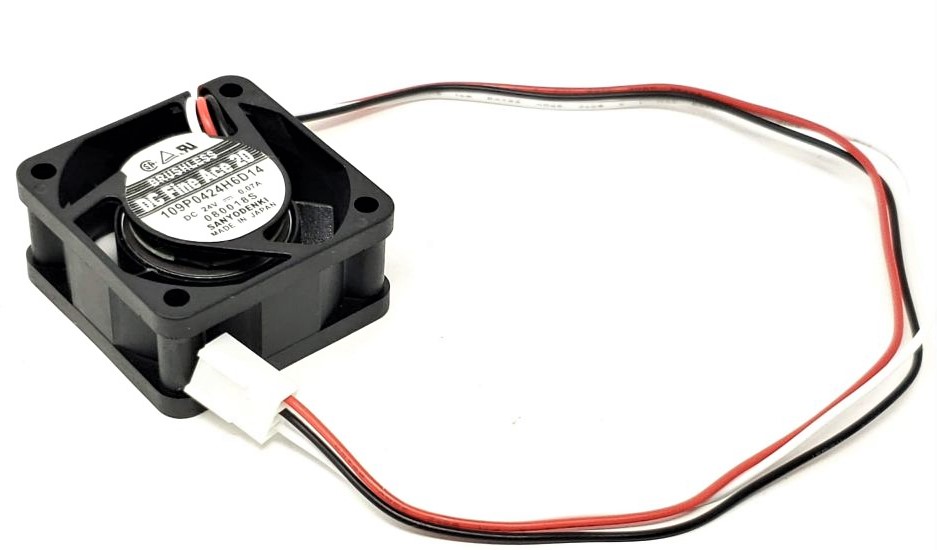

☑️ Extended approximately 9.5 to 10-inch cable
☑️ Replaces 0.07A and 0.08A fan revisions
☑️ Ball-bearing construction for continuous-duty cooling applications
☑️ Brushless DC motor design
☑️ Compatible with the complete listed A90L-0001-0385 replacement family
☑️ Suitable for CNC controls, servo amplifiers, spindle drives, robotics, and industrial automation
☑️ Four-hole square frame for secure equipment mounting
✓ Confirm that the original fan measures 40mm x 40mm x 20mm. Other A90L fan families may use different frame sizes or thicknesses.
✓ This fan requires 24V DC. Do not substitute a 5V, 12V, or 48V fan based only on physical dimensions.
✓ The listed interchangeable revisions may be marked 0.07A or 0.08A. Both ratings belong to this replacement group when the part number, connector, pinout, and mechanical fit match.
✓ Confirm the 3-pin female connector housing, keying, wire order, and polarity before applying power. A physically similar connector does not always use the same pin assignment.
✓ The third conductor may provide equipment-monitoring or fan-status feedback. Do not replace this assembly with a basic 2-wire fan when the control system monitors fan operation.
✓ Cable routing and lead length must allow the wire to reach the equipment header without contacting the fan blades, heatsinks, or high-voltage components.
✓ Install the replacement in the same airflow direction as the original fan.
✓ Turn off and disconnect equipment power before servicing CNC controls, amplifiers, drives, or automation hardware.
