32GB Half-Slim SATA MO-297A 1.8-Inch Industrial Solid State SSD Drive

This 32GB Half-Slim SATA solid-state drive provides compact, removable storage for industrial computers, embedded systems, POS terminals, CNC controls, HMIs, medical equipment, casino gaming systems and other equipment designed for a JEDEC MO-297 or MO-297A module.

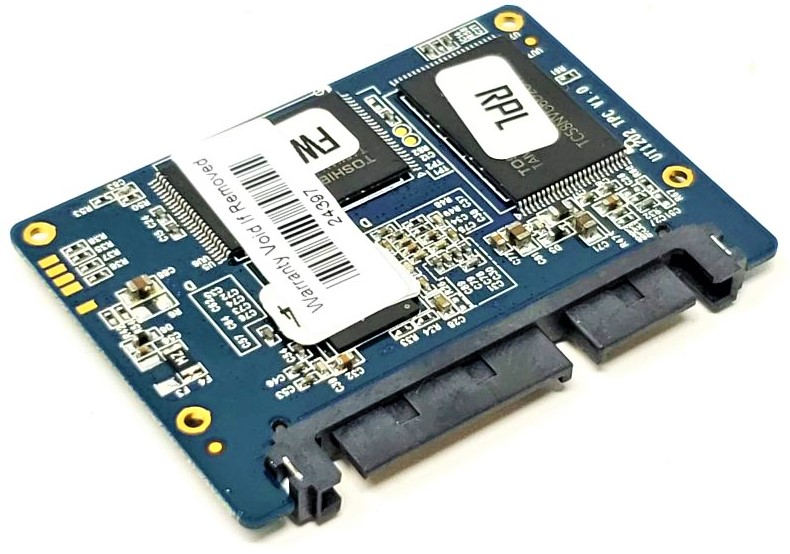

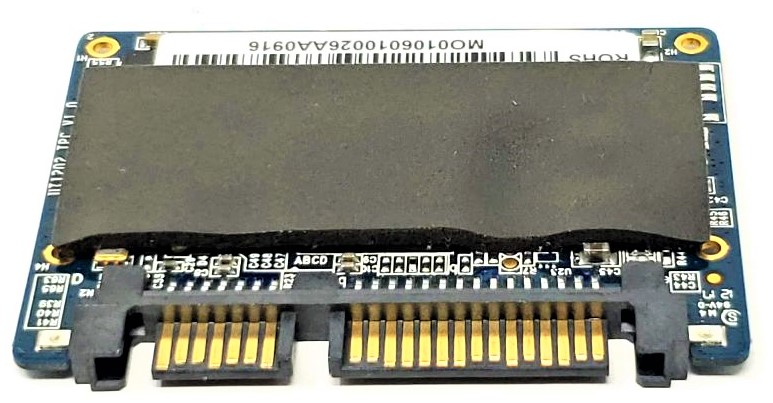

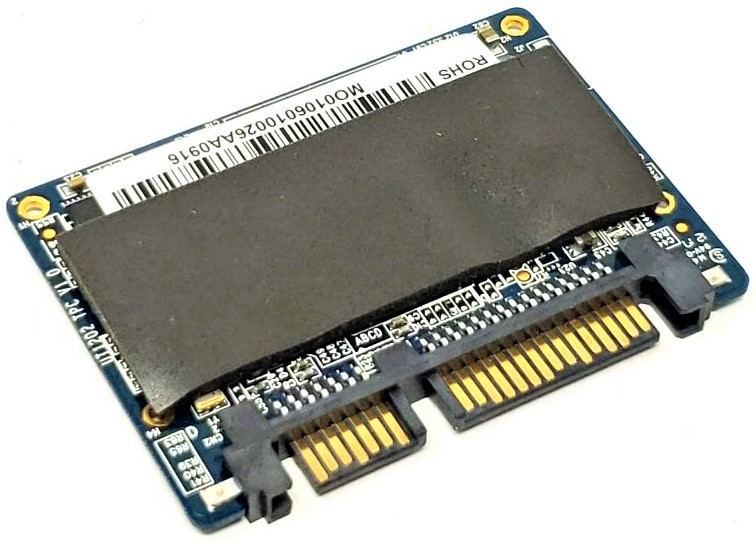

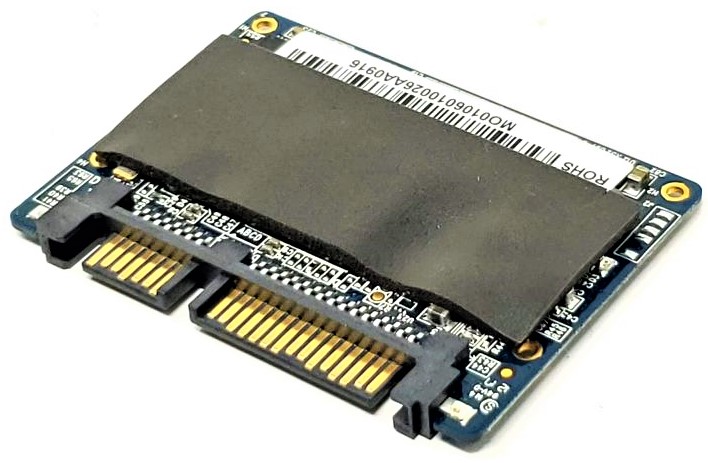

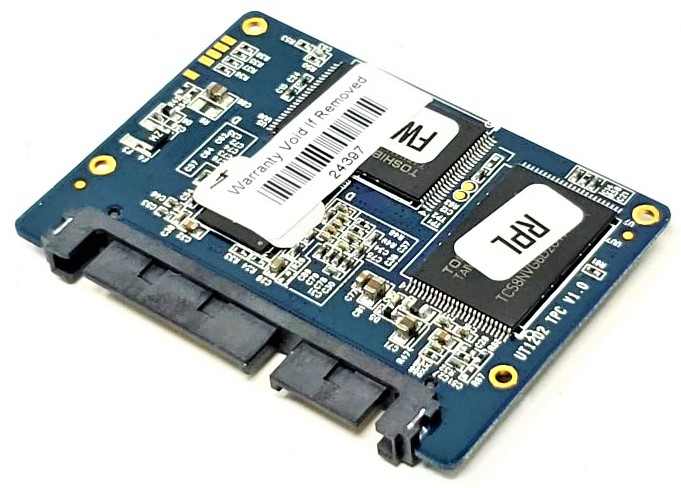

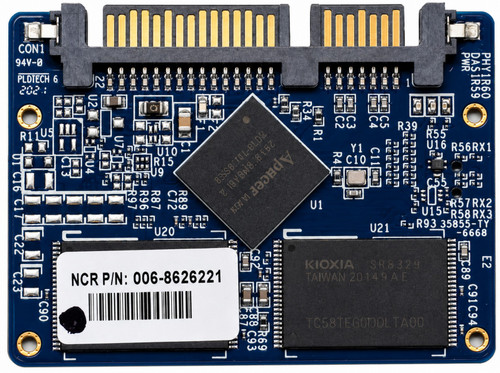

The exposed-board design measures approximately 54mm x 39mm and connects through a standard 22-pin SATA interface. It is substantially smaller than a conventional 2.5-inch SSD while retaining the familiar SATA data and power connector.

Technical Specifications

Capacity: 32GB
Device Type: Industrial / Embedded Solid State Drive
Form Factor: JEDEC MO-297 / MO-297A Half-Slim SATA
Common Market Description: 1.8-Inch Half-Slim SATA SSD
Typical Dimensions: Approximately 54mm x 39mm to 39.8mm x 4mm
Connector: Standard 22-Pin SATA Connector
Data Connection: 7-Pin SATA
Power Connection: 15-Pin SATA
Interface: Serial ATA
SATA Generation: SATA I, SATA II or SATA III depending on the exact manufacturer and revision
Link Speed: Up to 6Gb/s on supported SATA III variants; operates at the host controller’s negotiated speed
Operating Voltage: Model-dependent; 3.3V and 5V variants exist
Operating Temperature: Commercial-temperature and industrial wide-temperature versions exist
Mounting: Four-hole MO-297 PCB mounting pattern
Supported Features: SMART, TRIM, NCQ, wear leveling, ECC, secure erase and power-management support vary by exact model
Software Configuration: Blank storage module unless specifically stated otherwise

Interchangeable / Replacement Part Numbers

FSSD032GSE-M100, FSSD032GSS-M100, FSSD032GPS-SB00, FSSD032GPE-SB00, FSSD032GME-M100, FSSD032GMS-M100, FSSD032GMS-SB00, FSSD032GME-SB00, KD32GF-900SM3, KD32GFI-900SM3, ASDHS-MA2032-ET, ASDHS-HA2032-ET, CHF66DS1905-032, RIS032-SX5AH, SQF-SLMS4-32G-S9C, SQF-SLMS4-32G-S9E, SQF-SLMU4-32G-S9C, SQF-SLMU4-32G-S9E, SQF-SLMM4-32G-S9C, SQF-SLMM4-32G-S9E, SQF-SLMM1-32G-SBC, SQF-SLMM1-32G-SBE, SQF-SLMU2-32G-SBC, SQF-SLMU2-32G-SBE, 96FD-H032PLG, VSF202PI032G-100, VSF202PI032G-110, VSF202PC032G-100, VSF202CI032G-100, SFSA32GBV1BR4TO-I-NC-216-STD, SFSA32GBV1BR4TO-I-NC-236-STD, SFSA32GBV1BR4TO-C-NC-236-STD, SFSA32GBV1BR4TO-C-NC-226-3V3, SFSA32GBV1BR4TO-I-NC-226-3V3, SFSA032GV1AA4TO-C-DB-216-STD, SFSA032GV1AA4TO-I-DB-216-STD, 54-90-20906-032G, SDSA4EH-032G-1003, 54-90-20855-032G, SDSA5AK-032G-1011, SDSA5AK-032G-1014, SDSA5AK-032G-1017, SDSA6AM-032G-1006, SDSA6AM-032G-1008, SD6SA1M-032G-1003, SD6SA1M-032G-1011, SD6SA1M-032G-1111, MMCRE32GSMPP-MVA, SSD-S0032SC-7100, V4SD2SC-32UIU, A87L-0001-0209#032G, FML032MURM, ISM31-032GM

✅ Confirmed Compatibility

Please note that this list is not exhaustive. Compatibility is confirmed only for the listed platform and storage configuration. Verify the installed bracket, connector orientation, operating voltage, firmware requirements and original drive specification before ordering.

✔️ Oracle MICROS Workstation 610: Standard 32GB MO-297 Slim SATA configuration
✔️ NCR P1532 POS / Model 7734: 32GB SATA MO-297 configuration
✔️ CONTEC DS-380 Digital Signage Players: DS-380D-DC741D, DS-380D-DC741E, DS-380D-DC7512, DS-380D-DC7516, DS-380D-DC7517, DS-380D-DC7518
✔️ FANUC PANEL i Systems: PANEL i and PANEL i Thin-Type configurations requiring 32GB A87L-0001-0209#032G Half-Slim SATA storage
✔️ Oracle MICROS Workstation 610: Configurations using 32GB or 64GB MO-297 Slim SATA storage
✔️ Oracle MICROS Workstation 620: Configurations equipped with the optional MO-297 Slim SATA storage module
✔️ Oracle MICROS Workstation 650: Configurations equipped with the optional MO-297 Slim SATA storage module
✔️ NCR P1532 POS / 7734 Platform: Configurations using the 32GB SATA MO-297 storage feature
✔️ Axiomtek GOT5103W-845 / GOT5103W-845-PCT-J: Systems equipped with the Half-Slim SSD kit
✔️ Axiomtek MPC103-845 / MPC103-845-PCT-J: Systems equipped with the Half-Slim SSD bracket and cabling
✔️ Axiomtek MPC153-834: Configurations using the Half-Slim SATA SSD option
✔️ Cincoze DA-1000 Series: Systems equipped with the HBK01 Half-Slim SSD bracket
✔️ Cincoze DA-1100 Series: Systems configured for the Half-Slim SATA 3.0 storage option
✔️ Cincoze DA-1200 Series: Systems configured for the Half-Slim SATA storage option
✔️ Cincoze DC-1200 Series: Systems configured for the Half-Slim SATA storage option
✔️ Cincoze DC-1300 Series: Systems configured for the Half-Slim SATA 3.0 storage option
✔️ NAT-MCH-PHYS80-Q: Configurations equipped with the optional Half-Slim SATA SSD
✔️ NAT-MCH-PHYS80 with RTM-FPGA: Requested storage configurations supporting up to two Half-Slim SATA SSDs in RAID
✔️ EKF PC3-ALLEGRO: Systems using the PCS-BALLET Half-Slim SATA carrier or mezzanine
✔️ FANUC PANEL i / PANEL i Thin-Type: Systems originally specified for 32GB storage module A87L-0001-0209#032G

✔️ Additional MO-297 Host Compatibility

The following systems document a Half-Slim MO-297/MO-297A SATA bay or socket. Verify that a 32GB capacity meets the system’s operating-system image, firmware, endurance, and temperature requirements.

✔️ Oracle MICROS Workstations: Workstation 620 and Workstation 650 when equipped with the optional MO-297 Slim SATA storage configuration
✔️ Axiomtek Panel Computers: GOT5103W-845-PCT-J; MPC103-845-PCT-J; MPC153-834-FR-DC, MPC153-834-PCT-DC, MPC153-834-FR-J, MPC153-834-PCT-J
✔️ APLEX Industrial Systems: ARCHMI-807APR, ARCHMI-807APR-H, ARCHMI-808APR, ARCHMI-808APR-H, ACS-2310A and ACS-2311A units ordered with optional MO-297 storage
✔️ Acnodes Industrial Panel PCs: PC9070, PC9080, PC9101, PC9120A, PC9150A, PC9156 A-configuration, PC9156 B-configuration, PC9156B, PC9215 A-configuration and PC9215 B-configuration
✔️ iTech Industrial Panel PCs: BBC0700N-GD02, BBC0700N-V2, AHM0800-AT and matching configurations equipped with the MO-297 SATA bay
✔️ Cincoze Embedded Computers: DA-1000 with HBK01 Half-Slim bracket, DA-1100, DA-1200, DC-1200 and DC-1300 when configured for Half-Slim SATA storage
✔️ Parker PowerStation Systems: XT, IX and PCA PowerStation configurations containing the 1.8-inch MO-297 SATA II SSD bay
✔️ Advantech AdvancedTCA Systems: MIC-5345 single-socket extended-storage configuration; RTM-5104M00E; MIC-5332 systems equipped with an RTM-5104 MO-297A storage tray
✔️ N.A.T. MicroTCA Systems: NAT-MCH-PHYS80-Q; NAT-MCH-PHYS80 with NAT-MCH-RTM; NAT-MCH-RTM-BM and NAT-MCH-RTM-BM-FPGA configurations ordered with Half-Slim SATA storage
✔️ EKF CompactPCI Systems: PC3-ALLEGRO equipped with the PCS-BALLET Half-Slim SATA storage configuration
✔️ TOPSCCC Industrial Panel PCs: EX91907B, EX91907BP, EX91908B and EX91908BP configurations containing an MO-297 SATA bay

✔️ Additional Compatible Applications

Compatible only when the equipment specifically calls for a 32GB MO-297/MO-297A Half-Slim SATA module with the standard 22-pin SATA connection and matching mounting arrangement.

✔️ Point-of-sale terminals and hospitality workstations
✔️ Restaurant ordering and payment terminals
✔️ Digital-signage players and advertising controllers
✔️ Industrial panel PCs and touchscreen HMI terminals
✔️ Factory-automation controllers and machine interfaces
✔️ CNC controllers and operator-panel computers
✔️ Robotics and machine-vision controllers
✔️ Casino gaming, slot-machine and video-gaming terminals
✔️ Arcade and amusement-machine control systems
✔️ Self-service kiosks, ticketing terminals and check-in stations
✔️ Vending, payment and retail automation systems
✔️ Medical panel computers and point-of-care terminals
✔️ Diagnostic, laboratory and healthcare equipment
✔️ Fanless embedded computers and industrial edge controllers
✔️ Thin-client and compact OEM computing systems
✔️ ATCA server blades and rear-transition storage modules
✔️ CompactPCI and MicroTCA carrier systems
✔️ Networking, telecommunications and storage appliances
✔️ Surveillance, DVR and video-recording controllers
✔️ Transportation, rail, fleet and vehicle-mounted computers
✔️ Data-acquisition, test, measurement and physics-instrumentation systems
✔️ Embedded boot drives, operating-system drives and recovery-image storage

☑️ Key Features

☑️ Compact 32GB solid-state storage with no moving components
☑️ JEDEC MO-297 / MO-297A Half-Slim form factor
☑️ Standard 22-pin SATA data and power connection
☑️ Approximately 54mm x 39mm board footprint
☑️ Suitable for native Half-Slim SATA slots and properly configured mounting carriers
☑️ Available across commercial and industrial temperature grades
☑️ Suitable for boot storage, operating-system images, machine programs, configuration data, logging and embedded applications
☑️ SATA III versions can negotiate with compatible SATA II and SATA I controllers at the host’s supported speed

⚙️ Fit Notes

• Confirm that the original drive is a 32GB JEDEC MO-297 or MO-297A Half-Slim SATA module before ordering.
• This is not an mSATA or MO-300 module. The connectors, dimensions and mounting arrangement are different.
• This is not an M.2 SATA drive, M.2 NVMe drive, CFast card, SATA DOM, Micro SATA drive or Slimline SATA optical-drive module.
• The “1.8-inch” description is common market terminology. The actual exposed circuit board measures approximately 54mm x 39mm and is not a cased 1.8-inch drive.
• A standard SATA connector alone does not confirm compatibility. Verify the MO-297 mounting-hole pattern, connector orientation, available clearance and required bracket.
• Some Half-Slim modules operate from the SATA connector’s 5V rail, while certain revisions use 3.3V. Confirm the voltage requirement printed on the original drive and the power supplied by the host.
• Form-factor-compatible part numbers can use different controllers, NAND types, temperature grades, firmware, security features and power-management behavior.
• OEM industrial, POS, CNC and gaming systems may require qualified firmware, a specific ATA security state or an approved storage-device identification string.
• A blank replacement drive does not include an operating system, recovery partition, CNC program, POS image, casino or arcade software, license, machine configuration or proprietary firmware.
• Clone the original drive whenever possible or obtain the correct authorized recovery image before removing it.
• Replacement drives may require initialization, partitioning and formatting before they appear in an operating system.
• Mounting brackets, carriers, cables, screws and adapters are not included unless specifically stated in the listing.
• Reported usable capacity will be lower than the advertised 32GB after formatting.
