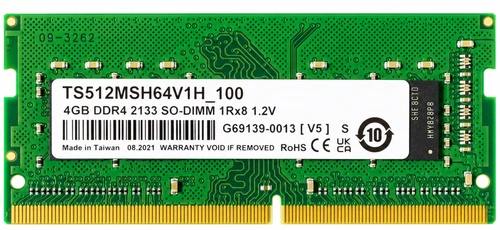

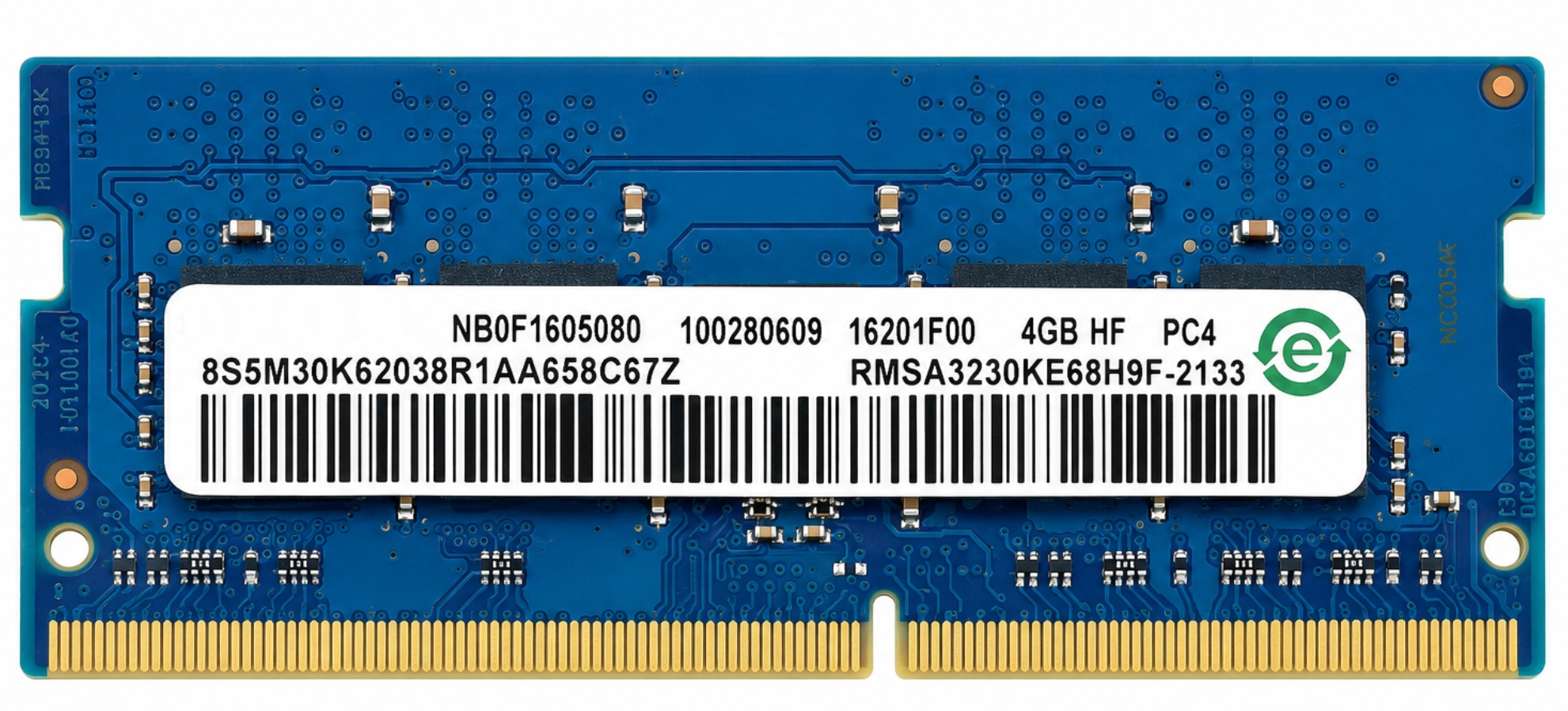

4GB PC4-2133P DDR4-2133 1Rx8 260-Pin Non-ECC SODIMM Laptop Memory

This 4GB DDR4-2133 memory module is a direct replacement for compatible laptops, mobile workstations, mini PCs, all-in-one computers, NAS appliances, and embedded systems requiring a 260-pin PC4-2133P 1Rx8 SO-DIMM. It operates at 1.2V and provides up to 17GB/s of memory bandwidth in a compact laptop-size form factor.

Technical Specifications

• Capacity: 4GB
• Memory Type: DDR4 SDRAM
• Speed: 2133 MT/s
• PC Rating: PC4-17000 / PC4-2133P / DDR4-2133
• Photographed Label: PC4-2133P-SAB-11
• Form Factor: 260-Pin SO-DIMM
• Rank / Organization: 1Rx8
• Component Organization: Typically 512M x 8
• Error Correction: Non-ECC
• Buffering: Unbuffered
• Voltage: 1.2V
• CAS Latency: JEDEC CL15
• Typical Timing: 15-15-15
• Maximum Theoretical Bandwidth: Approximately 17GB/s
• Module Size: Standard laptop SO-DIMM
• Package Includes: One 4GB memory module

Interchangeable / Replacement Part Numbers

MTA8ATF51264HZ-2G1, MTA8ATF51264HZ-2G1A1, MTA8ATF51264HZ-2G1A2, MTA8ATF51264HZ-2G1B1, M471A5143DB0-CPB, M471A5143DB0-CPB00, M471A5143EB0-CPB, M471A5143EB1-CPB, HMA451S6AFR8N-TF, HMA451S6AFR8N-TFN0, HMA451S6AFR8N-TFN0-AB, HMA451S6AFR8N-TFN0-AC, HMA451S6CFR8N-TF, KVR21S15S8/4, KVR21S15S8/4-SP, KCP421SS8/4, TS512MSH64V1H, TS512MSH64V1H-I, CT4G4SFS8213, CT4G4SFS8213.8FA2, CT4G4SFS8213.C8FBD1, CT4G4SFS8213.C8FBD2, AD4S2133W4G15-B, AD4S2133W4G15-BSSD, AD4S2133W4G15-BHYM, AD4S2133W4G15-BHYA, F4-2133C15S-4GRS, TED44G2133C15-S01, TED44G2133C15-SBK, PSD44G213381S, 78.B2GF0.4000B, SH5126SO451851-HA, SQR-SD4N-4G2K1HEC, M4S0-4GSSNCRG, M4S0-4GSSNCRG-B273, M4S0-4GSSNCRG-IND, PZD42133C154GVS, GR4S4GB213S8C, CMSO4GX4M1A2133C15, F21SA4GS, RMSA3230KE68H9F-2133, 2S1D41R804GB, 2S1D41R804GB-B592, V7170004GBS, RDB84SRCA1HF2.00G04, M4L-PC42133ND4S815S-4G, T0H89AA-AX, P1N53AA-AX, T7B76AA-AX, A8547952-AX, INT2133SZ4G-AX, AA2133D4SR8S/4G, T7B76AA-ATC, P1N53AA, P1N53AT, 820569-001, T0H89AA, T7B76AA, 834940-001, 798036-001, 799086-361, FDMRM, SNPFDMRMC/4G, A8547952, 4X70J67434, 03X7048, KN.4GB07.029, KN.4GB0G.036, KN.4GB0B.036, KN.4GB0B.041, KN.4GB0C.013, 03A08-00040000, 03A08-00040200, 03A08-00040300, S26391-F1502-L400, S26391-F1552-L400, S26391-F2153-L400, PA5282U-1M4G, CF-BAZ1704, RAM-4GDR4K0-SO-2133, S26361-F3393-E350, P000723410, P000720970, P000720960, AM4GB2133SO-AC242, FUJ:CA46212-5600-HY, S26391-F2233-L400-HY, 497-0509803, 7607-K134

✔️ Confirmed Compatibility

Compatibility applies to configurations using removable 260-pin DDR4 SO-DIMM memory. Some similarly named systems were sold with DDR3L, soldered-only memory, 288-pin desktop DIMMs, ECC memory, or different CPU-dependent speeds. Verify the installed module, service manual, processor configuration, and available memory slot before ordering.

Business and General-Purpose Laptops

✔️ Latitude: E5270, E5470, E5570, E7270, E7470, 5280, 7480
✔️ Vostro: 14 3468 and 15 3568 configurations using DDR4-2133
✔️ Inspiron: 3481, 3595, 5566, and other configurations originally using PC4-2133P SO-DIMM memory
✔️ EliteBook: 820 G3, 840 G3, 850 G3
✔️ ProBook: 430 G3, 440 G3, 450 G3, 470 G3 in DDR4-equipped configurations
✔️ ThinkPad: T460s, T460p, X260, ThinkPad 13 Gen 1, ThinkPad 13 Gen 2, E470, E570
✔️ Aspire: E5-475, E5-475G, E5-575, E5-575G, E5-774, E5-774G, F5-573, F5-573G in DDR4-equipped configurations
✔️ TravelMate: P249-M, P249-MG, P259-M, P259-MG in configurations using 260-pin DDR4 memory
✔️ Additional OEM Systems: Compatible systems whose original memory or parts list specifies KN.4GB07.029, KN.4GB0G.036, KN.4GB0B.036, KN.4GB0B.041, KN.4GB0C.013, 03A08-00040000, 03A08-00040200, 03A08-00040300, PA5282U-1M4G, or CF-BAZ1704

Mobile Workstations

✔️ Precision: 3510
✔️ Precision: 7510 and 7710 in non-ECC configurations only
✔️ Precision 5520: Compatible with documented 2133MHz configurations; two matching 4GB modules are required to meet the documented 8GB minimum
✔️ ZBook: 15 G3, 17 G3, and 15 G4 in non-ECC configurations
✔️ ThinkPad P Series: P50 and P70 in non-ECC configurations
✔️ ThinkPad P51s: Compatible with configurations whose processor and memory controller operate the SO-DIMM at 2133MHz

Gaming and Creator Laptops

✔️ Alienware 15 R2: Compatible with configurations using FDMRM or an equivalent non-ECC 4GB DDR4-2133 1Rx8 SO-DIMM
✔️ MSI GS Series: GS72 6QC Stealth, GS72 6QE Stealth Pro, GS32 6QE Shadow
✔️ MSI GL Series: GL62 6QC, GL62 6QD
✔️ MSI GP Series: GP62 6QE Leopard Pro
✔️ MSI GE Series: GE62VR 6RF Apache Pro
✔️ MSI GT Series: GT72S 6QF Dominator Pro, GT80S 6QE Titan SLI, GT80S 6QF Titan SLI
✔️ MSI Workstation Series: WT72 6QN in non-ECC configurations
✔️ MSI CR Series: CR62 7ML

Compact Desktops and All-in-One Systems

✔️ OptiPlex Micro: 7040 Micro
✔️ OptiPlex Micro: 3050 Micro, 5050 Micro, and 7050 Micro in processor configurations operating memory at 2133MHz
✔️ OptiPlex 5250 All-in-One: Compatible with 6th-generation processor configurations operating at 2133MHz
✔️ EliteDesk: 800 G2 Desktop Mini
✔️ ProDesk: 400 G2 Desktop Mini and 600 G2 Desktop Mini
✔️ EliteOne: 800 G2 All-in-One configurations using DDR4-2133 SO-DIMM memory
✔️ ThinkCentre Tiny: M700 Tiny, M900 Tiny, M900x Tiny
✔️ ThinkCentre Tiny: M710 Tiny, M910 Tiny, and M910x Tiny in 2133MHz processor configurations
✔️ VivoMini: VM65, VM65N
✔️ Z1 G3 All-in-One Workstation: Non-ECC configurations using 260-pin DDR4 SO-DIMM memory

Intel NUC Kits and Boards

✔️ NUC6 Kits: NUC6i3SYH, NUC6i3SYK, NUC6i5SYH, NUC6i5SYK, NUC6i7KYK
✔️ NUC6 Boards: NUC6i3SYB, NUC6i5SYB, NUC6i7KYB
✔️ NUC7 Kits: NUC7i3BNH, NUC7i3BNK, NUC7i5BNH, NUC7i5BNK, NUC7i7BNH, NUC7i3DNHNC
✔️ NUC7 Boards: NUC7i3BNB, NUC7i5BNB, NUC7i7BNB

BRIX and Embedded Mini PCs

✔️ BRIX: GB-BSi5HA-6200
✔️ BRIX Gaming: GB-BNi5HG6-1060, GB-BNi7HG6-1060
✔️ Embedded BRIX: GB-EKi3A-7100, GB-EKi3M-7100
✔️ BRIX Kaby Lake: GB-BKi5HT2-7200, GB-BKi5T2-7200

NAS and Storage Appliances

✔️ QNAP TVS-x73: TVS-473, TVS-673, TVS-873
✔️ QNAP TVS-x73e: TVS-473e, TVS-673e, TVS-873e
✔️ QNAP TVS-882ST: TVS-882ST2, TVS-882ST3
✔️ General QNAP Support: Systems whose approved memory list specifies RAM-4GDR4K0-SO-2133

Retail Thin Mini-ITX and STX Motherboards

✔️ ASUS: H110T, Q170T, Q170T/CSM, Q170S1
✔️ ASRock: H110TM-ITX, H110TM-ITX R2.0
✔️ ASRock STX: H110M-STX, H110M-STX/COM
✔️ ASRock DeskMini: DeskMini 110, DeskMini 110W, DeskMini 110/COM
✔️ Gigabyte Thin Mini-ITX: GA-IMB370TN, GA-IMB4100TN, GA-H310TN, GA-H310TN-CM, GA-H310TN-R2

Industrial and Embedded Motherboards

✔️ ASRock Industrial: IMB-193, IMB-194-L, IMB-194-D, IMB-195, IMB-195-D, IMB-198P, IMB-198M, IMB-199V
✔️ ASRock Industrial Barebone: Jupiter H110
✔️ MSI Industrial: MS-98F7, MS-98H3
✔️ General Embedded Support: Compatible industrial computers, panel PCs, kiosks, digital-signage systems, robotics controllers, and compact embedded systems specifying 4GB 1Rx8 PC4-2133P 260-pin non-ECC SO-DIMM memory

Configuration-Dependent 2133MHz Operation

✔️ Latitude 5480 and 5580: Dual-core processor configurations operate memory at 2133MHz; quad-core configurations normally operate at 2400MHz
✔️ Latitude 7290, 7390, and 7490: Seventh-generation processor configurations operate supported SO-DIMM memory at 2133MHz
✔️ ProBook 440 G5: Seventh-generation processor configurations operate at 2133MHz; eighth-generation configurations normally operate at 2400MHz
✔️ ThinkPad: T470, T470s, T570, L470, L570, X270, and P51s in documented 2133MHz configurations
✔️ General Downclocking Support: Faster-capable platforms may operate this module at 2133MHz when 2133 is supported by the processor and BIOS; compatibility is not guaranteed solely because the system accepts DDR4

☑️ Key Features

☑️ Exact 4GB PC4-2133P DDR4-2133 memory class
☑️ Single-rank 1Rx8 organization
☑️ Standard 260-pin laptop SO-DIMM form factor
☑️ Low 1.2V DDR4 operating voltage
☑️ Non-ECC and unbuffered for supported client systems
☑️ Suitable for single-module replacements or matched-pair upgrades
☑️ Broad OEM service-part and manufacturer cross-reference coverage
☑️ Compatible with laptops, workstations, mini PCs, AIOs, NUC systems, NAS appliances, and embedded motherboards
☑️ No special driver or software installation required

⚙️ Fit Notes

• Confirm that the system requires a 260-pin DDR4 SO-DIMM, not a 288-pin desktop DIMM.
• This listing is specifically for 1Rx8 memory. Do not substitute a 1Rx16 or 2Rx8 module when the system or application requires the exact 1Rx8 organization.
• This is non-ECC, unbuffered memory. It cannot be mixed with ECC memory and should not be installed in an ECC-only system.
• It is not compatible with DDR3, DDR3L, DDR5, registered DIMM, RDIMM, LRDIMM, or desktop UDIMM sockets.
• Actual operating speed is controlled by the processor, chipset, BIOS, and other installed memory.
• When mixed with slower memory, all installed modules normally operate at the slowest mutually supported speed.
• Matching capacity, rank, speed, and timings is recommended for dual-channel operation.
• Certain thin laptops combine soldered memory with one removable SO-DIMM slot. Install this module only in the removable slot.
• Some systems sharing the same model family were manufactured with different memory technologies. Verify the current module before purchase.
• Disconnect external power and the internal battery where service procedures require it before installing memory.
