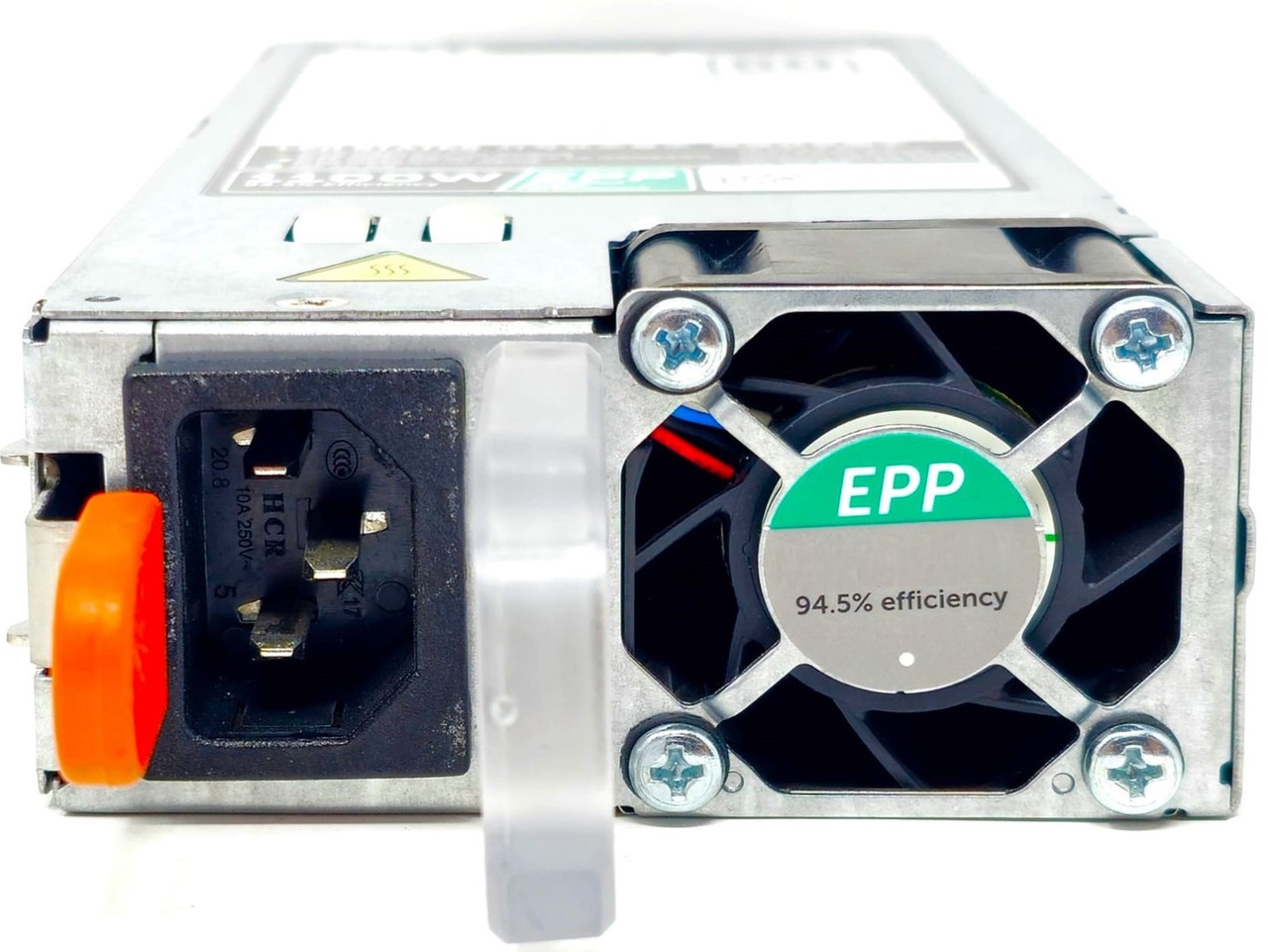

1600W 80 Plus Platinum Hot-Plug Power Supply for PowerEdge FX2 T630 R740 R940

This genuine OEM 1600W Extended Power Performance hot-plug power supply is designed for compatible PowerEdge servers, modular enclosures, rack workstations, XC appliances and ready-node configurations. It supplies its full 1600W capacity on 200–240V high-line power and operates at a reduced maximum of 800W on 100–120V input.

✔️ Genuine OEM Power Supply!
✔️ Grade A, Cleaned and Fully Tested!
✔️ Includes CPU Medics Standard Warranty!

Technical Specifications

• Maximum Output Power: 1600W on 200–240V high-line input
• Low-Line Output Capacity: 800W on 100–120V input
• Efficiency Rating: 80 PLUS Platinum
• Power Performance: Extended Power Performance (EPP)
• AC Input: 100–240V AC, 50/60Hz, 10A
• Low-Line DC Output: +12.2V at 65.57A
• High-Line DC Output: +12.2V at 131.15A
• Standby Output: +12VSB at 3.5A
• Maximum Inrush Current: 25A
• Heat Dissipation: Up to 6000 BTU/hr
• Form Factor: 1U hot-plug redundant server PSU module
• System Connection: Proprietary card-edge/backplane connector
• AC Inlet: IEC 60320 C14
• Required Power-Cord Connector: IEC 60320 C13 female equipment connector
• Cooling: Integrated cooling fan
• Package Contents: One power supply only
• Power Cable: Not included; sold separately

Interchangeable / Replacement Part Numbers

OEM / Kit References: 95HR5, 095HR5, C95N6, 0C95N6, 750-ABBR, 685W7, 0685W7, TW16K, 0TW16K, T4GCW, 0T4GCW, D5W1N, 0D5W1N

Manufacturer Model References: D1600E-S0, DPS-1500EB A, DPS-1500EBA, DPS-1500EB B, DPS-1500EBB, F1600E-S0, S-1600ADE00-101

⭐ Related Parts and Cross-Sell

The power cable is not included and is sold separately. The following rack-PDU cable has an IEC C13 female connector for the PSU and an IEC C14 male PDU connector:

➕ VJT0P - 6 FT IEC C14 to IEC C13 Rack Power Cord

✅ Confirmed Compatibility

Compatibility depends on the installed PSU generation, firmware branch, EPP feature label and input-voltage configuration. For redundant operation, matching power supplies should be installed.

✔️ Modular and GPU Platforms: PowerEdge C4130, FX2, FX2s
✔️ PowerEdge Rack Servers: R640, R740, R740xd, R7415, R7425, R7515, R830, R840, R940, R940xa
✔️ PowerEdge Tower Servers: T630, T640
✔️ Rack Workstations: Precision 7920 Rack, Precision 7920 XL Rack
✔️ vSAN Ready Nodes: R640 Ready Node, R740 Ready Node, R740xd Ready Node, R7515 Ready Node, R840 Ready Node
✔️ XC Core Systems: XC640, XC740xd, XC940
✔️ XC Series Appliances: XC640, XC740xd, XC940
✔️ OEM-Ready Systems: OEMR R640, R740, R740xd, R7415, R7425, R7515, R830, R840, R940, R940xa, T630, T640
✔️ OEM-Ready XL Systems: OEMR XL R640, R740, R740xd, T640
✔️ Additional Exact-Revision Applications: PowerEdge VRTX and C6400 chassis configurations originally equipped with the matching 1600W EPP PSU
✔️ C6400 / C6420 Configurations: The power supply installs in the C6400 chassis supporting the C6420 compute sled; it does not install directly in the sled
✔️ 685W7 / DPS-1500EB B Firmware Applications: DSS 7500 and SD7000-S configurations using this exact PSU revision

☑️ Key Features

☑️ Genuine OEM 1600W server power supply
☑️ 80 PLUS Platinum efficiency rating
☑️ Full 1600W output on 200–240V high-line input
☑️ Supports reduced 800W operation on 100–120V input
☑️ Hot-plug and redundant-operation capable in supported systems
☑️ Integrated cooling fan and card-edge output connector
☑️ Supports multiple OEM and manufacturer-model revisions
☑️ Designed for compatible PowerEdge, Precision, XC, vSAN and OEM-Ready systems

⚙️ Fit Notes

• Full 1600W capacity requires a 200–240V high-line power source. Output is limited to 800W on 100–120V input.
• The linked VJT0P cable is intended for a compatible rack PDU. Verify that the PDU supplies the required 200–240V input before installation.
• For another facility connection, use a properly rated power cord with an IEC C13 female equipment connector.
• The power cable is not included and is sold separately.
• This is a proprietary hot-plug server PSU and is not a standard ATX desktop power supply.
• Redundant power supplies should match in maximum output, generation, efficiency class, EPP feature label, supplier revision and supported input range.
• The 685W7 revision has a distinct documented firmware application branch. Match the original DPN and firmware whenever possible.
• Update the applicable system firmware, iDRAC or chassis-management firmware when required.
• Hot-swapping should be performed only when system redundancy and operating load permit it.
• Compare the original PSU label, handle, latch, card-edge connector and complete part number before ordering.
