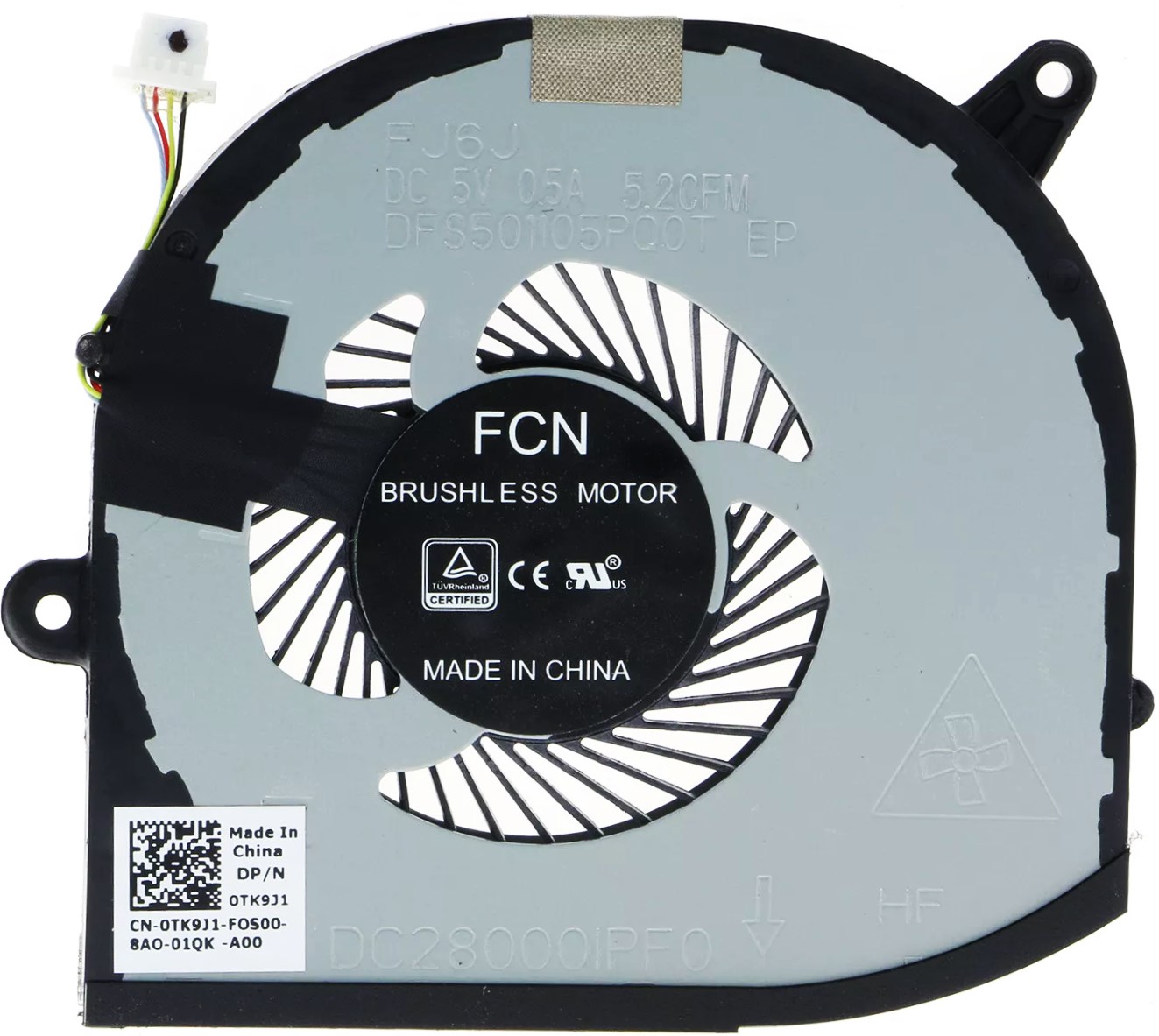

TK9J1 / 0TK9J1 - 5V 0.5A Right-Side GPU Cooling Fan for XPS 15 9560 9570 Precision 5520 5530

This right-side cooling fan is designed for compatible XPS 15 and Precision 15 laptops using the TK9J1 fan assembly. It cools the graphics processor side of the heatsink and is rated for 5V DC at 0.5A.

The right-side and left-side fans are different assemblies. Check the original fan part number and position before ordering.

Technical Specifications

• Product Type: Internal laptop cooling fan
• Primary Part Number: TK9J1
• Alternate Part Number: 0TK9J1
• Fan Position: Right side
• Cooling Position: Graphics processor / GPU side of the heatsink
• Rated Voltage: 5V DC
• Rated Current: 0.5A
• Connection: Fan cable with multi-pin connector
• Application: Compatible laptop cooling assemblies using the matching right-side fan
• Package Contents: One right-side cooling fan; heatsink and left-side fan sold separately unless shown

Interchangeable / Replacement Part Numbers

TK9J1, 0TK9J1, DC28000IPD0, DC28000IPF0, DFS201105PR0T

⭐➕ Matching Left-Side Cooling Fan

This fan works as part of a two-fan cooling assembly. If the left-side fan also needs replacement, it is available separately:

08YY9 Left-Side Cooling Fan for XPS 15 9560 9570 7590 Precision 5530

The left and right fans are separate parts. Match the position and part number on the fan being replaced.

✅ Confirmed Compatibility

✔️ XPS 15: 9560, 9570
✔️ Precision 15: 5520, 5530

XPS 15 7590 note: Do not select this fan based on laptop model alone. The 7590 is also documented with right-side fan V9H8N. Confirm the original fan’s part number and connector before ordering.

☑️ Key Features

☑️ Right-side graphics cooling fan assembly
☑️ 5V DC operation
☑️ 0.5A rated current
☑️ Replacement references include TK9J1 and 0TK9J1
☑️ Compatible left-side fan available separately
☑️ Designed for the matching laptop heatsink and fan mount

⚙️ Fit Notes

• Confirm TK9J1, 0TK9J1, or a listed assembly number on the original fan when possible.
• Verify that the failed fan is the right-side GPU fan; the left-side fan uses a different part.
• Compare the fan housing, mounting points, cable length, connector shape, and pin arrangement with the original.
• Do not select by laptop model alone when replacing a fan in an XPS 15 7590; confirm the fan label first.
• Disconnect the AC adapter and internal battery before servicing the cooling assembly.
• Keep the fan cable routed as originally installed and clear of the blades.
• Reinstall the heatsink and cooling components according to the applicable service procedure.
