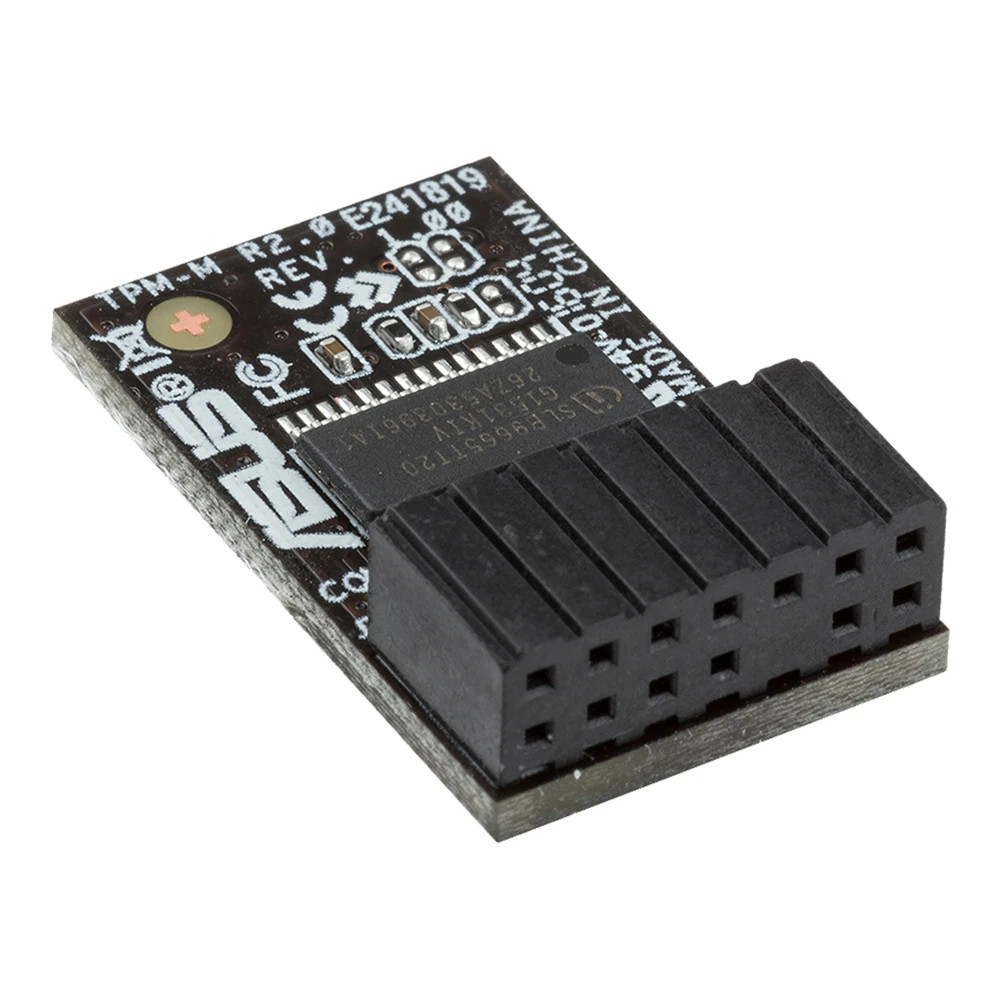

TPM-M R2.0 – 14-1 Pin LPC TPM 2.0 Module – Trusted Platform Module
Hardware root-of-trust add-in card for motherboards that feature a 14-1 pin LPC TPM header. Enables BitLocker, secure key storage, and platform integrity functions on supported systems.
Technical Specifications
- Interface/Header: 14-1 pin LPC TPM header (board silkscreened “TPM”)
- TPM Version: 2.0
- Form Factor: Small plug-in daughtercard
- Functions: Secure key storage, device identity, attestation, measured boot
- System Requirements: Motherboard with LPC TPM header and BIOS/UEFI support for discrete TPM
- Typical OS Support: Windows with TPM 2.0 features (BitLocker, Device Encryption), Linux distributions with tpm2 tooling
Interchangeable / Replacement Part Numbers
- TPM-M R2.0
- 90MC03W0-M0XBN1
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️ Motherboards that include a 14-1 pin LPC header labeled “TPM”
✔️ Systems documented to support TPM-M R2.0 or equivalent LPC TPM 2.0 module
✔️ Platforms requiring a discrete TPM 2.0 device for security and compliance features
☑️ Key Features
- ☑️ Hardware-based security for encryption keys and credentials
- ☑️ Drop-in installation to standard LPC TPM headers
- ☑️ UEFI-ready for modern secure-boot and attestation workflows
- ☑️ Broad ecosystem support for enterprise security tooling
⚙️ Fit Notes
- This module is for LPC (TPM) 14-1 pin headers. Some boards use SPI_TPM headers that require a different card; confirm header type and pinout in your board manual.
- Observe Pin 1 orientation when seating the module.
- In BIOS/UEFI, enable the discrete TPM option (disable firmware TPM such as PTT/fTPM if required by your board).
- After installation, clear or initialize TPM in BIOS if the OS requests it before enabling BitLocker or similar features.
