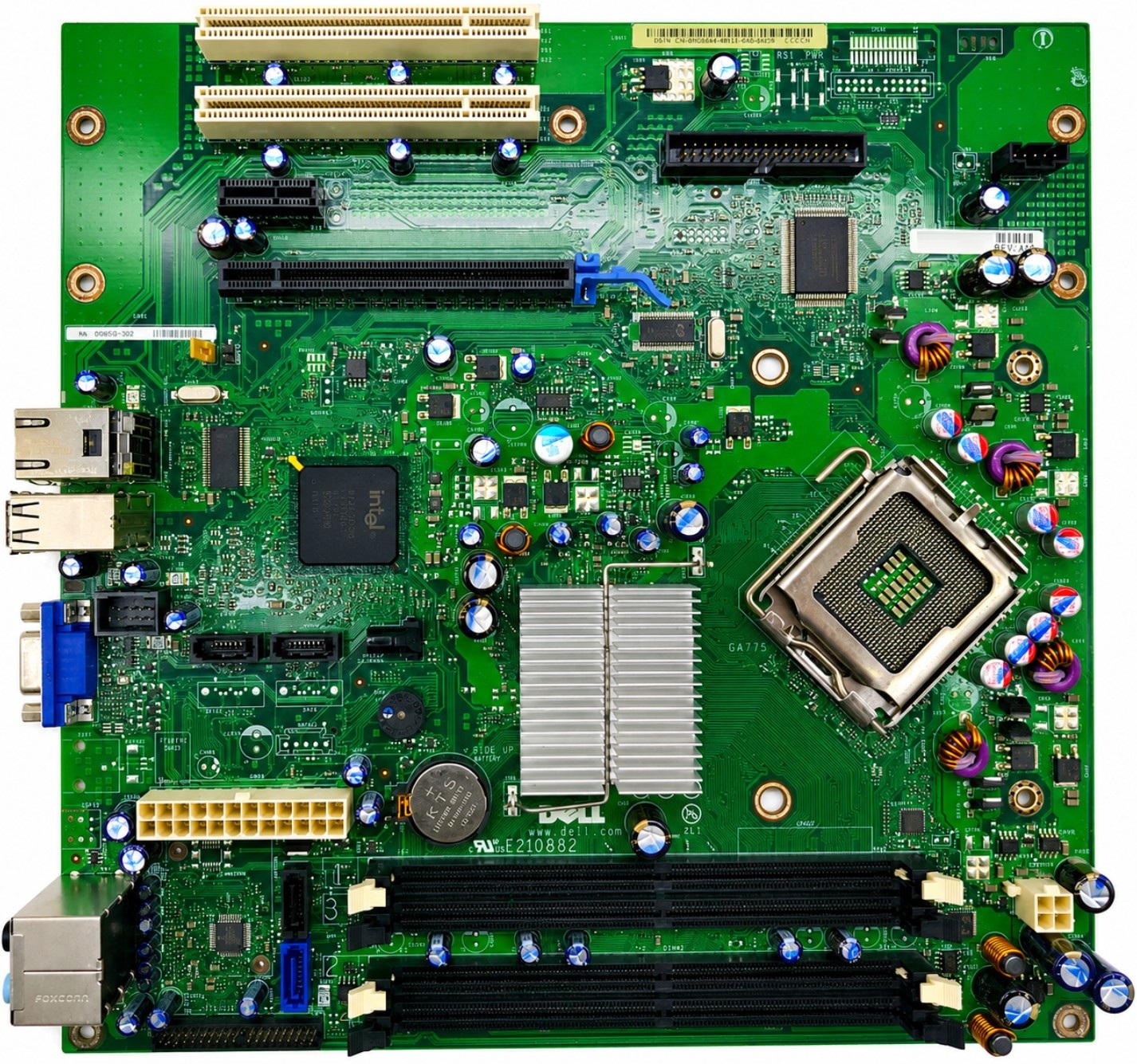

WG864 Motherboard System Board Mainboard for Dimension E520 5200 Tower
Replacement motherboard / system board for compatible Dimension E520 and Dimension 5200 desktop tower systems using the WG864 / 0WG864 board. This mainboard is designed for matching OEM tower chassis configurations with Socket LGA775 processor support, DDR2 memory, SATA storage, PCI Express expansion, and the same rear I/O layout, mounting points, and internal connector layout.
Technical Specifications
- Primary Part Number: WG864
- Alternate Part Number: 0WG864
- Part Type: Motherboard / system board / mainboard
- Compatible System Type: Desktop tower system board
- Processor Socket: Socket T / LGA775
- Supported Processor Families: Intel Pentium 4, Pentium D, Core 2 Duo
- Chipset: Intel 965 chipset family
- Memory Type: DDR2 unbuffered SDRAM.
- Module Capacities: Supports 256 MB, 512 MB, or 1 GB non-ECC sticks
- Memory Slots: 4x DDR2 DIMM slots
- Supported Memory Speeds: 533MHz and 667MHz DDR2
- Maximum Memory: 4GB total capacity (1GB max per slot)
- Storage Interface: Serial ATA / SATA
- Onboard Video: Integrated Intel graphics with VGA output
- Onboard Audio: Integrated audio with 7.1 channel support
- Network: Integrated RJ-45 Ethernet
- Expansion Support: PCI Express x16, PCI Express x1, and PCI slots
- CMOS Battery Type: 3V CR2032 coin cell
- Installation Type: Internal chassis-mounted desktop motherboard
- Application Type: Replacement system board for compatible desktop tower systems
Connector & Expansion Layout
- Main Power Connector: System board main power connector
- CPU Power Connector: 12V processor power connector
- Memory Connectors: 4x DDR2 DIMM slots
- SATA Connectors: 4x 7-pin SATA connectors
- Floppy Connector: 33-pin floppy drive connector
- Fan Connector: 5-pin fan connector
- FlexBay / Media Card Reader Header: USB 10-pin header for compatible optional media card reader
- PCI Express x16 Slot: 1x PCIe x16 graphics expansion slot
- PCI Express x1 Slot: 1x PCIe x1 expansion slot
- PCI Slots: 2x PCI 2.3 expansion slots
- Rear Video Port: VGA connector
- Rear Network Port: RJ-45 Ethernet connector
- Rear USB Ports: USB 2.0 ports
- Rear Audio Ports: Audio ports for supported speaker / microphone configurations
Interchangeable / Replacement Part Numbers
WG864, 0WG864, CN-0WG864
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system’s specific configuration. It’s essential to verify compatibility with your original motherboard part number, desktop model, chassis style, processor, memory type, power connectors, rear I/O layout, and mounting points prior to installation.
✔ Dimension Tower Models: Dimension E520 Tower, Dimension 5200 Tower
✔ Compatible Board Configurations: Systems originally equipped with motherboard part number WG864, 0WG864, or CN-0WG864
☑️ Key Features
☑️ Replacement motherboard / system board for compatible Dimension E520 and 5200 tower systems
☑️ Supports Socket LGA775 processor configurations
☑️ Uses DDR2 unbuffered SDRAM memory
☑️ Includes SATA support for compatible hard drives and optical drives
☑️ Integrated video, audio, and Ethernet support
☑️ PCI Express x16 slot for compatible graphics cards
☑️ OEM-style layout for matching chassis, rear I/O, and internal cable routing
☑️ Useful replacement for failed, damaged, no-POST, intermittent, or non-working system boards
☑️ Direct-fit replacement when the original board part number and chassis layout match
⚙️ Fit Notes
- Match your original motherboard part number whenever possible
- Confirm your original board is marked WG864, 0WG864, or CN-0WG864
- Confirm your desktop is a compatible Dimension E520 / 5200 tower system
- This is a chassis-specific OEM motherboard and should not be treated as a universal ATX replacement board
- Verify the rear I/O layout, screw mounting points, power connectors, front-panel connector, SATA layout, and fan connector before ordering
- Confirm your existing CPU is compatible with the board’s Socket LGA775 processor platform
- Confirm your memory is compatible DDR2 desktop DIMM memory
- This board is not intended for Dimension E521, E510, 5150, small form factor systems, or other desktop models unless the original motherboard part number matches
- CPU, heatsink, fan shroud, memory, CMOS battery, cables, I/O hardware, and expansion cards are not included unless shown
- Some replacement installations may require BIOS setup changes or BIOS flashing depending on configuration
- Always disconnect AC power, discharge the system, and follow proper ESD safety procedures before replacing a motherboard
