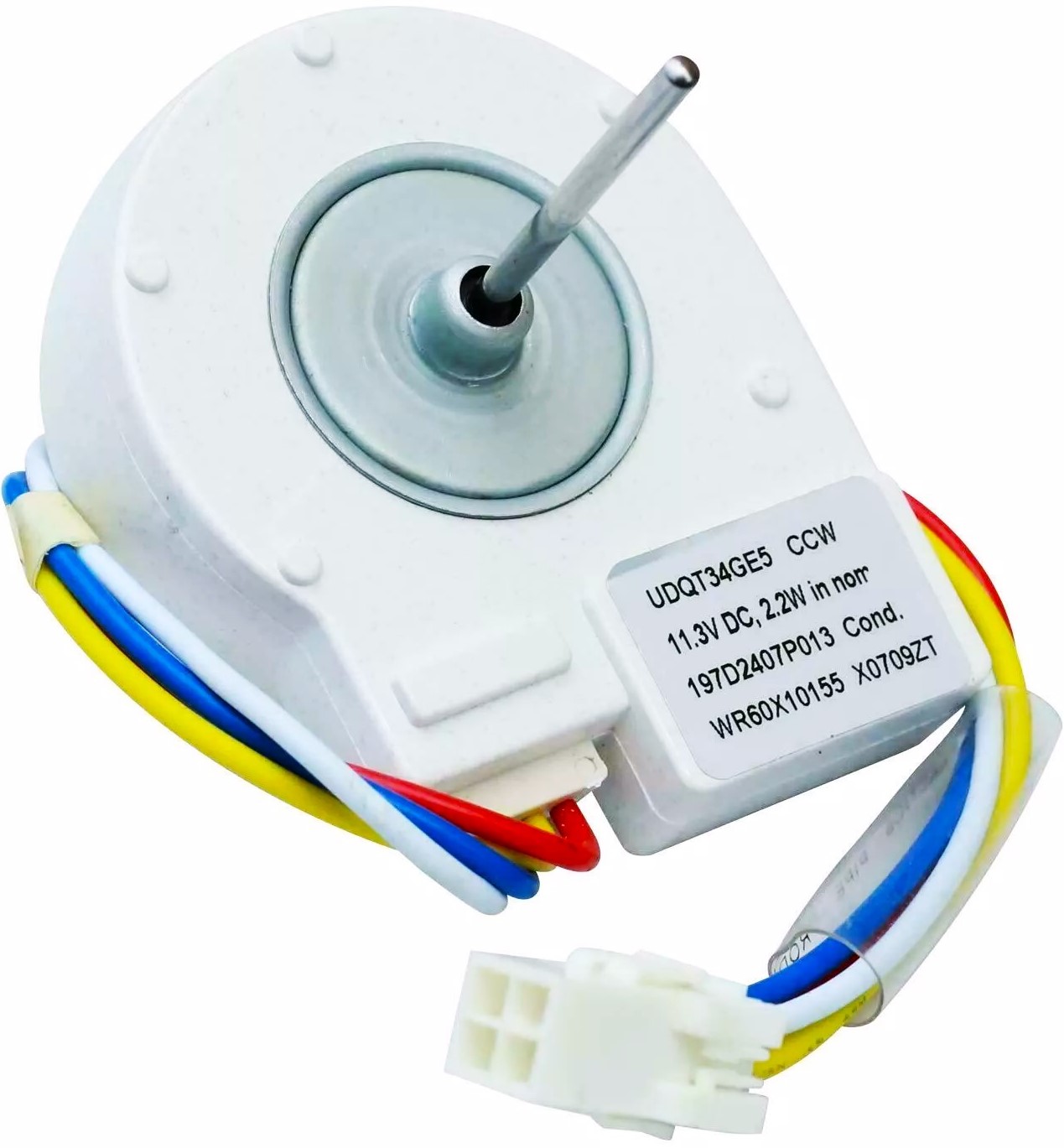

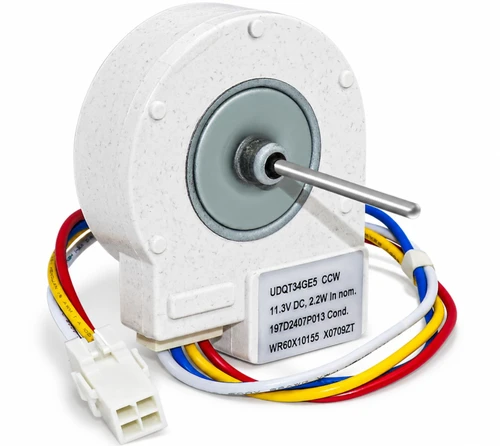

Replacement refrigerator condenser fan motor used to circulate air across the condenser coil and compressor area. This motor helps remove heat from the refrigeration system so the refrigerator can maintain proper cooling performance. A failed condenser fan motor may cause warm temperatures, compressor overheating, loud rear-bottom noise, or the condenser fan not spinning while the compressor is running.
• Primary Part Number: 197D2407P016
• Part Type: Refrigerator Condenser Fan Motor
• Motor Type: DC condenser fan motor
• Voltage Rating: 11.3V DC
• Power Rating: 2.2W
• Connector Type: 4-pin plug connector
• Wire Configuration: 4-wire harness style
• Application: Refrigerator condenser cooling system
• Mounting Location: Rear lower machine compartment near compressor and condenser coil
• Function: Moves air across condenser coils to help dissipate heat
• Common Install Time: Approximately 15-30 minutes depending on model and access
• Fan Blade Included: Verify by listing/photo. Some installations reuse the original fan blade.
• Bracket Included: Verify by listing/photo. Some installations reuse the original mounting bracket.
• 197D2407P016, 197D2407P013, WR60X10155, WR60X24483, WR60X10209, UDQT34GE5, AP4265957
Additional commonly associated replacement numbers may include:
• WR60X10042, WR60X10053, WR60X10065, WR60X10080, WR60X10081, WR60X10216, 1195784, AH1483567, EA1483567, EAP1483567, PS1483567
Please note that the following list is not exhaustive. Compatibility depends on the exact refrigerator model, production revision, original motor part number, connector style, and mounting configuration. Please verify your original part number before ordering.
✔️ GE Side-by-Side Refrigerators
Select models in the GSS, GSL, GCE, PCE, PSS, and PSC series, including many models beginning with:
GSS22, GSS23, GSS25, GSS26, GSL22, GSL25, GCE21, GCE23, PCE23, PSS25, PSS26, PSC23, PSC25
✔️ GE Profile Refrigerators
Select Profile side-by-side refrigerators using the WR60X10209 / WR60X10155 / WR60X24483 condenser fan motor family.
✔️ Hotpoint Refrigerators
Select HSS series refrigerators including models beginning with:
HSS22, HSS25
✔️ Monogram Refrigerators
Select built-in and premium refrigerator models using this condenser fan motor family, including select ZIS and ZISB series models.
✔️ Cafe Refrigerators
Select Cafe refrigerator models built on compatible GE-platform cooling systems.
✔️ RCA Refrigerators
Select GE-built RCA refrigerators using the same condenser fan motor assembly.
✔️ Kenmore Refrigerators
Select Kenmore / Sears refrigerators manufactured on GE platforms and using one of the listed replacement part numbers.
✔️ Haier Refrigerators
Select Haier refrigerator models that cross-reference to WR60X10209, WR60X10155, WR60X24483, or AP4265957.
✓ Direct replacement condenser fan motor for multiple interchangeable part numbers
✓ Helps restore proper airflow across the condenser coil
✓ Supports normal compressor cooling and refrigerator temperature regulation
✓ 4-pin plug style connection for compatible refrigerator harnesses
✓ Designed for rear lower condenser fan motor applications
✓ Common solution for refrigerators with poor cooling caused by a failed condenser fan
✓ Fits many GE-built refrigerator platforms across multiple brand labels
✓ Replaces older and superseded part numbers in the WR60X motor family
✓ This motor mounts in the rear lower compartment of the refrigerator near the compressor.
✓ Always unplug the refrigerator before servicing or replacing electrical components.
✓ Match your original part number before ordering whenever possible.
✓ Confirm the connector style matches your original 4-pin motor plug.
✓ Some models require reusing the original fan blade, mounting bracket, screws, or wire routing clips.
✓ If the old motor failed due to heavy dust buildup, clean the condenser coil area before installing the replacement.
✓ Fan blade orientation matters. Reinstall the blade in the same direction and position as the original.
✓ If the compressor is running but the condenser fan does not spin, the fan motor, wiring, or control board should be checked.
✓ A bad condenser fan motor can cause the compressor area to become very hot and may lead to poor cooling or repeated compressor cycling.
✓ This part should only be installed in refrigerators that originally used the same voltage, connector, and mounting style.
• Refrigerator is not cooling properly
• Freezer temperature is warmer than normal
• Compressor area feels very hot
• Fan near the compressor is not spinning
• Refrigerator runs constantly but does not reach the set temperature
• Clicking or cycling from the compressor area
• Loud humming, buzzing, grinding, or rattling from the rear lower compartment
• Food spoils faster than expected
• Refrigerator cools intermittently
• Compressor shuts off due to overheating
The condenser fan motor powers the fan that moves air across the condenser coil and compressor area. This airflow helps remove heat from the refrigerant system. When the condenser fan motor fails, heat can build up around the compressor and condenser coil, which may cause poor cooling performance, longer run times, or compressor overheating.
Please compare your original motor part number and the items connector to the one listed above. This motor is commonly found under several part numbers, including 197D2407P016, 197D2407P013, WR60X10155, WR60X24483, WR60X10209, UDQT34GE5, and AP4265957. These numbers refer to the same interchangeable condenser fan motor family.
