WR60X10155 - Refrigerator Condenser Fan Motor

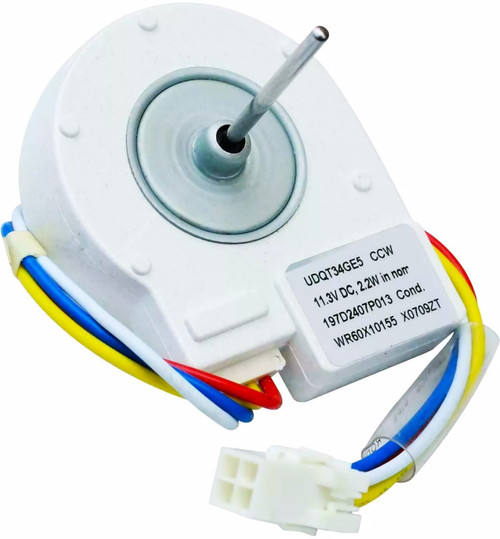

WR60X10155 – Refrigerator Condenser Fan Motor – 4-Pin Connector

High-performance refrigerator condenser fan motor engineered to maintain proper airflow across the condenser coils and compressor, ensuring efficient cooling and system reliability. This replacement unit features a durable build, quiet operation, and a precise 4-pin connector for a direct fit installation.

Technical Specifications

• Part Number: WR60X10155
• Alternate / Replacement PNs: AP3875639, PS1019114, 1550745, WR60X10043, WR60X10074, WR60X10144, WR60X10156, WR60X10220, WR60X10224
• Type: Condenser Fan Motor
• Voltage: 12 V DC
• Current: 0.5 A
• Connector: 4-Pin Connector (includes tachometer feedback wire)
• Speed: 2600–3000 RPM (variable, model-dependent)
• Rotation: CW (Clockwise)
• Shaft Length: Approx. 1.25 in (32 mm)
• Overall Dimensions: 3.25 in × 3.25 in × 2.5 in (approx.)
• Condition: Brand New Replacement

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on the refrigerator’s serial range and fan harness design. Always match by part number before ordering.

✔ GE: GSS20, GSS22, GSS23, GSS25, GSS26, GSH25, GSHS5, GSL25, GSX25, GSS27, PSS25, PSS26, PSS27, and related side-by-side models
✔ Hotpoint: HSS25, HSSS25, and related models
✔ Sears / Kenmore: 363-Series refrigerators built by GE using identical 4-pin condenser fan motors

☑ Key Features

☑ Direct-fit 4-pin connector – no splicing or rewiring required
☑ High-efficiency motor ensures proper condenser and compressor cooling
☑ Quiet operation and low vibration performance
☑ Durable design with thermally protected windings
☑ Restores proper airflow for optimal temperature regulation

⚙ Fit Notes

• Mounts behind the refrigerator compressor assembly
• Reuse your existing fan blade and screws if in good condition
• Disconnect power before installation
• If replacing an older 3-wire version, ensure your board supports the 4-wire tach feedback connection
