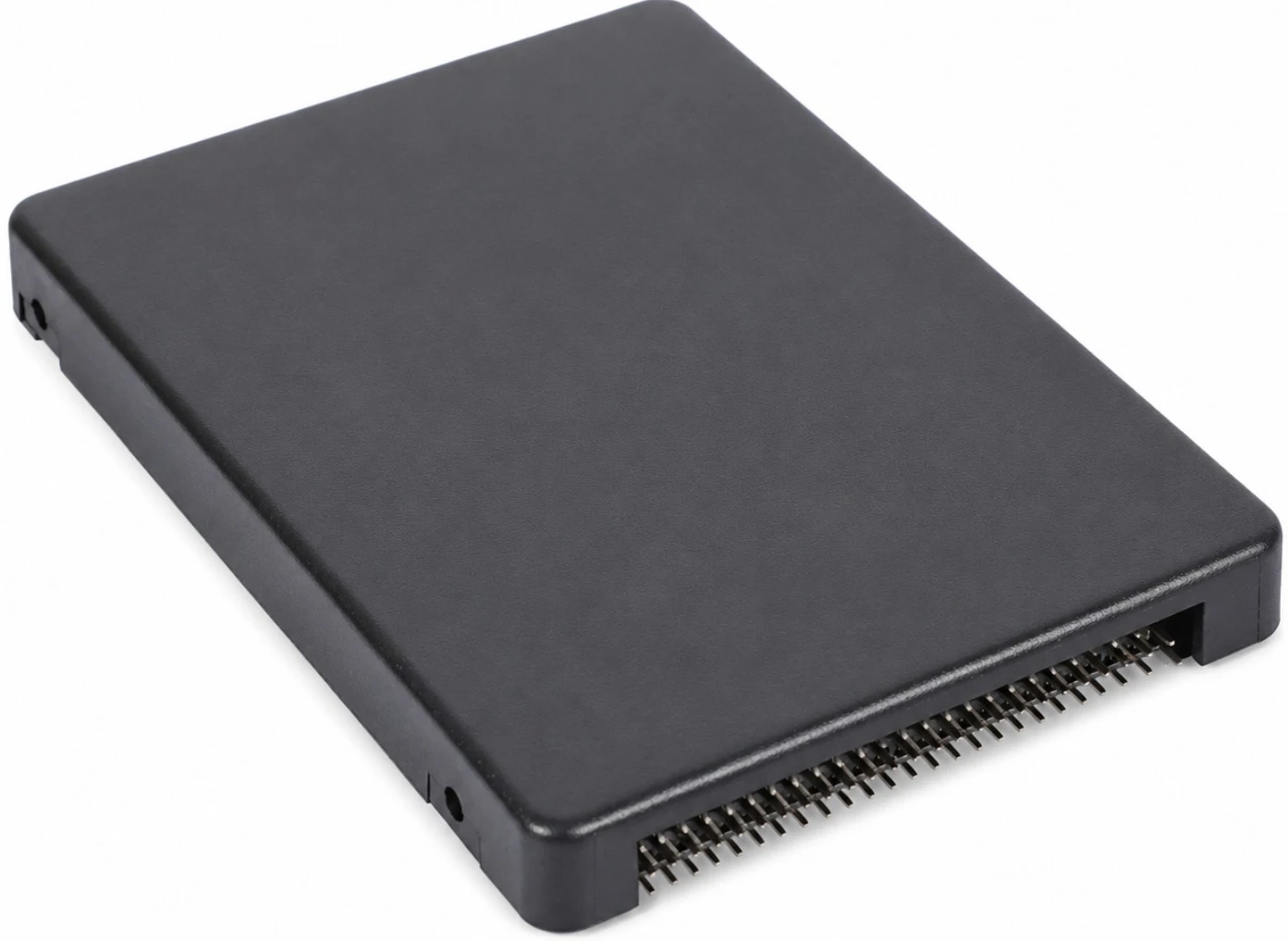

128GB mSATA SSD to 2.5 Inch 44-Pin IDE ATA PATA Adapter with Case for Legacy Laptops

mSATA SSD to 2.5-inch 44-pin IDE / PATA adapter for upgrading compatible legacy laptops, embedded PCs, industrial computers, and older equipment that originally used a 2.5-inch 44-pin ATA hard drive. This adapter allows a compatible mSATA solid state drive to be installed in a 2.5-inch IDE-style drive bay using the same 44-pin notebook PATA connection.

What’s Included

• Included Item: 1x adapter card with 2.5-inch case
• Included Screws: 4x screws

Technical Specifications

• Part Type: mSATA SSD to 2.5-inch IDE / PATA adapter
• Capacity: 128GB
• Input Interface: mSATA
• Output Interface: 2.5-inch 44-pin IDE / PATA / ATA
• Supported Drive Type: mSATA solid state drive
• Supported mSATA SSD Sizes: Approx. 30mm x 50mm and 30mm x 70mm
• Adapter Size: Approx. 100mm x 70mm x 10mm
• External Form Factor: 2.5-inch drive-style enclosure
• Color: Black
• Drive Bay Type: 2.5-inch notebook IDE / PATA hard drive bay
• Operating System Support: Windows XP-era systems and other operating systems that support IDE / PATA storage
• TRIM Support Note: TRIM support depends on the installed mSATA SSD, operating system, controller behavior, and software utility support
• Application Type: Legacy laptop, industrial PC, embedded system, CNC controller, POS, and older equipment storage upgrade

Connector & Interface Details

• Host Connector: 44-pin 2.5-inch IDE / PATA connector
• Internal SSD Connector: mSATA slot
• Power Source: Draws power through the 44-pin notebook IDE connector
• Drive Protocol: Converts mSATA SSD storage for use on a 2.5-inch PATA / IDE host interface
• Installation Style: mSATA SSD mounts to the adapter board, then the adapter installs into the 2.5-inch IDE drive bay
• Important Interface Note: This is for 44-pin notebook IDE / PATA systems, not SATA drive bays

Interchangeable / Replacement Part Numbers

mSATA to IDE adapter, mSATA to PATA adapter, mSATA SSD to 44-pin IDE converter, mSATA SSD to 2.5-inch PATA adapter, 2.5-inch 44-pin IDE SSD adapter, 2.5-inch PATA SSD adapter, mSATA to ATA adapter case, mSATA to notebook IDE adapter, 44-pin IDE solid state drive adapter

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system’s original drive interface, BIOS support, drive bay height, caddy style, operating system, and storage capacity limits. It’s essential to verify that your laptop or device originally uses a 2.5-inch 44-pin IDE / PATA hard drive before ordering.

✔ Compatible Drive Bay Type: 2.5-inch 44-pin IDE / PATA / ATA notebook hard drive bays
✔ IBM / Lenovo ThinkPad IDE Models: ThinkPad A20, A21, A22, A30, A31, G40, G41, R30, R31, R32, R40, R50, R50e, R50p, R51, R51e, R52, T20, T21, T22, T23, T30, T40, T40p, T41, T41p, T42, T42p, T43, T43p, X20, X21, X22, X23, X24, X30, X31, X32
✔ Dell Latitude IDE Models: Latitude C400, C500, C510, C540, C600, C610, C640, C800, C810, C840, D500, D505, D510, D600, D610
✔ Dell Inspiron IDE Models: Inspiron 1100, 1150, 2200, 2500, 2600, 2650, 3700, 3800, 4000, 4100, 4150, 500m, 510m, 600m, 5100, 5150, 5160, 8000, 8100, 8200, 8500, 8600, 9100, 9200, 9300
✔ Dell Precision Mobile Workstations: Precision M20, M40, M50, M60, M70
✔ Dell XPS IDE Models: XPS Gen 2, XPS M170
✔ HP / Compaq Legacy IDE Notebooks: Compaq Armada E500, M300, M700, Evo N400c, N410c, N600c, N610c, N620c, N800c, N800v, N1000v, N1020v, HP Compaq nc6000, nc6120, nc6220, nc6230, nc8000, nw8000, nw8240, nx5000, nx6110, nx6120, nx6125
✔ Apple PowerPC IDE Systems: iBook G3, iBook G4, PowerBook G3, PowerBook G4 Titanium, PowerBook G4 Aluminum 12-inch, PowerBook G4 Aluminum 15-inch, PowerBook G4 Aluminum 17-inch, Mac mini G4
✔ Toshiba Legacy IDE Laptops: Satellite 1800, 1900, 2400, 2500, 2800, 3000, 5000, 5100, 5200, A10, A15, A20, A25, A30, A35, M30, M35, Satellite Pro 4300, 4600, 6000, 6100, Tecra 8000, 8100, 8200, 9000, 9100, M1, M2, M3, Portege 4000, 4010, 7020, 7200
✔ Panasonic Toughbook IDE Models: Toughbook CF-27, CF-28, CF-29, CF-48, CF-50, CF-51, CF-71, CF-72, CF-73
✔ Sony VAIO IDE Models: VAIO PCG-F Series, PCG-FX Series, PCG-GR Series, PCG-GRX Series, PCG-GRT Series, PCG-K Series, PCG-V505 Series, VGN-A Series, VGN-FS Series, VGN-S Series
✔ Acer TravelMate / Aspire IDE Models: TravelMate 220, 230, 240, 250, 270, 280, 290, 370, 600, 800, Aspire 1300, 1400, 1600, 2000, 2010, 2020
✔ Industrial / Embedded Equipment: Compatible with many CNC controllers, industrial PCs, machine control computers, point-of-sale systems, medical equipment PCs, test equipment, and embedded systems originally configured with a 2.5-inch 44-pin IDE / PATA hard drive

☑️ Key Features

☑️ Converts an mSATA SSD for use in compatible 2.5-inch 44-pin IDE / PATA systems
☑️ Useful upgrade for older laptops and embedded systems originally using 2.5-inch IDE hard drives
☑️ Helps replace aging mechanical PATA hard drives with solid state storage
☑️ 2.5-inch case-style design for easier drive bay installation
☑️ Supports compatible mSATA SSDs in 30mm x 50mm or 30mm x 70mm sizes
☑️ Good fit for Windows XP-era laptops, legacy repair work, industrial machines, and vintage computer restorations
☑️ Uses the notebook 44-pin IDE connector for both data and power
☑️ Includes adapter card, case, and screws

⚙️ Fit Notes

• Confirm your system uses a 2.5-inch 44-pin IDE / PATA hard drive before ordering
• This adapter is not for SATA hard drive bays
• This adapter is not for 1.8-inch ZIF / CE-ATA drives unless your system has been converted to a 44-pin 2.5-inch IDE connection
• This adapter is not a direct replacement for desktop 3.5-inch 40-pin IDE drives without the proper additional adapter and power connection
• Confirm the 10mm adapter height will fit your drive bay, caddy, or mounting bracket
• The mSATA SSD must be installed into the adapter before the adapter is installed into the computer
• Some older systems may have BIOS capacity limits such as 32GB or 137GB; use an SSD size and partition layout your system can support
• Some systems may require IDE master, slave, or cable-select behavior; verify system requirements before installation
• ThinkPad T43 / T43p systems may display a hard drive compatibility warning depending on BIOS and drive identification
• Older PowerPC Mac systems may require Apple Partition Map formatting for boot support
• Operating system cloning, partition alignment, and bootloader setup may be required after installation
• Professional installation is recommended for systems with fragile drive caddies, ribbon connectors, or machine-control equipment
• Always power down the system, disconnect AC power, and follow proper ESD safety procedures before installation
