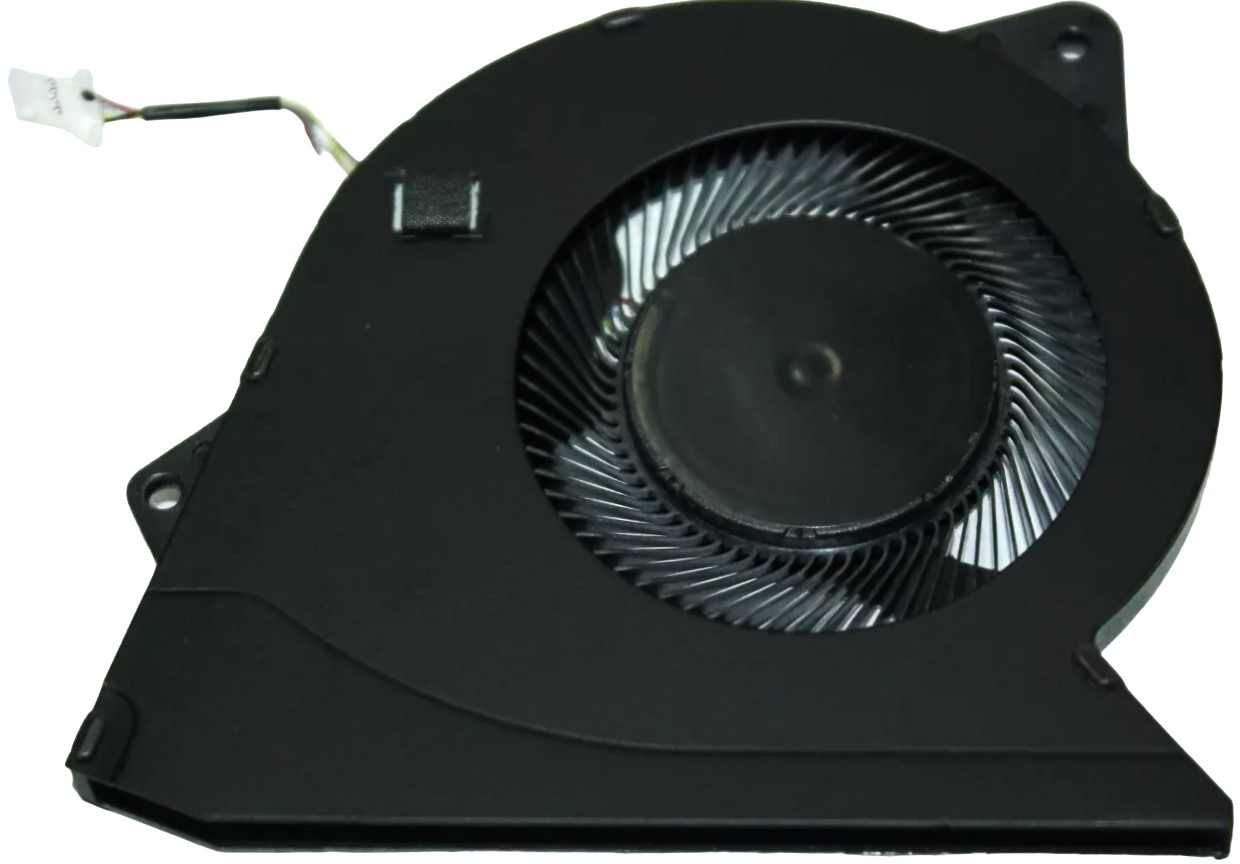

RFF51 CPU Cooling Fan for Inspiron 15 3510 3511 3515 3520 3525 and Vostro 3420 3510 3520

Internal 5V blower-style CPU cooling fan for compatible Inspiron 15 and Vostro 14 / 15 laptops using the RFF51 fan in an UMA or integrated-graphics configuration. This replacement fan connects directly to the system board and moves air through the existing heatsink and exhaust vent. This listing is for the cooling fan only; heatsink, mounting screws and thermal compound are not included unless shown.

Technical Specifications

• Primary Part Number: RFF51
• Product Type: Internal laptop CPU cooling fan
• Cooling Design: Centrifugal blower-style fan
• Graphics Configuration: UMA / integrated graphics
• Rated Voltage: DC 5V
• Common Current Ratings: 0.35A, 0.40A or 0.50A depending on manufacturer and revision
• Typical Airflow Rating: Approximately 3.20 to 4.18 CFM depending on revision
• Power Connector: 4-pin / 4-wire system-board connector
• Fan Control: System-board-controlled variable-speed operation
• Cable Type: Permanently attached fan cable
• Mounting Method: Two-screw internal mounting
• Mounting Screw Type: 2x M2x5 screws on supported chassis
• Installation Location: Inside the laptop beneath the base cover
• Heatsink Included: No
• Mounting Screws Included: No
• Thermal Compound Included: No
• Application: Replacement for a failed, seized, noisy, intermittent or non-spinning CPU fan

Interchangeable / Replacement Part Numbers

09HW12, 0RFF51, 9HW12, BN7506S5H-000P, CN-0RFF51, CPA-RFF51, DC28000WFF0, DC28000WFS0, DC28000WFU0, DC2800157F0, DFS5K12114464P, EG50040S1-CQ71-S9A, NS75C40-21K10, RFF51

⭐ Recommended Thermal Grease - Sold Separately

Replacing the fan by itself normally does not require removal of the heatsink. If the heatsink is removed or the existing thermal interface is disturbed during service, clean off the old compound and apply fresh thermal grease before reassembly.

Shin-Etsu G751 High-Performance Thermal Grease for CPU and GPU Installation

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. RFF51 is primarily cataloged for UMA and integrated-graphics configurations. Verify compatibility using the laptop’s Service Tag, original fan part number, graphics configuration, fan housing, mounting points, cable routing and 4-pin connector before ordering.

✔️ Inspiron 15 3000 Series - Intel: Inspiron 15 3510 UMA, Inspiron 15 3511 UMA, Inspiron 15 3520 2022-generation UMA, Inspiron 15 3521 newer-generation configuration, Inspiron 15 3530 UMA
✔️ Inspiron 15 3000 Series - AMD: Inspiron 15 3515, Inspiron 15 3525, Inspiron 15 3535
✔️ Vostro 14 3000 Series: Vostro 14 3420, Vostro 14 3425, Vostro 14 3430, Vostro 14 3435
✔️ Vostro 15 3000 Series: Vostro 15 3510, Vostro 15 3515, Vostro 15 3520, Vostro 15 3525, Vostro 15 3530, Vostro 15 3535
✔️ Additional Compatible Systems: Dell 15 DC15250, Dell 15 DC15255, Pro 15 Essential PV15250

☑️ Key Features

☑️ Direct replacement for laptops originally equipped with RFF51 or 0RFF51
☑️ Compact centrifugal blower design for directing air through the existing heatsink
☑️ DC 5V operation with a four-wire system-board connection
☑️ System-controlled variable fan speed
☑️ Permanently attached cable for direct connection without soldering
☑️ Two-point screw mounting for supported palm-rest and keyboard assemblies
☑️ Available in multiple manufacturer revisions with different current and airflow label ratings
☑️ Useful for correcting fan noise, restricted rotation, intermittent operation and fan-failure warnings when caused by the original fan
☑️ Fan-only design allows the existing compatible heatsink to be reused

⚙️ Fit Notes

• Match RFF51, 0RFF51 or another listed fan reference whenever possible.
• Confirm that the laptop uses an UMA / integrated-graphics cooling configuration. Systems with discrete graphics may use a different heatsink or cooling assembly.
• Compare the fan housing shape, exhaust opening, mounting tabs, cable exit location, cable length and 4-pin connector with the original fan.
• Compatible fan-manufacturer revisions may be labeled 0.35A, 0.40A or 0.50A. A different current marking alone does not indicate incompatibility when the RFF51 reference, housing, connector and mounting arrangement match.
• The Vostro 14 3420 is compatible. Do not confuse it with an Inspiron 14 3420, which is a different platform.
• Model numbers 3520 and 3521 were also used on older laptop generations. This fan is intended for the newer RFF51-based chassis, not legacy 2012-2013 Inspiron models.
• The Inspiron Desktop 3250 and other systems identified only as 3250 are not included in the verified RFF51 compatibility list.
