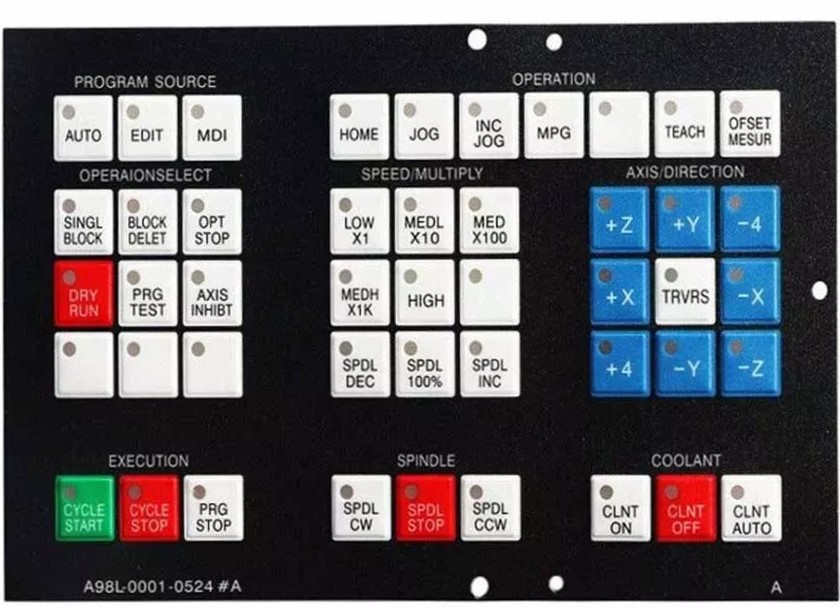

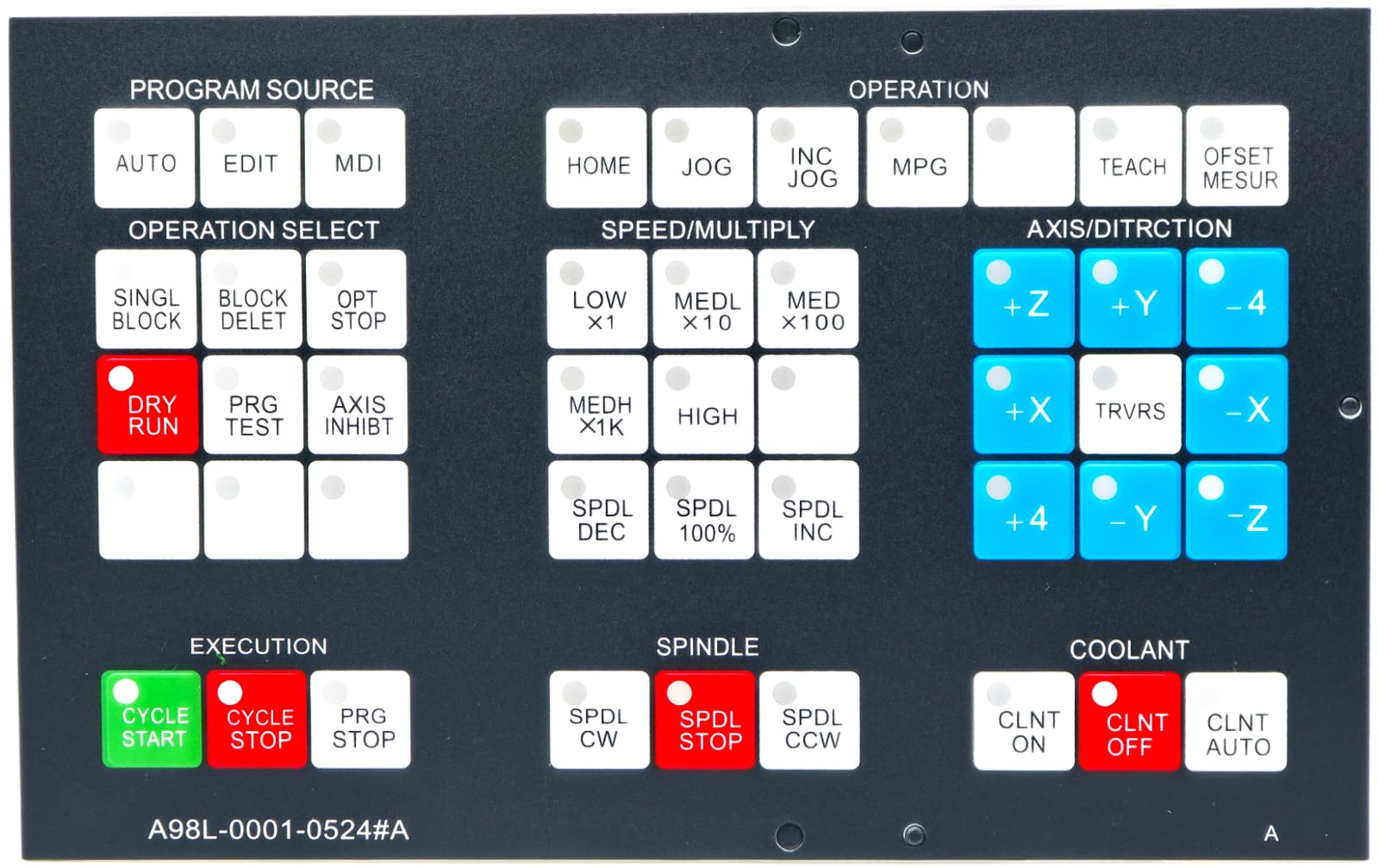

A98L-0001-0524#A - Membrane Operator Keypad Keysheet for Fanuc 0-M Small Operator Panel

Restore worn, damaged, peeling, or unreadable controls on compatible Fanuc small M-series operator panels with this A98L-0001-0524#A membrane operator keypad keysheet. This replacement keysheet is designed for small M-series Fanuc operator panel layouts and is commonly used on Fanuc 0-M / FS0-M style CNC machine operator panels.

This part replaces the front membrane / keysheet layer when the printed legends, button surface, or operator panel face has become worn, cracked, faded, or difficult to read. Please verify your existing part number and panel layout before ordering, as Fanuc membrane keysheets are highly layout-specific.

Technical Specifications

• Part Number: A98L-0001-0524#A
• Product Type: Membrane Operator Keypad / Keysheet / Operator Panel Overlay
• Application: Fanuc CNC machine operator panel
• Panel Style: Small M-Series operator panel
• Key Layout: 46-key small M-series layout
• Common Panel Association: A02B-0092-C141 small operator panel
• Related Keyboard Assembly: A86L-0001-0126 small M-series keyboard
• Function: Replaces the front membrane keysheet / operator panel face
• Installation Type: Panel-mounted membrane overlay
• Use Case: CNC operator panel repair, keypad face replacement, worn legend replacement

Interchangeable / Replacement Part Numbers

A98L-0001-0524#A, A98L00010524A

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.

✔️ Fanuc 0-M / FS0-M Small M-Series Operator Panels: A02B-0092-C141, small M-series 46-key operator panel layouts
✔️ Fanuc CNC Operator Panel Applications: Machining center operator panels, CNC control panels, industrial machine control panels using the A98L-0001-0524#A membrane layout

☑️ Key Features

☑️ Replacement membrane keysheet for Fanuc A98L-0001-0524#A operator panels
☑️ Designed for small M-series Fanuc CNC operator panel layouts
☑️ Helps restore worn, faded, cracked, peeling, or unreadable keypad surfaces
☑️ 46-key style membrane layout for compatible 0-M / FS0-M panel configurations
☑️ Useful for CNC machine repair, industrial control maintenance, and operator panel restoration
☑️ Replaces the membrane / keysheet layer without requiring replacement of the full operator panel when the underlying electronics are still functional
☑️ Ideal for restoring button legends and operator interface visibility on aging CNC equipment

⚙️ Fit Notes

• Please verify the exact part number and layout before ordering.
• Fanuc membrane operator keypads often look similar, but suffixes such as #A, #B, #MB, and other A98L-0001-0524 variants may use different legends, key positions, or panel layouts.
• This listing is for A98L-0001-0524#A only.
• This part should not be assumed compatible with other A98L-0001-0524 suffix variants unless your existing part number and keypad layout match.
• If your buttons do not respond, LEDs do not function, or the panel has electrical faults, the issue may be with the underlying keyboard assembly, control PCB, or machine interface rather than the membrane keysheet itself.
• This part is intended for replacement of the front keypad membrane / overlay surface.
