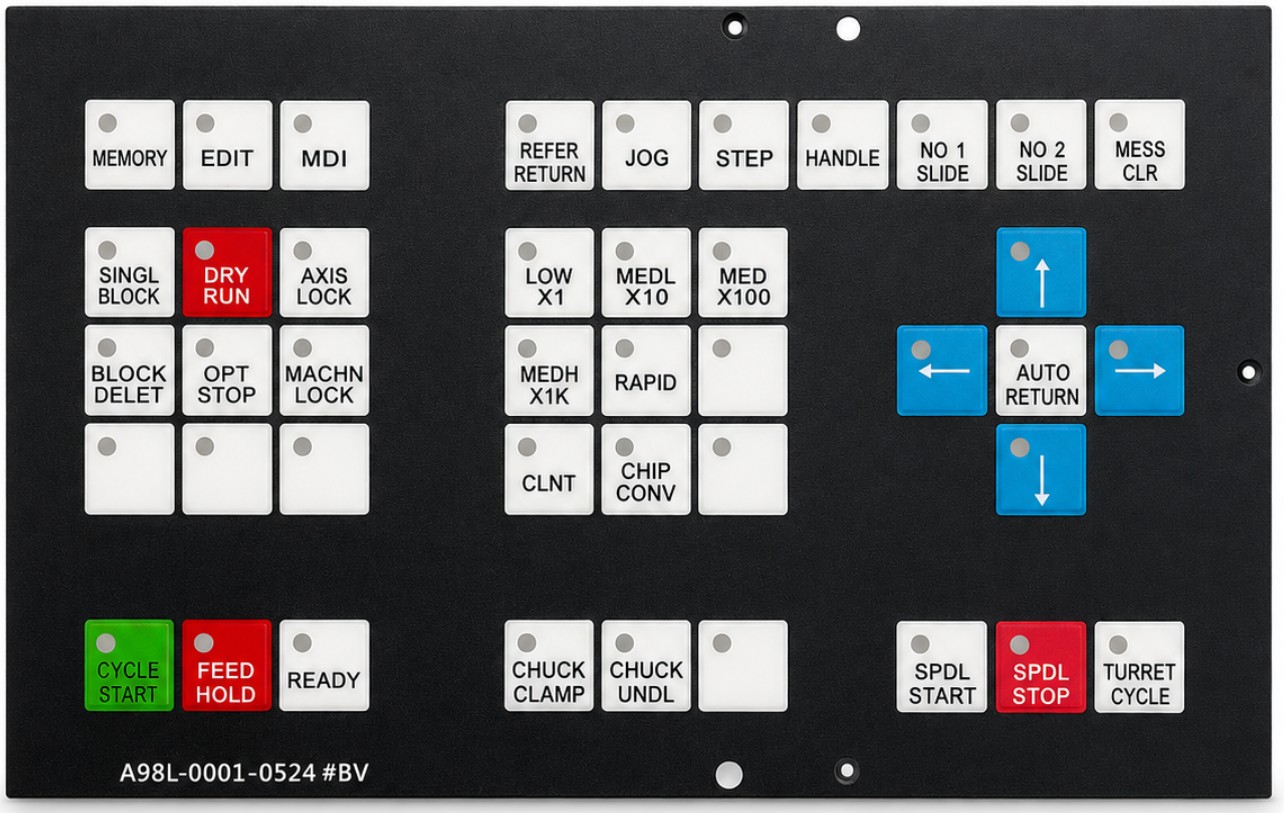

A98L-0001-0524#BV - Membrane Keypad Keysheet for Fanuc CNC Controls

Replacement membrane keypad keysheet for compatible Fanuc CNC machine operator panels using the A98L-0001-0524#BV layout. This membrane is designed for control panels with memory, edit, MDI, reference return, jog, step, handle, slide control, dry run, axis lock, machine lock, chuck clamp, spindle start, turret cycle, feed hold, cycle start, coolant, chip conveyor, and directional key functions matching the original panel layout.

What’s Included

• Included Item: 1x A98L-0001-0524#BV membrane keypad keysheet

Technical Specifications

• Primary Part Number: A98L-0001-0524#BV
• Part Type: Membrane keypad / operator keysheet
• Application Type: CNC machine operator panel replacement
• Panel Layout: Program source / operation / slide control / execution / spindle / chuck / turret control layout
• Faceplate Color: Black
• Key Colors: White, blue, red, and green key areas
• Mounting Type: Front operator panel membrane installation
• Compatible Control Type: Fanuc CNC machine operator panels using the same A98L-0001-0524#BV layout
• Application Use: Replacement for worn, damaged, faded, cracked, peeling, or non-responsive CNC operator membrane keypads

Layout & Key Function Details

• Program Source Key Area: MEMORY, EDIT, MDI
• Operation Select Key Area: SINGL BLOCK, DRY RUN, AXIS LOCK, BLOCK DELET, OPT STOP, MACHN LOCK
• Operation Mode Key Area: REFER RETURN, JOG, STEP, HANDLE, NO 1 SLIDE, NO 2 SLIDE, MESS CLR
• Feed / Machine Function Key Area: LOW X1, MEDL X10, MED X100, MEDH X1K, RAPID, CLNT, CHIP CONV
• Directional / Auto Return Key Area: Up arrow, left arrow, right arrow, down arrow, AUTO RETURN
• Execution Key Area: CYCLE START, FEED HOLD, READY
• Chuck Control Key Area: CHUCK CLAMP, CHUCK UNDL
• Spindle / Turret Key Area: SPDL START, SPDL STOP, TURRET CYCLE

Interchangeable / Replacement Part Numbers

A98L-0001-0524#BV, A98L-0001-0524 #BV, A98L00010524BV

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your machine’s original membrane part number, operator panel layout, key legends, mounting holes, panel size, backing style, and CNC control configuration. It’s essential to compare your original membrane panel to the photo and part number before installation.

✔ Fanuc CNC Operator Panels: For CNC operator panels using the A98L-0001-0524#BV membrane layout with matching program source, operation mode, execution, directional, spindle, chuck, and turret key sections
✔ CNC Lathe Operator Panels: For lathe control panels with MEMORY / EDIT / MDI keys, reference return, jog, step, handle mode, slide selection, spindle start / stop, chuck clamp, and turret cycle functions
✔ CNC Turning Center Control Panels: For turning center panels requiring the same A98L-0001-0524#BV style membrane with NO 1 SLIDE, NO 2 SLIDE, chuck control, turret cycle, and spindle control key positions
✔ CNC Manual Operation Panels: For manual operation panels with reference return, jog, step, handle, auto return, directional arrow keys, rapid, coolant, and chip conveyor functions
✔ CNC Execution Control Panels: For operator panels with matching green CYCLE START, red FEED HOLD, READY, DRY RUN, optional stop, single block, block delete, axis lock, and machine lock key locations
✔ Industrial CNC Replacement Panels: For industrial CNC machine panels where the original membrane visually matches the same key position, color layout, mounting hole pattern, printed legends, and panel shape

☑️ Key Features

☑️ Replacement membrane keysheet for compatible Fanuc CNC operator panels
☑️ Matches A98L-0001-0524#BV keypad layout
☑️ Includes memory, edit, MDI, jog, step, handle, slide, spindle, chuck, turret, coolant, chip conveyor, and execution control key markings
☑️ Designed for CNC machine operator control panels requiring this exact layout
☑️ Helps restore readable key functions on worn or faded machine panels
☑️ Useful replacement for cracked, peeling, damaged, faded, or non-responsive membrane keypads
☑️ Direct-fit replacement when the original membrane part number, mounting holes, and key layout match

⚙️ Fit Notes

• Match your original membrane part number whenever possible
• Confirm your original panel is marked A98L-0001-0524#BV
• Compare the full key layout, printed legends, key colors, mounting holes, outer shape, and panel size before ordering
• Similar A98L-0001-0524 membrane panels may look close but can have different suffixes, button markings, hole locations, or key arrangements
• This is the membrane keypad / keysheet only
• CNC controller, display, PCB, wiring harness, full pendant, cabinet, and machine electronics are not included unless shown
• Make sure the underlying control board and switch contacts are working before replacing only the membrane panel
• Installation may require removing the old membrane and cleaning the mounting surface before applying or installing the replacement
• Always power down the machine and follow proper service procedures before replacing CNC operator panel components
• Do not install if your machine requires a different A98L membrane number, suffix, key layout, or mounting pattern
