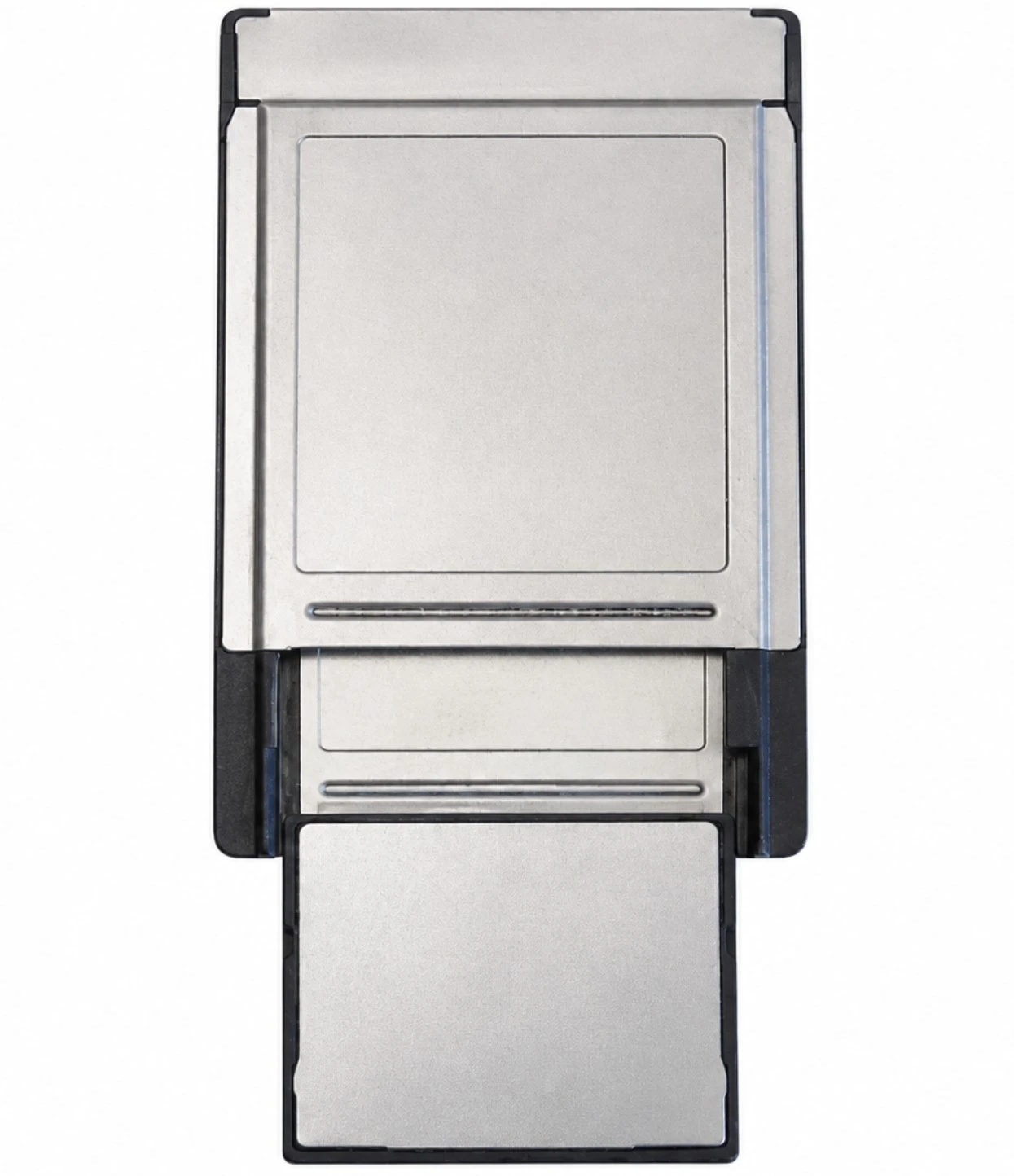

CM-2GB-PCMCIA-SSD - 2GB CompactFlash CF PCMCIA ATA SSD Card with 68-Pin Type II Adapter

This 2GB solid-state storage assembly combines a full-size CompactFlash card with a passive 68-pin Type II PC Card adapter. In compatible legacy computers, industrial equipment, test systems, controllers, and embedded devices, the assembly presents the CompactFlash media through a standard 16-bit PCMCIA ATA storage interface.

It can replace many mechanical Type II and Type III PC Card ATA hard drives with capacities up to 2GB, including the Toshiba HDD1212 / MK2001MPL. The solid-state design eliminates the spinning disk, motor, read/write heads, operating noise, and mechanical wear associated with the original hard drive.

Compatibility depends on the host’s PCMCIA controller, BIOS, supported drive capacity, Card Information Structure handling, disk geometry, filesystem, and treatment of removable versus fixed-disk media.

Technical Specifications

• Product Type: Solid-state PC Card storage replacement
• Nominal Capacity: 2GB
• Storage Technology: Solid-state flash memory
• Storage Media: Full-size CompactFlash card
• Included Components: 2GB CompactFlash card and passive PC Card adapter
• Host Interface: 68-contact PC Card / PCMCIA
• Storage Protocol: 16-bit PC Card ATA / PCMCIA ATA
• CompactFlash Interface: 50-pin CompactFlash ATA
• PC Card Form Factor: Type II
• Approximate Adapter Dimensions: 85.6mm × 54.0mm × 5.0mm
• Adapter Type: Passive physical and electrical adapter
• External Power Required: No
• Power Source: Compatible PC Card slot
• Moving Parts: None
• CardBus Device: No
• ExpressCard Device: No
• Boot Support: Host BIOS and PCMCIA controller dependent
• Operating-System Support: Requires standard PC Card ATA storage support
• Media Preparation: Supplied formatted; repartitioning or reformatting may be required
• Application: Replacement for compatible PCMCIA ATA hard drives and ATA flash-storage cards with supported capacities up to 2GB

Interchangeable / Replacement Part Numbers

The supplied assembly does not carry an original system-manufacturer part number. The references below identify legacy PC Card ATA storage devices that this assembly may replace after host compatibility is confirmed.

Primary 2GB Type II PC Card hard-drive references:

HDD1212, MK2001MPL, HDD 1212 A, PA3079U, DP-PCM2/2GB, DP-PCM2/2GB-KIT

Calluna PC Card ATA hard-drive references:

CT-80MC, CT80MC, CT260T2, CT520RM, CT1040RM

Integral Peripherals PC Card ATA hard-drive references:

Ranger 1841PA, Cobra 1882P, Viper 105, Viper 170, Viper 8260PA, Viper 8340PA, Cobalt 8420PA

Additional PCMCIA storage reference:

F1065-69030

ATA flash-card families:

SanDisk SDP3B and SDP5B PCMCIA ATA FlashDisk cards with supported capacities up to 2GB

Normalized searchable forms:

HDD-1212, HDD1212A, MK-2001MPL, PA-3079U, DP PCM2 2GB, CT80MC, CT-260T2, CT-520RM, CT-1040RM, 1841-PA, 1882-P, 8260-PA, 8340-PA, 8420-PA, F106569030

These identifiers are replacement targets rather than manufacturer aliases for the generic CompactFlash assembly. Capacity, firmware behavior, reported geometry, and Card Information Structure data can differ between devices.

⚠️ Critical Interface Compatibility Notice

This assembly is designed for a conventional 68-contact 16-bit PC Card slot that supports PCMCIA ATA storage devices.

Before ordering, confirm all of the following:

• The original device operates as a PCMCIA ATA or PC Card ATA hard drive.
• The host accepts a Type II PC Card.
• The host supports a 2GB storage device or can operate with a smaller partition.
• The system does not require a proprietary Card Information Structure or manufacturer identification.
• The application does not require the replacement media to report itself as a fixed disk.
• The original disk image will fit within the replacement card’s actual available sector count.
• Any specialized boot sector, partition layout, filesystem, or application data can be transferred to the replacement media.

This is not a replacement for linear flash, SRAM, ROM, modem, network, wireless, CardBus, ExpressCard, or proprietary security cards, even when those devices use a physically similar card enclosure.

✅ Confirmed Compatibility

Interface compatibility applies to the documented PC Card ATA storage families below. Final operation remains dependent on the host’s capacity limit, controller, BIOS, formatting, and firmware requirements.

Toshiba and Kingston 2GB Type II PC Card Hard Drives
✔️ Toshiba HDD1212 / HDD 1212 A 2GB PC Card hard drive
✔️ Toshiba MK2001MPL 2GB Type II PC Card hard drive
✔️ Toshiba PA3079U 2GB Type II PC Card hard drive
✔️ DataPak DP-PCM2/2GB 2GB Type II PC Card hard drive
✔️ DataPak DP-PCM2/2GB-KIT 2GB drive supplied with reader kit
Calluna PC Card ATA Hard Drives
✔️ Calluna CT-80MC 85MB Type III PC Card hard drive
✔️ Calluna CT260T2 260MB Type II PC Card ATA hard drive
✔️ Calluna CT520RM 520MB Type III PC Card ATA hard drive
✔️ Calluna CT1040RM 1GB Type III PC Card hard drive
Integral Peripherals PC Card ATA Hard Drives
✔️ Integral Ranger 1841PA 42MB Type III PC Card ATA hard drive
✔️ Integral Cobra 1882P 85MB Type III PC Card hard drive
✔️ Integral Viper 105 105MB Type III PC Card ATA hard drive
✔️ Integral Viper 170 170MB Type III PC Card ATA hard drive
✔️ Integral Viper 8260PA 260MB Type III PC Card hard drive
✔️ Integral Viper 8340PA 340MB Type III PC Card hard drive
✔️ Integral Cobalt 8420PA 421MB Type III PC Card hard drive
Other PCMCIA ATA Storage
✔️ HP F1065-69030 520MB hard disk PCMCIA module
✔️ SanDisk SDP3B PCMCIA ATA FlashDisk configurations up to 2GB
✔️ SanDisk SDP5B PCMCIA ATA FlashDisk configurations up to 2GB
✔️ Standard 16-bit PCMCIA ATA flash cards with capacities up to 2GB
✔️ Standard Type II or Type III PC Card ATA hard drives with capacities below 2GB when the host supports generic ATA media

☑️ Key Features

☑️ 2GB solid-state replacement for compatible PC Card ATA hard drives
☑️ Replaces Toshiba HDD1212 and MK2001MPL applications after host verification
☑️ Full-size CompactFlash card with passive PCMCIA adapter
☑️ Standard 68-contact Type II PC Card form factor
☑️ Supports conventional 16-bit PCMCIA ATA storage operation
☑️ Can replace many smaller Type II and Type III PC Card hard drives
☑️ No motor, spinning disk, read/write heads, or mechanical seek mechanism
☑️ Lower operating noise and mechanical wear than vintage hard drives
☑️ Removable CompactFlash media can be prepared using an appropriate reader
☑️ No external power supply or data cable required
☑️ Original and related PCMCIA storage products linked above
☑️ Includes CPU Medics Standard 30-Day Warranty

⚙️ Fit Notes

• A Type II PC Card is thinner than a Type III hard-drive card. It can replace a Type III ATA card only when the host slot accepts Type II cards and does not require the original card thickness for retention.
• Do not force the card into a CardBus-only, ExpressCard, CompactFlash-only, or proprietary card socket.
• A 68-contact connector alone does not establish compatibility. The host must support the PCMCIA ATA storage protocol.
• Generic CompactFlash cards may identify themselves as removable media. Some operating systems, industrial controllers, and embedded applications require fixed-disk identification.
• Some legacy hosts require specific CIS data, ATA IDENTIFY information, manufacturer codes, firmware responses, or disk geometry that a generic CompactFlash card does not reproduce.
• A system limited to 42MB, 85MB, 105MB, 170MB, 260MB, 340MB, 421MB, 520MB, or 1GB may require a partition no larger than the original supported capacity.
• DOS, FAT16, early BIOS implementations, and proprietary operating systems may require specific partition sizes, cylinder/head/sector geometry, or partition-start locations.
• The usable capacity displayed by the operating system will be lower than the nominal 2GB rating.
• Before performing a sector-by-sector clone, confirm that the replacement card contains at least as many addressable sectors as the original drive. Two products advertised as 2GB can have different exact sector counts.
• The Toshiba HDD1212 / MK2001MPL has the same general capacity and PC Card ATA application, but the CompactFlash assembly does not reproduce the original drive’s mechanical characteristics, firmware identity, or exact geometry.
• This is not a full-capacity replacement for 5GB drives such as HDD1232, MK5002MPL, or DP-PCM2/5GB.
• Reformatting or repartitioning may be required even when the card arrives formatted.
• Back up any readable data from the original drive before installation, formatting, cloning, or partitioning.
• Do not insert or remove the card while the host is writing data unless the hardware and operating system specifically support safe hot removal.
