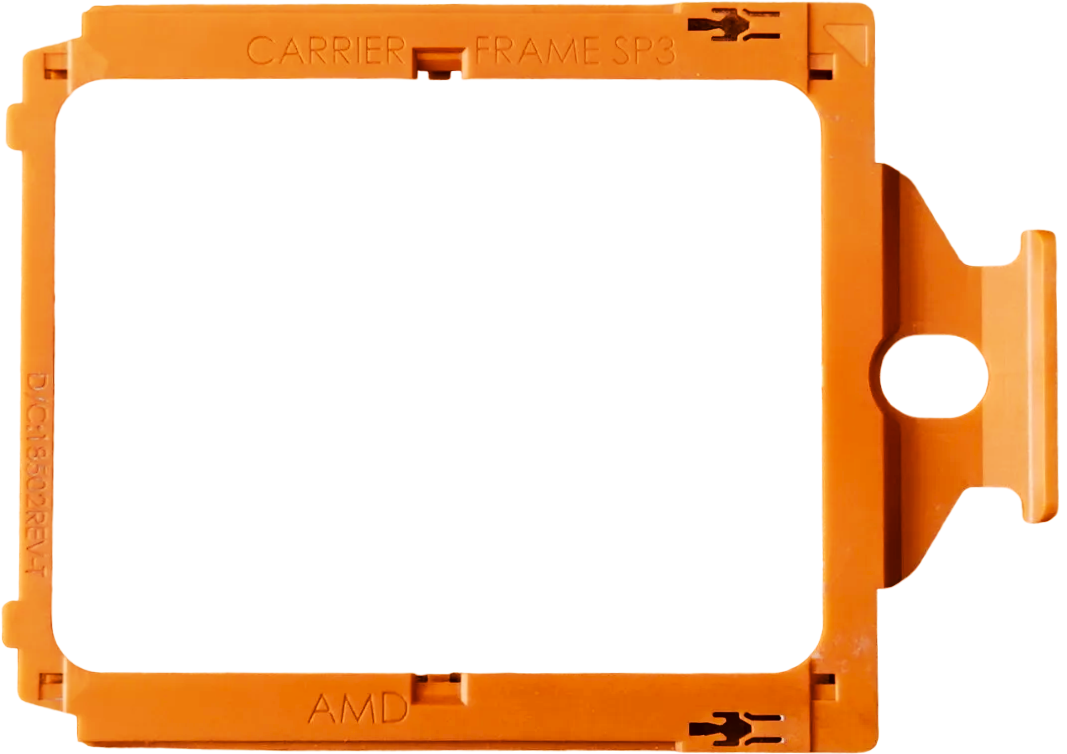

AMD EPYC Threadripper SP3 TR4 sTRX4 Orange CPU Carrier Frame Mount Caddy Tray

This orange CPU carrier frame holds a compatible AMD EPYC or Ryzen Threadripper processor during installation into the motherboard’s socket-loading mechanism. Molded retaining tabs secure the processor package, while guide edges slide into the socket’s rail frame to position the CPU before the metal retention assembly is closed.

Designed for matching SP3 / TR4 / sTRX4 carrier configurations, this replacement is useful when the original carrier is missing, cracked, warped, or unable to hold the CPU securely. Its open center leaves the processor’s heat spreader accessible for the appropriate heatsink or liquid-cooling assembly.

This listing supplies the orange carrier frame. Separate green, blue, and gray listings are linked below. The processor, motherboard socket, metal retention mechanism, heatsink, installation tool, and thermal compound are sold separately.

⭐ Volume Orders Welcome

Big discounts are available for large-quantity purchases. Contact us with the quantity you need for volume pricing and availability. We welcome bulk orders for repair shops, system builders, resellers, and IT departments.

Technical Specifications

• Product Type: CPU carrier frame / processor installation tray
• Color Supplied: Orange
• Application: Compatible AMD EPYC and Ryzen Threadripper processor packages
• Supported Carrier Applications: SP3, TR4 / sTR4, and sTRX4 with matching carrier geometry
• Socket Contact Format: Associated with the LGA4094 processor/socket family
• Processor Package Footprint: Approximately 75.4mm × 58.5mm; not the carrier’s overall outside dimensions
• Construction: Molded plastic carrier frame
• Design: Open center with integrated handling tab
• Processor Retention: Molded retaining features around the CPU package
• Installation Method: Slides into the existing socket rail frame
• Catalog Reference: 18502 REV-T
• Reference Formatting: D/C 18502 REV-T / 18502 REV T
• Electrical Function: Passive mechanical component
• Included Item: Orange CPU carrier frame only

Interchangeable / Replacement Part Numbers

Carrier Markings and Color References

Orange — Supplied by This Listing: 18502 REV-T
Green: 19284 REV-T, DC-19284-REV-T, D/C 20162 REV-T
Blue: 18243 REV-T
Gray / Grey: 19474 REV-T
Additional Carrier Identification: CARRIER FRAME SP3, REV-T, REV T

18502 REV-T is the orange-carrier catalog reference. 19284 REV-T / DC-19284-REV-T identifies the related green listing, and D/C 20162 REV-T is visible on that green carrier’s product photographs.

A number preceded by D/C is a production/date-code marking, rather than a unique universal replacement part number. Matching carriers can carry different production codes.

The orange carrier can replace a green, blue, or gray carrier when the processor-retaining features, guide rails, orientation, and mechanical profile match. Color alone does not establish compatibility.

Additional SP3 Carrier Model References

WNM9C00-0NAH2-EH: SP3 processor carrier reference associated with a specific socket assembly configuration. Compare its guide and retaining features with the orange carrier before substitution.
MPK-SP3-Carrier Frame: SP3 / TR4 / TRX4 carrier model designation. Compare the complete frame profile before substitution.

These references help identify the carrier application. The orange item supplied is not guaranteed to carry these markings or originate from the same manufacturer.

Searchable Reference Formats

18502 REV-T, 18502 REV T, D/C 18502, D/C 18502 REV-T, 19284 REV-T, 19284 REV T, DC-19284-REV-T, D/C 19284, 20162 REV-T, D/C 20162, 18243 REV-T, 19474 REV-T, CARRIER FRAME SP3, WNM9C00-0NAH2-EH, MPK-SP3-Carrier Frame

Related hardware is separate: Socket contacts, the hinged metal rail frame, screw-down force frame, motherboard backplate, and protective socket cap are different components.

⭐➕ Looking for a Different Carrier Color?

CPU Medics also carries these related carrier frames. Compare each product’s photographs with your original carrier.

Green — 19284 REV-T: View Green SP3 TR4 sTRX4 CPU Carrier Frame
Blue — 18243 REV-T: View Blue SP3 TR4 sTRX4 CPU Carrier Frame
Gray / Grey — 19474 REV-T: View Gray SP3 TR4 sTRX4 CPU Carrier Frame

Ordering from this page supplies the orange version. Match the physical carrier design and intended socket application when selecting a replacement.

⭐➕ Recommended Thermal Compound — G751

Replacing a carrier usually involves removing and reinstalling the processor and cooling assembly. Clean away the old thermal compound and renew the thermal interface according to the cooler’s instructions.

Shin-Etsu G751 Microsi High Performance CPU Thermal Grease / Thermal Paste

G751 is sold separately and is applied between the processor’s metal heat spreader and the heatsink’s contact surface.

• Follow the cooler manufacturer’s recommended application pattern and quantity.
• Ensure sufficient compound is available for the large processor contact area.
• Keep compound away from underside contacts, socket contacts, and carrier guide rails.
• Follow the cooler’s instructions if it already has a new pre-applied thermal interface.
• Use a cooler approved for the processor’s socket and thermal requirements.

✔️ Confirmed Compatibility

The following processors belong to the supported SP3, TR4, or sTRX4 package families. Carrier replacement requires matching retaining-tab and rail geometry.

These lists describe carrier fit applications. Every processor still requires a compatible motherboard, BIOS, board revision, power configuration, and cooling system.

AMD EPYC 7001 Series — SP3 / Naples

✔️ 8-Core: EPYC 7251
✔️ 16-Core: EPYC 7281, 7301, 7351, 7351P, 7371
✔️ 24-Core: EPYC 7401, 7401P, 7451
✔️ 32-Core: EPYC 7501, 7551, 7551P, 7601

AMD EPYC 7002 Series — SP3 / Rome

✔️ 8-Core: EPYC 7232P, 7252, 7262, 7F32
✔️ 12-Core: EPYC 7272
✔️ 16-Core: EPYC 7282, 7302, 7302P, 7F52
✔️ 24-Core: EPYC 7352, 7402, 7402P, 7F72
✔️ 32-Core: EPYC 7452, 7502, 7502P, 7532, 7542
✔️ 48-Core: EPYC 7552, 7642
✔️ 64-Core: EPYC 7662, 7702, 7702P, 7742, 7H12

AMD EPYC 7003 Series — SP3 / Milan

✔️ 8-Core: EPYC 7203, 7203P, 72F3
✔️ 16-Core: EPYC 7303, 7303P, 7313, 7313P, 7343, 73F3
✔️ 24-Core: EPYC 7413, 7443, 7443P, 74F3
✔️ 28-Core: EPYC 7453
✔️ 32-Core: EPYC 7513, 7543, 7543P, 75F3
✔️ 48-Core: EPYC 7643, 7643P
✔️ 56-Core: EPYC 7663, 7663P
✔️ 64-Core: EPYC 7713, 7713P, 7763

AMD EPYC 7003 with 3D V-Cache — SP3 / Milan-X

✔️ 16-Core: EPYC 7373X
✔️ 24-Core: EPYC 7473X
✔️ 32-Core: EPYC 7573X
✔️ 64-Core: EPYC 7773X

EPYC P Suffix: Identifies processors intended for single-socket systems. The carrier does not change that restriction.

AMD Ryzen Threadripper 1000 Series — TR4 / sTR4

✔️ 8-Core: Ryzen Threadripper 1900X
✔️ 12-Core: Ryzen Threadripper 1920X
✔️ 16-Core: Ryzen Threadripper 1950X

AMD Ryzen Threadripper 2000 Series — TR4 / sTR4

✔️ 12-Core: Ryzen Threadripper 2920X
✔️ 16-Core: Ryzen Threadripper 2950X
✔️ 24-Core: Ryzen Threadripper 2970WX
✔️ 32-Core: Ryzen Threadripper 2990WX

AMD Ryzen Threadripper 3000 Series — sTRX4

✔️ 24-Core: Ryzen Threadripper 3960X
✔️ 32-Core: Ryzen Threadripper 3970X
✔️ 64-Core: Ryzen Threadripper 3990X

Motherboard and Platform Examples

Match the installed socket mechanism and carrier profile before ordering.

✔️ Supermicro H11 SP3: H11SSL-i, H11SSL-C, H11SSL-NC
✔️ Supermicro H12 SP3: H12SSL-i, H12SSL-C, H12SSL-CT, H12SSL-NT
✔️ ASRock Rack EPYCD8 SP3: EPYCD8, EPYCD8-2T
✔️ ASRock Rack ROMED8 SP3: ROMED8-2T, ROMED8-2T/BCM, ROMED8-NL
✔️ ASRock Rack ROMED8QM SP3: ROMED8QM-2T, ROMED8QM-NL
✔️ MSI X399 TR4: X399 GAMING PRO CARBON AC
✔️ GIGABYTE X399 TR4: X399 AORUS XTREME, X399 DESIGNARE EX
✔️ MSI TRX40 sTRX4: Creator TRX40, TRX40 PRO WIFI, TRX40 PRO 10G
✔️ GIGABYTE TRX40 sTRX4: TRX40 AORUS XTREME, TRX40 AORUS MASTER, TRX40 AORUS PRO WIFI, TRX40 DESIGNARE

Some H11 configurations require a particular board revision and BIOS for EPYC 7002 support. A replacement carrier does not add support for another processor generation.

Socket and Generation Limitations

• TR4 / sTR4: Threadripper 1000 and 2000 platforms.
• sTRX4 / TRX4: Threadripper 3000 platforms.
• SP3: Listed EPYC 7001, 7002, and 7003 families.
• sWRX8 / WRX80: Threadripper PRO applications require separate confirmation of the exact carrier profile and socket assembly.
• Other Sockets: Compatibility is not established for SP5, SP6, sTR5, AM4, or AM5.
• Orange Carrier Identification: Orange carriers also exist for newer socket families. Confirm this SP3 / TR4 / sTRX4 design rather than selecting by color alone.

☑️ Key Features

☑️ Orange replacement CPU carrier frame
☑️ Supports matching SP3, TR4, and sTRX4 applications
☑️ Holds the CPU during socket installation and removal
☑️ Guide edges engage the existing socket rail frame
☑️ Integrated handling tab helps position the carrier
☑️ Open center provides access to the CPU heat spreader
☑️ Replaces a missing, cracked, or damaged matching carrier
☑️ Orange, green, blue, and gray references included
☑️ Separate color versions linked above
☑️ Suitable for compatible server, workstation, and repair applications
☑️ G751 thermal compound available separately
☑️ Volume pricing available for large-quantity purchases

⚙️ Fit Notes

Before Ordering

1. Processor Outline: Confirm the correct rectangular CPU package.
2. Retaining Tabs: Match their positions to the processor edges and locating features.
3. Guide Edges: Confirm both sides engage the socket rail frame.
4. Handling Tab: Check its position and clearance.
5. Orientation: Match the CPU, carrier, and socket alignment features.
6. Condition: Retaining features must be intact and free from cracks or distortion.
7. The carrier should slide into the matching rail mechanism without being forced. Stop and check alignment if it binds or will not seat fully.

Installation Overview

• Shut down the system, disconnect power, and follow static-handling precautions.
• Remove the cooling assembly using the system’s service instructions.
• Open the socket mechanism in the sequence marked on the assembly.
• Handle the CPU by its edges and avoid touching underside contact pads.
• Carefully release a damaged carrier’s retaining features without bending or prying against the processor substrate.
• Secure the CPU in the replacement carrier.
• Align both guide edges and slide the assembly fully into the socket rail frame.
• Close and secure the mechanism using the specified sequence, tool, and torque.
• Clean the cooling surfaces, renew the thermal interface as required, and reinstall the approved cooler.

Follow the motherboard or system service procedure. Do not use the socket screws to pull a misaligned carrier into place.
