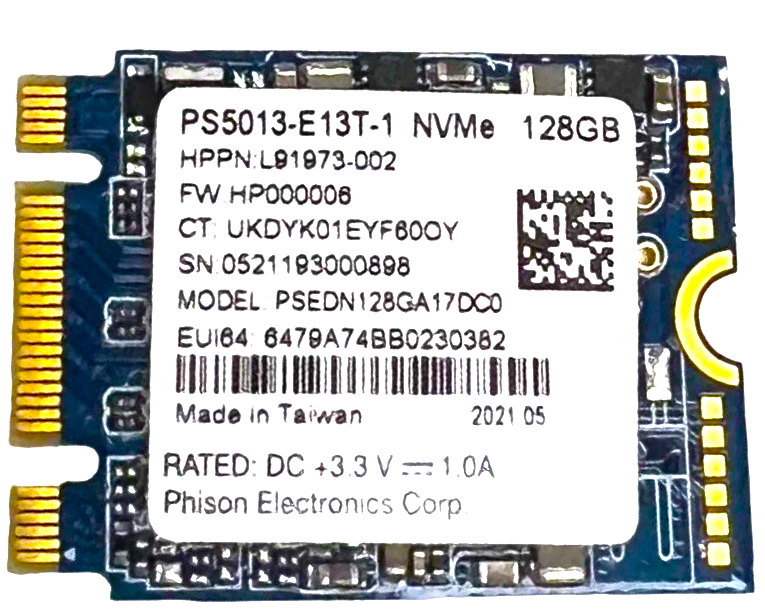

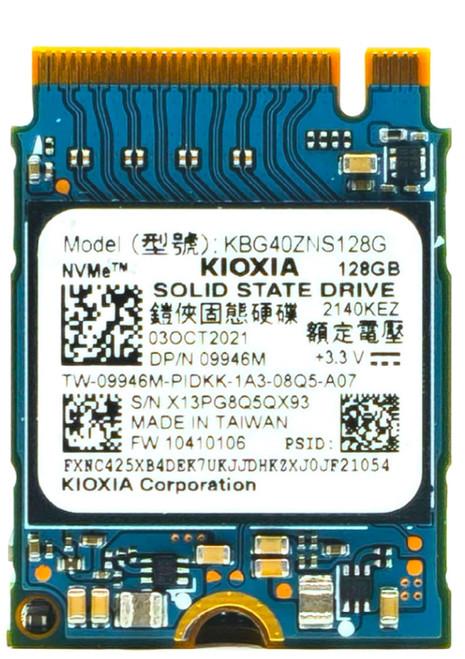

128GB PCIe NVMe M.2 2230 Gen3 Solid State Drive for Surface Steam Deck HP ASUS and Raspberry Pi

This 128GB internal solid state drive is built for systems that use the short M.2 2230 form factor and PCIe NVMe storage. It is an excellent replacement for compact laptops, tablets, detachable computers, handheld gaming PCs, rugged systems, mini PCs, industrial edge devices, and supported Raspberry Pi configurations.

The exact manufacturer, label, controller, firmware, NAND, keying, and PCIe lane count will vary by part number. The confirmed native Gen3 replacement pool includes both Gen3 x4 and Gen3 x2 models; a Gen3 x2 drive remains NVMe-compatible but operates with two PCIe lanes instead of four. Later Gen4 references are separated below because backward operation and boot support must be verified for the exact host.

What's Included

• One 128GB M.2 2230 PCIe NVMe solid state drive

Technical Specifications

• Product Type: Internal Solid State Drive
• Capacity: 128GB decimal capacity; approximately 119GiB before formatting and system partitions
• Form Factor: M.2 2230
• Module Dimensions: 22mm x 30mm
• Typical Maximum Thickness: Approximately 2.38mm; exact component height varies by model
• Storage Interface: PCIe NVMe
• Native PCIe Generation: Gen3 for the core replacement pool
• Connector Keying: M-key on most modules; specified Gen3 x2 industrial variants may use B+M key
• Bus Voltage: 3.3V DC
• NAND Type: Depending on model and revision ordered
• Cache Architecture: DRAMless with host-memory-buffer support or controller-managed cache depending on model
• Security Features: Model-dependent; self-encrypting variants are not interchangeable at the feature level with standard variants
• Performance: Model-dependent and limited by the SSD controller, PCIe generation, host lane count, firmware, workload, temperature, and available free space
• Application: Internal boot drive, operating-system storage, repair, recovery, or secondary storage in a documented 2230 NVMe slot
• Included: One solid state drive only
• Not Included: Mounting screw, carrier, bracket, heat shield, thermal pad, operating system, recovery media, cloning software, HAT, adapter, or external enclosure

Interchangeable / Replacement Part Numbers

P0XH3, 0P0XH3, CW4VK, 0CW4VK, R3CDK, 0R3CDK, T0VY9, 0T0VY9, X3K2X, 0X3K2X, CNYM8, 0CNYM8, 7NRJ4, 07NRJ4, 9946M, 09946M, VJJJK, 0VJJJK, JPTKM, 0JPTKM, PDH7X, 0PDH7X, X11F1, 0X11F1, TPHHV, 0TPHHV, KHJTP, 0KHJTP, D3W83, 0D3W83, VGN9P, 0VGN9P, 6VF4X, 06VF4X, 6PMYM, 06PMYM, L86896-001, L86898-001, L91971-003, L91973-001, L91973-002, M11040-001, M11040-002, M11040-005, M11040-006, M11040-007, M11040-008, M73969-002, N00354-001, N13689-001, N15081-001, N17380-001, N41960-001, M1162575-001, M1119067-003, M1119070-003, RPX-00004, 8LT-00001, RPX-00001, 8LT-00004, EMB-00001, 8LT-00003, DDB-00001, DFB-00001, TGB-00001, TIC-00001, TIV-00001, TLI-00001, N1Y-00001, N2B-00001, EP2-70101, XTD-00001, EP2-68343, RPX-00002, 8LT-00006, RPX-00003, 8LT-00005, RPX-00008, 8LT-00002, 03B03-00234700, EDFK0SA6, MZ-2LZ128D, MZ-9LQ1280, MZ-9LQ128A, MZ-9LQ128C, MZ9LQ128HBHQ, MZ9LQ128HBHQ-00000, MZ9LQ128HBHQ-000D1, MZ9LQ128HBHQ-000H1, MZ9LQ128HCHQ, MZ9LQ128HCHQ-00BD1, MZ9LQ128HCHQ-00BH1, HFM128GD3GX013N, HFM128GDGTNG-8310A, HFM128GDGTNG-83A0A, HFM128GDGTNG-85A0A, HFM128GDGTNG-87A0A, HFM128DGDTNG-87A0A, KBG20ZMS128G, KBG30ZMS128G, KBG3AZMS128G, KBG40ZNS128G, KBG4AZNS128G, THNSN0128GSXA, OM3PDP3128B-AB

⭐ Recommended 2230 to 2280 Converter Bracket - Sold Separately

Need to install this M.2 2230 PCIe NVMe SSD in a compatible system that uses a 2280-length mounting position? Add the D6HHF - M.2 2230 to 2280 PCIe NVMe SSD Converter Bracket.

⭐ Recommended M.2 Mounting Screw - Sold Separately

Need replacement mounting hardware for this SSD or a compatible D6HHF installation? Add the M.2-Screw - M2 x 3mm Phillips Pan Head Screw for M.2 NGFF SSD Mounting.

Recommended Uses

• Compact-system boot-drive replacement and operating-system recovery
• Surface tablet, detachable, laptop, and service-part replacement
• Steam Deck and other documented M.2 2230 handheld-PC repair
• Rugged tablet, Chromebook, mini PC, kiosk, point-of-sale, and thin-client storage
• Secondary data storage where the service manual documents an optional 2230 storage socket
• Industrial edge-controller boot, telemetry, local database, and logging storage
• Raspberry Pi OS boot, applications, containers, local databases, logs, NAS scratch space, and edge data collection through supported hardware
• USB NVMe enclosure use for cloning, diagnostics, imaging, recovery, and portable storage
• Installation in a suitable 2280-length M-key NVMe bay with the separately sold mechanical converter

✅ Compatibility

Compatibility requires an M.2 storage socket wired for PCIe/NVMe, a suitable 2230 mounting point or mechanical converter, supported system firmware, and adequate physical clearance. Systems were often sold with multiple storage configurations, so verify the actual socket, bracket, shield, and service documentation before ordering. For newer hosts whose OEM capacity tables begin at 256GB, 128GB indicates physical and electrical compatibility rather than an OEM-qualified capacity.

✔️ Universal M.2 2230 NVMe Fitment: Laptops, desktops, tablets, handheld PCs, mini PCs, industrial controllers, and embedded systems with a documented M.2 2230 storage socket wired for PCIe/NVMe
✔️ Microsoft Surface Pro: Surface Pro 7+, Surface Pro 8, Surface Pro 9, Surface Pro 9 with 5G, Surface Pro 10 for Business, Surface Pro 10 with 5G, Surface Pro 11th Edition, Surface Pro 11 with 5G, Surface Pro X
✔️ Microsoft Surface Laptop: Surface Laptop 3, Surface Laptop 4, Surface Laptop 5, Surface Laptop 6 for Business, Surface Laptop 7th Edition 13.8-inch, Surface Laptop 7th Edition 15-inch, Surface Laptop Go, Surface Laptop Go 2, Surface Laptop Go 3
✔️ Microsoft Surface Laptop Studio: Surface Laptop Studio and Surface Laptop Studio 2 when the reusable OEM 2230 carrier, shield, and thermal material are retained
✔️ Valve and ASUS Handhelds: Steam Deck, Steam Deck LCD, Steam Deck OLED, ROG Ally RC71L (2023)
✔️ MSI Handhelds: Claw A1M, Claw 7 AI+ A2VM, Claw 8 AI+ A2VM, Claw 7 A2HM, Claw A8 BZ2EM
✔️ Additional Handheld PCs: GPD WIN Mini, GPD WIN Max 2 using its separate 2230 expansion slot, AYANEO FLIP KB, AYANEO FLIP DS
✔️ Alienware: Area-51M, Area-51M R2, M15 R3, M17 R3, M17 R4, Aurora R16, Area-51 R8/AAT2250, 16X Aurora AC16251, 16 Area-51 AA16250, 18 Area-51 AA18250
✔️ Chromebook Models: Latitude 5400 Chromebook, Latitude 7410 Chromebook, Chromebook 3445, Chromebook 5430, Latitude 5300 2-in-1 Chromebook; the 3445 slot is configuration-dependent and absent from some eMMC-only configurations
✔️ HP Chromebook Models: Elite c640 G3 Chromebook, Chromebook x360 14c-cc0xxx, Chromebook x360 14c-cd0xxx, Chromebook x360 14ct-cd000
✔️ G Series: G3 3500, G3 3590, G5 5500, G5 5590, G5 SE 5505, G15 5530, G15 5535, G16 7630
✔️ Inspiron 13 and 14: 13 5310, 13 5320, 14 3420, 14 3430, 14 3493, 14 5425, 14 5430, 14 5485 2-in-1, 14 7415 2-in-1, 14 Plus 7420, 14 Plus 7430
✔️ Inspiron 15 and 16: 15 3501, 15 3511, 15 3515, 15 3520, 15 3521 newer-generation revision, 15 3525, 15 3530, 15 3535, 15 3583, 15 5502, 15 5583, 15 5584, 15 7501, 16 5620, 16 5625, 16 5630, 16 5635, 16 7610, 16 7635 2-in-1, 16 Plus 7640
✔️ Inspiron Models: 17 3790, 17 3793, 3493, 3505, 3593, 3780, 5310, 5390, 5391, 5400 2-in-1, 5406 2-in-1, 5415, 5491 2-in-1, 5493, 5591 2-in-1, 5593, 7300, 7400, 7405 2-in-1, 7490, 7500, 7506 2-in-1 Silver, 7506 2-in-1 Black, 7591 2-in-1
✔️ Latitude 3000 Series: 3120, 3120 2-in-1, 3140, 3140 2-in-1, 3300, 3301, 3310, 3310 2-in-1, 3320, 3330, 3330 2-in-1, 3400, 3410, 3420, 3430, 3440, 3450, 3500, 3510, 3520, 3540, 3550
✔️ Latitude 5000 Series: 5300, 5300 2-in-1, 5310, 5310 2-in-1, 5340, 5340 2-in-1, 5400, 5400 Chrome, 5410, 5420, 5430, 5440, 5500, 5501, 5510, 5511, 5520, 5530, 5550
✔️ Latitude 7000 and 9000 Series: 7310, 7310 2-in-1, 7320 Detachable, 7340, 7340 2-in-1, 7350 Detachable, 7400 2-in-1, 7410, 7410 2-in-1, 7440, 7440 2-in-1, 7450, 7640, 7640 2-in-1, 9330, 9330 2-in-1, 9410 2-in-1, 9420, 9420 2-in-1, 9430, 9430 2-in-1, 9440 2-in-1, 9510 2-in-1, 9520
✔️ Rugged Tablets: Latitude 7220 Rugged, Latitude 7230 Rugged Extreme Tablet, Latitude 7030 Rugged Extreme Tablet, Pro Rugged 10 RA00260, Pro Rugged 12 RA02260
✔️ Precision: 3280 Compact, 3480, 3530, 3541, 3550, 3580, 3581, 3590, 3591, 3680 Tower, 5480, 5680, 5760, 7670, 7680, 7760, 7780, Pro Precision 7 16 PW716260; the Precision 3530 2230 option is configuration-dependent and uses the WWAN-position storage option
✔️ Vostro: 3400, 3425, 3491, 3510, 3591, 5320, 5401, 5490, 5590, 5620, 7620
✔️ XPS: XPS 13 9380, XPS 13 Plus 9320
✔️ OptiPlex: 3090 Micro/SFF, 5090 SFF, 7090 Micro/Ultra, 3000 Tower/SFF, 7000 Micro/SFF, Micro 7010, Micro Plus 7010, Micro 7020, Micro Plus 7020, 3280 All-in-One, All-in-One Plus 7410, All-in-One 7420, All-in-One Plus 7420
✔️ Pro and Pro Max Systems: Pro 7 13 P713265, Pro Max MC14250, Pro Max MC16255, Pro Max MB16250, Pro Max MA16250, Pro Max FCM2250; some configurations require the OEM 2230 bracket or heat shield
✔️ HP Direct Primary-Drive Models: 245 G10, 250 G10, 250R G9, 255 G10, Pro x360 435 G10, ProBook 440 G10, ProBook 445 G10, ProBook 450 G10, EliteBook 645 G9, Dragonfly 13.5 G4, ProBook Fortis 14 G10, MP9 G4 Retail System, Engage One Pro All-in-One
✔️ HP Desktop Mini Models: EliteDesk 705 G4, Elite 800 G4, ProDesk 600 G4 configurations equipped with the documented M.2 2230 storage option
✔️ HP Conditional Secondary-Storage Models Retained and Expanded: EliteBook 640 G10, EliteBook 645 G10, EliteBook 650 G10, EliteBook 655 G10, ProBook 445 G10, ProBook 455 G10, ProBook 445 G11, ProBook 465 G11, ProBook 4 G2a 16-inch Notebook Next Gen AI PC; the optional 2230 slot is data-only, frequently mutually exclusive with WWAN, and may require an OEM support kit
✔️ ThinkEdge: ThinkEdge SE10, ThinkEdge SE10-I, ThinkEdge SE30, ThinkEdge SE70
✔️ ASUS ROG and ExpertBook Systems: ROG Flow X13 2022 GV301RA/GV301RE/GV301RC, ROG Flow Z13 2022 and 2023 GZ301 family, ExpertBook B3 B3405, ExpertBook B3 B3605, ExpertBook B5 B5405, ExpertBook P5 P5405, ExpertBook P1 P1403, ExpertBook P1 BM1403
✔️ ASUS Desktop and External Applications: ROG Strix B860-G Gaming WiFi, Crosshair X870E Dark Hero, ROG Zenith Extreme DIMM.2, Rampage VI Apex, ROG Strix Arion NVMe enclosure; use the documented 2230 mounting position and an NVMe-capable socket
✔️ Raspberry Pi 5 With M.2 HAT+: Pi 5 board family SC1110, SC1111, SC1112, SC1113, SC1400, SC1401, SC1402, SC1403, SC1431 with official M.2 HAT+ Standard SC1166 or M.2 HAT+ Compact SC1771; the Standard board supports 2230/2242 and the Compact board supports 2230; operation is limited to the Pi's PCIe Gen2 x1 link
✔️ Raspberry Pi 500+: SC1237 family with native M-key socket supporting 2230, 2242, 2260, and 2280 NVMe modules
✔️ Raspberry Pi Compute Module 5: Compute Module 5 installed on official IO Board SC1751 or SC1967 with native M-key socket supporting 2230, 2242, 2260, and 2280; operation uses the Compute Module 5 PCIe Gen2 lane
✔️ 2280-Mount NVMe Systems With Converter: Compatible systems with an M-key NVMe socket and 2280 retention point may use this 2230 drive with CPU Medics adapter CPU-2230-2280 when component height, thermal-pad placement, and cover clearance permit
✔️ Verified Correction for Microsoft Surface Go Tablets: Surface Go tablets of every generation are not compatible because their internal storage is not removable; do not confuse Surface Go with the compatible Surface Laptop Go family retained above
✔️ Verified Correction for Latitude 3190: Latitude 3190 and Latitude 3190 2-in-1 are not compatible with this NVMe drive because their M.2 storage interface is SATA; the prior-page 3190 2-in-1 reference is retained here as a documented correction
✔️ Verified Correction for Inspiron 3481 and 3482: Inspiron 14 3481, Inspiron 3481, and Inspiron 14 3482 are not direct 2230 fits because their service manuals specify longer 2242/2260/2280 storage lengths; the prior-page references are retained here as a documented correction
✔️ Verified Raspberry Pi Exclusion: Plain Raspberry Pi 500 is not compatible because it lacks both an internal M.2 socket and the Raspberry Pi 5-style PCIe FFC connector

☑️ Key Features

☑️ 128GB M.2 2230 PCIe NVMe storage for space-constrained systems
☑️ Native Gen3 replacement pool with accurate x2 and x4 lane-width identification
☑️ Faster PCIe/NVMe protocol than SATA-based M.2 storage in compatible hosts
☑️ Extensive cross-reference coverage for manufacturer model numbers and OEM service identifiers
☑️ Confirmed use across Surface devices, laptops, tablets, rugged systems, handheld PCs, compact desktops, and embedded platforms
☑️ Raspberry Pi support through documented native sockets or official M.2 interface hardware
☑️ Optional 2230-to-2280 mechanical adapter available separately for suitable 2280-mount NVMe systems
☑️ Suitable for boot-drive replacement, OS recovery, cloning, diagnostics, and secondary storage where supported
☑️ Refurbished and fully tested for reliable reuse

⚙️ Fit Notes

• This is a PCIe NVMe M.2 2230 SSD and is not a SATA M.2 drive.
• Confirm that the host socket is wired for PCIe/NVMe storage. Never install the drive in a 2230 A-key or E-key Wi-Fi socket.
• Confirm the exact drive length. A 2230 module measures 22mm x 30mm and is not the same as a 2242, 2260, or 2280 module.
• Most listed drives are M-key. The specifically identified Gen3 x2 industrial references may be B+M-key and require a mechanically and electrically suitable NVMe socket.
• Lane width varies. Gen3 x2 drives operate with two lanes and must not be expected to match Gen3 x4 throughput.
• Later Gen4 references are listed separately. Confirm host firmware, boot support, security requirements, and OEM qualification before substituting them into a Gen3 system.
• Some systems accept multiple SSD lengths but require the correct screw position, standoff, carrier, support bracket, heat shield, or thermal pad.
• Surface Laptop Studio and Surface Laptop Studio 2 require reuse of the device-specific SSD carrier and thermal material.
• Optional HP 2230 secondary-storage sockets can be data-only, mutually exclusive with WWAN, or dependent on an OEM support kit.
• Raspberry Pi 5 requires supported M.2 HAT+ hardware and runs the SSD over PCIe Gen2 x1. Raspberry Pi 500+ and the official Compute Module 5 IO Board provide native M-key mounting but remain host-lane limited.
• The CPU Medics 2230-to-2280 adapter changes mounting length only. It does not convert SATA to NVMe, change keying, create a storage interface in a WLAN socket, add PCIe lanes, or change capacity.
• For adapter installations, confirm component height, thermal-pad placement, screw alignment, and cover clearance before assembly.
• Capacity, firmware revision, NAND, controller, cache design, security features, and performance can vary by exact part number and production lot.
• For systems whose OEM capacity list begins at 256GB, this page indicates physical and electrical fit only and does not claim factory qualification at 128GB.
• Back up important data, save the BitLocker recovery key when applicable, and prepare model-specific operating-system recovery media before replacing a boot drive.
