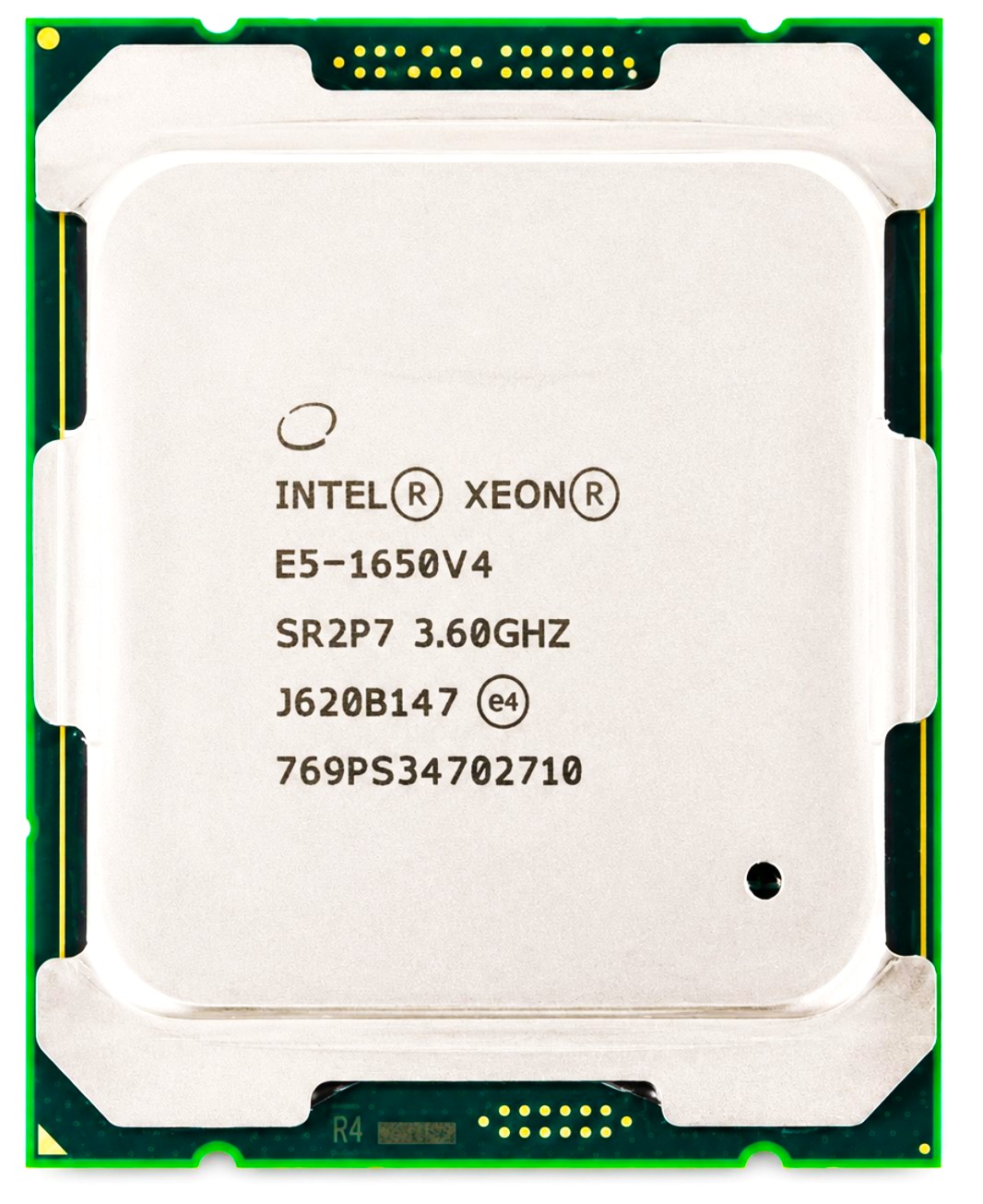

SR2P7 - Intel Xeon E5-1650 v4 3.60GHz 6-Core 15MB 140W LGA2011-3 CPU Processor
The SR2P7 Intel Xeon E5-1650 v4 is a 6-core, 12-thread Broadwell-EP processor designed for compatible single-socket workstation and server platforms using the LGA2011-3 / Socket R3 processor socket. With a 3.60GHz base frequency, up to 4.00GHz max turbo frequency, 15MB Intel Smart Cache, and 140W TDP, this processor is well-suited for professional workstations, engineering systems, rendering stations, virtualization labs, industrial PCs, and compatible entry-level server platforms.
This CPU is intended for systems that support Intel Xeon E5-1600 v4 processors, Intel C612 / compatible workstation-server chipsets, DDR4 memory, and proper 140W processor cooling.
This listing is for the Intel Xeon E5-1650 v4 / SR2P7 processor only. It is not the same as the E5-1650 v3.
Technical Specifications
- Part Number / S-Spec: SR2P7
- Processor Model: Intel Xeon E5-1650 v4
- Processor Family: Intel Xeon E5-1600 v4 Series
- Architecture / Code Name: Broadwell-EP
- Lithography: 14nm
- Socket Type: FCLGA2011-3 / LGA2011-v3 / Socket R3
- Core Count: 6 Cores
- Thread Count: 12 Threads
- Base Clock Speed: 3.60GHz
- Max Turbo Frequency: Up to 4.00GHz
- Intel Smart Cache: 15MB
- TDP: 140W
- QPI Links: 0
- Scalability: 1-Socket only
- Maximum CPU Configuration: 1 processor
- Memory Type Supported: DDR4 1600 / 1866 / 2133 / 2400
- Maximum Memory Channels: 4
- ECC Memory Support: Yes, platform dependent
- PCI Express Revision: PCIe 3.0
- Maximum PCI Express Lanes: 40
- Instruction Set: 64-bit
- Supported Technologies: Intel Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Virtualization Technology, Intel VT-d, Intel 64, Intel AES-NI, Intel AVX2
- Typical Use: Workstation, server, industrial PC, rendering, engineering, virtualization, and high-performance computing applications
Interchangeable / Replacement Part Numbers
SR2P7, E5-1650 v4, E5-1650V4, Xeon E5-1650 v4, CM8066002044306, BX80660E51650V4
Thermal Paste Recommendation
Thermal paste is sold separately and should be applied whenever the processor or heatsink is installed, removed, or replaced. For best thermal transfer between the CPU and heatsink, we recommend using Shin-Etsu G751.
✅ Confirmed Compatibility
Please note that the following list is not exhaustive. Compatibility depends on your system's specific configuration. It's essential to verify compatibility with your system or enclosure manufacturer prior to installation.
✔️
HPE / HP ProLiant Server Series: ProLiant ML110 Gen9, ProLiant DL120 Gen9
✔️
HPE / HP Workstation Series: Z440 Workstation, Z640 Workstation, Z840 Workstation when configured for a supported single-CPU E5-1600 v4 setup
✔️
Dell Precision Workstation Series: Precision Tower 5810, Precision Tower 7810 when configured with BIOS support for E5-1600 v4 processors and single-CPU operation, Precision Tower 7910 when configured for single-CPU E5-1600 v4 operation
✔️
Lenovo ThinkStation Series: ThinkStation P510, ThinkStation P410, compatible ThinkStation systems configured for Intel Xeon E5-1600 v4 / E5-2600 v4 LGA2011-3 processors
✔️
Supermicro X10 Single-Socket Workstation / Server Boards: X10SRA, X10SRA-F, X10SRi-F, X10SRL-F, X10SRH-CF, X10SRH-CLN4F, X10SRM-F, X10SRM-TF, X10SRW-F
✔️
Supermicro X10-Based Server / Workstation Platforms: Systems built on compatible X10 single-socket C612 motherboards supporting Intel Xeon E5-1600 v4 and E5-2600 v4 processors
✔️
Intel C612 Workstation / Server Platforms: Compatible LGA2011-3 systems using Intel C612 chipset with BIOS support for Broadwell-EP Xeon E5-1600 v4 processors
✔️
Industrial / Embedded Workstation Platforms: Industrial PCs, automation workstations, machine-control PCs, lab systems, and embedded server platforms using compatible LGA2011-3 / C612 boards with E5-1600 v4 BIOS support and 140W CPU cooling support
✔️
Custom Workstation Builds: Custom LGA2011-3 workstation builds using compatible server/workstation motherboards that support Xeon E5-1600 v4 processors
☑️ Key Features
☑️ 6-core, 12-thread Intel Xeon processor for compatible workstation and server systems
☑️ 3.60GHz base clock with up to 4.00GHz max turbo frequency
☑️ 15MB Intel Smart Cache for strong workstation and professional workload performance
☑️ Broadwell-EP architecture with 14nm process technology
☑️ Supports DDR4 memory up to 2400MHz, depending on system configuration
☑️ Supports ECC memory when used with a compatible motherboard and supported memory modules
☑️ 40 PCIe 3.0 lanes for expansion cards, graphics cards, storage controllers, and workstation add-on devices
☑️ Suitable for CAD, rendering, engineering software, virtualization, test benches, industrial control systems, and server workloads
☑️ Designed for compatible single-socket LGA2011-3 / Socket R3 systems
☑️ Good replacement option for systems originally configured with Intel Xeon E5-1650 v4 / SR2P7 processors
⚙️ Fit Notes
- This listing is for Intel Xeon E5-1650 v4 / SR2P7 only.
- This is not interchangeable with Intel Xeon E5-1650 v3 unless the system specifically supports both v3 and v4 processors and the customer approves the change.
- This processor is single-socket only and should not be used for dual-CPU configurations.
- Confirm your motherboard supports Intel Xeon E5-1600 v4 processors before ordering.
- Confirm your BIOS is updated to a version that supports Broadwell-EP / Xeon E5 v4 processors.
- Confirm your system uses the LGA2011-3 / Socket R3 platform, not older LGA2011 / Socket R.
- This CPU has a 140W TDP and requires a heatsink/fan assembly rated for 140W processors.
- Memory speed, maximum memory capacity, and ECC support depend on the motherboard, chipset, BIOS, and installed memory type.
- Some systems that support E5-2600 v4 processors may not automatically support E5-1600 v4 processors. Always verify the system’s CPU support list before installation.
- Thermal paste is required during installation and is sold separately.
