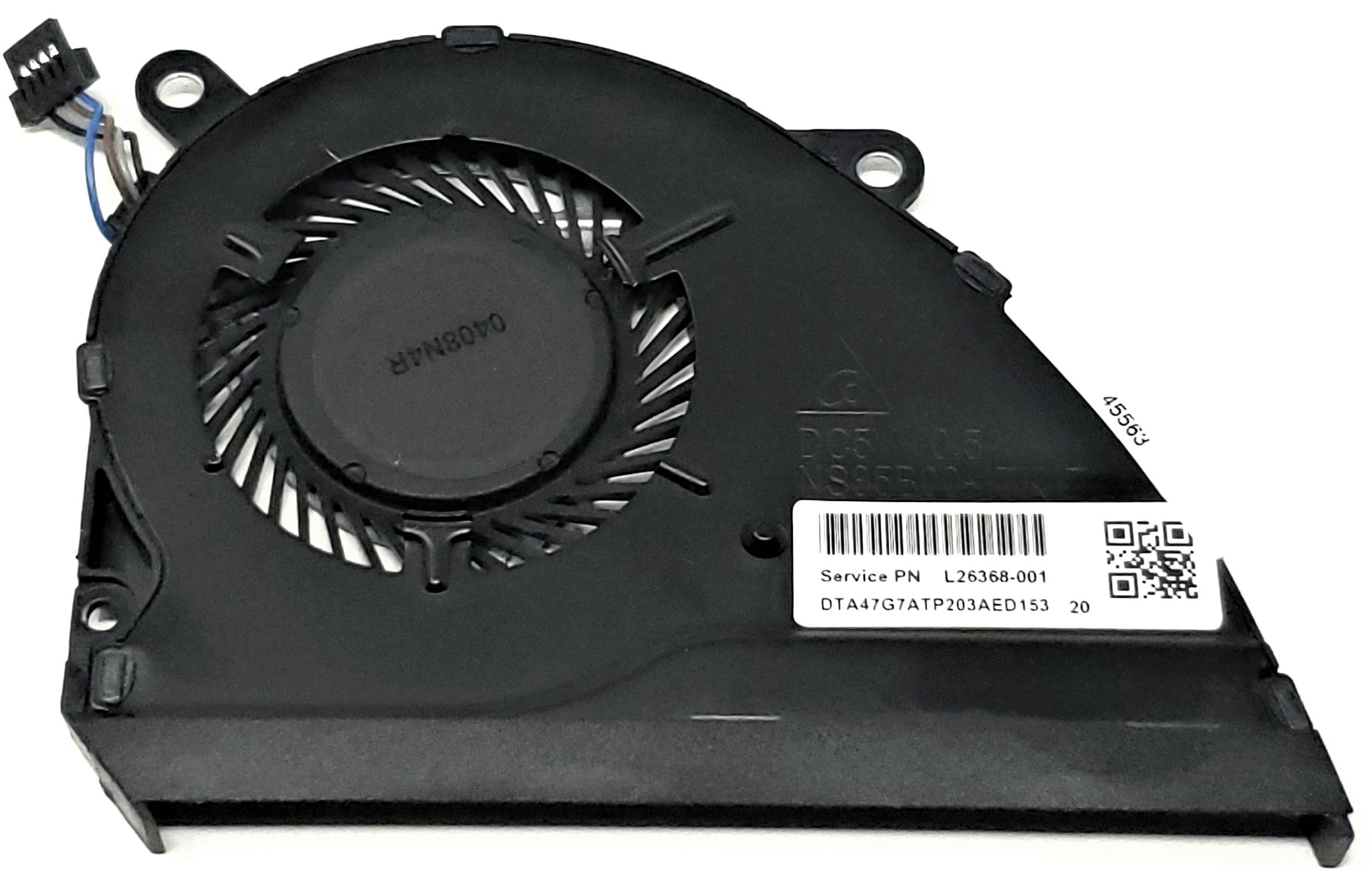

L26368-001 CPU Cooling Fan for Pavilion 14-CE0000 14-CE1000 14-CE2000 14-CE3000

Internal 5V blower-style CPU cooling fan for compatible Pavilion 14-CE laptops equipped with UMA / integrated graphics and the single-fan cooling configuration. This replacement fan connects directly to the system board through its attached 4-pin cable. This listing is for the fan with attached cable only; heatsink, mounting screws and thermal compound are not included unless shown.

Technical Specifications

• Primary Part Number: L26368-001
• Service Spare Number: L19160-001
• Product Type: Internal laptop CPU cooling fan
• Cooling Design: Centrifugal blower-style fan
• Graphics Configuration: UMA / integrated graphics
• Cooling Configuration: Single fan
• Platform Reference: G7A-UMA / TPN-Q207
• Rated Voltage: DC 5V
• Common Rated Current: 0.50A
• Power Connector: 4-pin / 4-wire system-board connector
• Fan Control: System-board-controlled variable-speed operation
• Cable Type: Permanently attached fan cable
• Mounting Method: Three-screw internal mounting
• Mounting Screw Size: 3x Phillips M2.0 x 4.0 screws
• Installation Location: Inside the laptop beneath the bottom cover
• Heatsink Included: No
• Mounting Screws Included: No
• Thermal Compound Included: No
• Application: Replacement for a failed, seized, noisy, intermittent or non-spinning cooling fan

Interchangeable / Replacement Part Numbers

47G7ATP203A, DTA47G7ATP203AED514, L19160-001, L26368-001, NFB87A05H-001, NS85B00-17K17, XR85A02-18K16

⭐ Recommended Thermal Grease - Sold Separately

Replacing the fan by itself normally does not require removal of the heatsink. If the heatsink is removed or the existing thermal interface is disturbed during service, completely clean off the old compound and apply fresh thermal grease before reassembly.

Shin-Etsu G751 High-Performance Thermal Grease for CPU and GPU Installation

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. This fan is intended for UMA / integrated-graphics systems using the single-fan L19160-001 or L26368-001 cooling configuration. Some Pavilion 14-CE models with dedicated graphics use L19159-001, L26367-001 or NS85B00-17K16 and a different cooling layout. Verify the original fan part number, graphics configuration, housing shape, mounting points, cable routing and connector before ordering.

✔️ Pavilion 14-CE0000 Series UMA: 14-CE0000TU through 14-CE0033TU, 14-CE0064ST, 14-CE0068ST, 14-CE0001LA, 14-CE0003LA, 14-CE0005LA, 14-CE0008CA, 14-CE0010CA
✔️ Pavilion 14-CE1000 Series UMA: 14-CE1000TU through 14-CE1017TU, 14-CE1019TU through 14-CE1024TU, 14-CE1026TU, 14-CE1027TU, 14-CE1056WM, 14-CE1058WM
✔️ Pavilion 14-CE2000 Series UMA: 14-CE2000TU through 14-CE2006TU, 14-CE2006LA, 14-CE2007LA, 14-CE2011TU, 14-CE2013TU, 14-CE2014TU, 14-CE2019TU through 14-CE2050TU, 14-CE2064ST, 14-CE2068ST
✔️ Pavilion 14-CE3000 Series UMA: 14-CE3000TU through 14-CE3050TU, 14-CE3063TU through 14-CE3068TU, 14-CE3006LA, 14-CE3007LA, 14-CE3010LA, 14-CE3014LA, 14-CE3015LA, 14-CE3016LA, 14-CE3060LA, 14-CE3064ST, 14-CE3065ST
✔️ Additional Compatible Models Using L19160-001: Laptop 14-CK2014TU, Laptop 14-DQ1062LA

☑️ Key Features

☑️ Direct replacement for laptops originally equipped with L26368-001 or L19160-001
☑️ Designed for UMA / integrated-graphics cooling configurations
☑️ Compact centrifugal blower directs air through the original heatsink and exhaust vent
☑️ DC 5V operation with a 4-pin / 4-wire system-board connection
☑️ System-controlled variable fan speed
☑️ Permanently attached cable requires no soldering
☑️ Three-point mounting for supported Pavilion 14-CE chassis
☑️ Multiple compatible manufacturer revisions and fan-label references
☑️ Fan-only design allows the original compatible heatsink to be reused
☑️ Suitable for correcting fan noise, restricted rotation and fan-failure warnings caused by the original fan

⚙️ Fit Notes

• Match L26368-001, L19160-001 or another listed fan reference whenever possible.
• This fan is intended for UMA / integrated-graphics systems using the single-fan cooling layout.
• It is not interchangeable with L19159-001, L26367-001 or NS85B00-17K16, which are associated with discrete-graphics configurations.
• L26366-001 is a heatsink reference, not an interchangeable fan-only part number.
• The regulatory model TPN-Q207 alone does not confirm compatibility, because both UMA and discrete-graphics configurations exist.
• Compare the fan housing, exhaust opening, three mounting tabs, cable exit position, cable length and connector with the original fan.
• Compatible manufacturing revisions may have different label layouts or manufacturer codes while retaining the same housing, connector and mounting arrangement.
• Retain the three original M2.0 x 4.0 mounting screws for installation.
