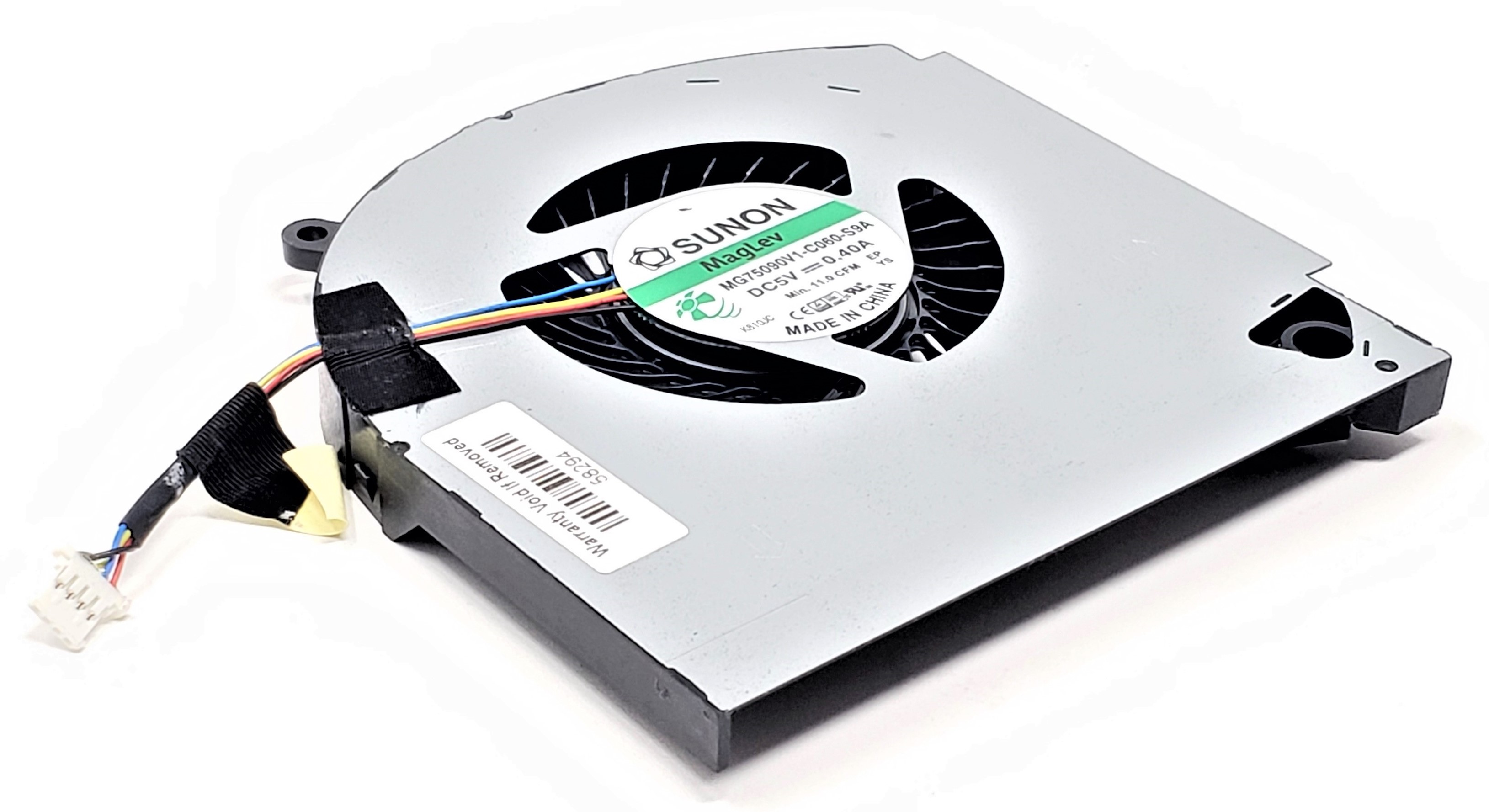

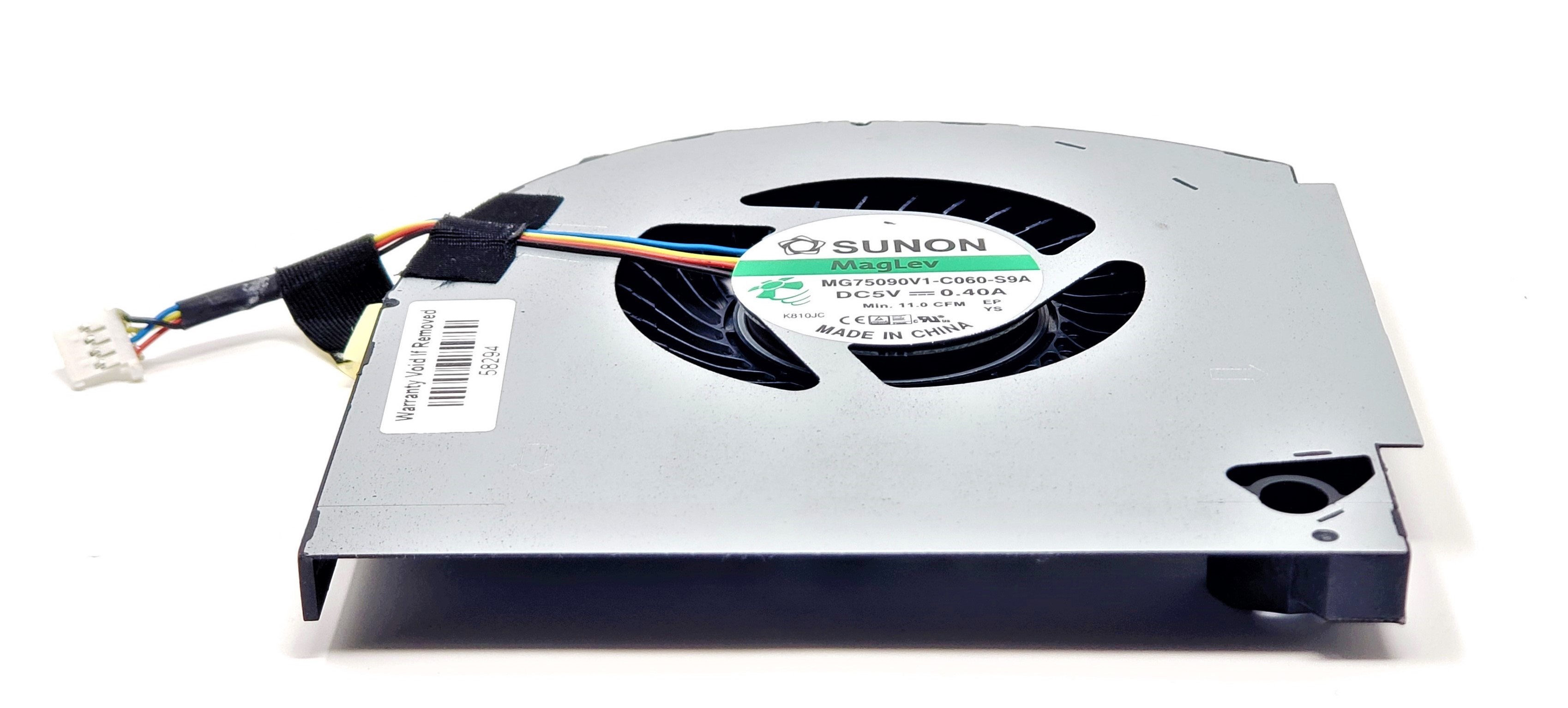

4RFW1 / MG75090V1-C060-S9A - CPU Cooling Fan for Alienware 17 R4 R5 P31E

This internal CPU cooling fan is designed for compatible Alienware 17 R4 and 17 R5 gaming laptops using the 4RFW1 or MG75090V1-C060-S9A fan configuration. It provides dedicated processor cooling and uses a four-wire connection for system-controlled fan speed and monitoring.

This listing includes the CPU-side fan only. These systems use a separate GPU-side cooling fan, available through the related-product links below.

Technical Specifications

• Brand: Unbranded / Third Party
• Primary Part Number: 4RFW1
• Fan Model: MG75090V1-C060-S9A
• Product Type: Internal CPU cooling fan
• Installation Position: CPU side
• Rated Voltage: DC 5V
• Rated Current: 0.40A
• Airflow: Approximately 11 CFM
• Connector: 4-pin
• Wire Count: Four wires
• Speed Control: System-controlled
• Approximate Dimensions: 88mm × 88mm × 10mm
• Approximate Cable Length: 30mm
• Compatible Platform Codes: ALW17C, P31E, P31E001
• Included Quantity: One CPU cooling fan
• Not Included: GPU fan, heatsink, heat pipes, thermal compound, thermal pads, screws, or installation tools

Interchangeable / Replacement Part Numbers

Exact direct references:

4RFW1, 04RFW1, CN-04RFW1, MG75090V1-C060-S9A

Related compatible CPU-side revision references:

V613M, 0V613M, CN-0V613M, MG75090V1-C090-S9A, DC28000IGS0

Related production revisions may use different labels or electrical-current markings. Compare the housing shape, mounting points, connector, cable exit, and wire arrangement with the original fan before ordering.

⚠️ Product Appearance Notice

The item shipped may differ slightly from the listing photos. Label color, label layout, printed markings, sticker style, wire colors, and other minor cosmetic details may vary by production batch or supplier.

The actual fan will match the physical design shown, including the housing shape, mounting points, dimensions, cable configuration, connector, voltage, airflow direction, and intended compatibility. Any variation will be functionally interchangeable for the application described.

⭐➕ Matching GPU-Side Cooling Fan — Sold Separately

This listing is for the CPU-side fan. The matching GPU-side fan uses part number K2PKV or MG75090V1-C070-S9A:

• ✔️ K2PKV GPU-Side Cooling Fan
• ✔️ MG75090V1-C070-S9A GPU-Side Cooling Fan

The CPU and GPU fans are shaped differently and are not interchangeable with each other.

⭐➕ Recommended Thermal Compound

If the heatsink is removed during installation, completely clean away the old thermal compound and apply fresh Shin-Etsu G751 High-Performance Thermal Grease before reinstalling the heatsink.

✅ Confirmed Compatibility

Fan revisions can vary within the same laptop family. Confirm the original part number, housing shape, mounting points, connector, cable routing, and installation position before ordering.

Alienware 17 R4 Series

✔️ Series and Platform Codes: Alienware 17 R4, AW17R4, ALW17C, P31E, P31E001
✔️ Supported Configurations: GTX 1060, GTX 1070, and GTX 1080 configurations originally equipped with the 4RFW1 or MG75090V1-C060-S9A CPU-side fan
✔️ Documented Retail Configuration: AW17R4-7352SLV-PUS

Alienware 17 R5 Series

✔️ Series and Platform Codes: Alienware 17 R5, AW17R5, ALW17C, P31E, P31E001
✔️ Supported Configurations: GTX 1060, GTX 1070, GTX 1080, and Radeon configurations using the matching CPU-side fan layout
✔️ Documented Retail Configurations: AW17R5-7108SLV-PUS, AW17R5-7811BLK-PUS

☑️ Key Features

☑️ Replacement CPU-side cooling fan
☑️ DC 5V, 0.40A electrical rating
☑️ Approximately 11 CFM airflow
☑️ Four-wire, four-pin system connection
☑️ Supports automatic fan-speed control and monitoring
☑️ Designed for compatible Alienware 17 R4 and R5 configurations
☑️ Useful for replacing a noisy, seized, damaged, intermittent, or non-operational CPU fan
☑️ Matching GPU-side fan and thermal compound available separately

⚙️ Fit Notes

• This is the CPU-side fan, not the GPU-side fan.
• Do not select a replacement using “left” or “right” descriptions alone; viewing orientation differs between sellers and service diagrams.
• Confirm the original fan number, housing outline, screw locations, cable exit, connector, wire count, and wire order.
• Alternate production revisions may have different label designs, printed current ratings, or supplier markings.
• The CPU and GPU fans are not interchangeable even though they are installed in the same system.
• This listing includes the fan only. Reuse the original heatsink, heat pipes, screws, and thermal pads when serviceable.
• Disconnect the AC adapter and internal battery before installation.
• Route the fan cable exactly as originally installed so it cannot contact the fan blades or become pinched beneath the heatsink.
• Clean dust from the heatsink fins and exhaust vents before fitting the replacement fan.
• If the heatsink is removed, replace the thermal compound and preserve the location and thickness of every original thermal pad.
