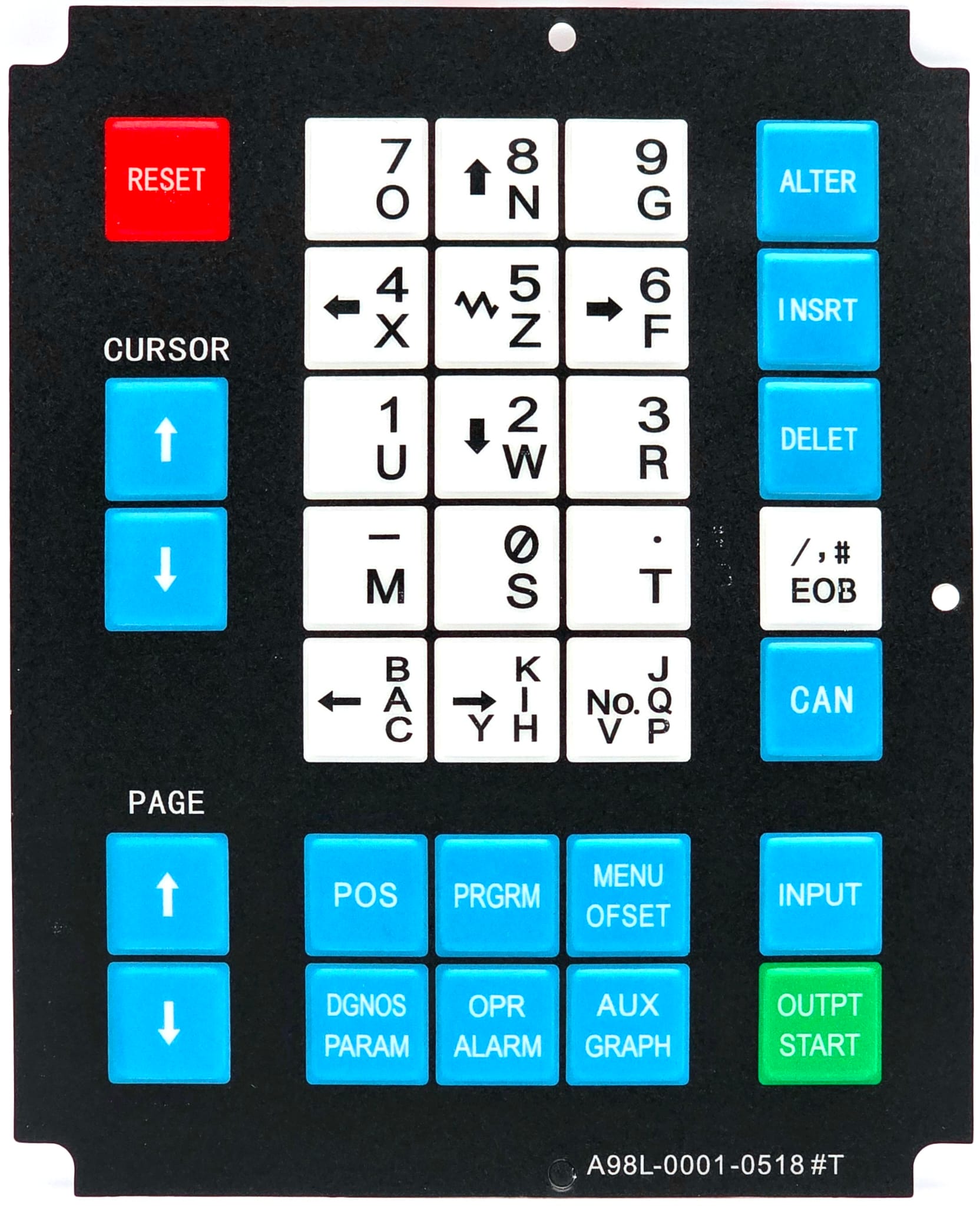

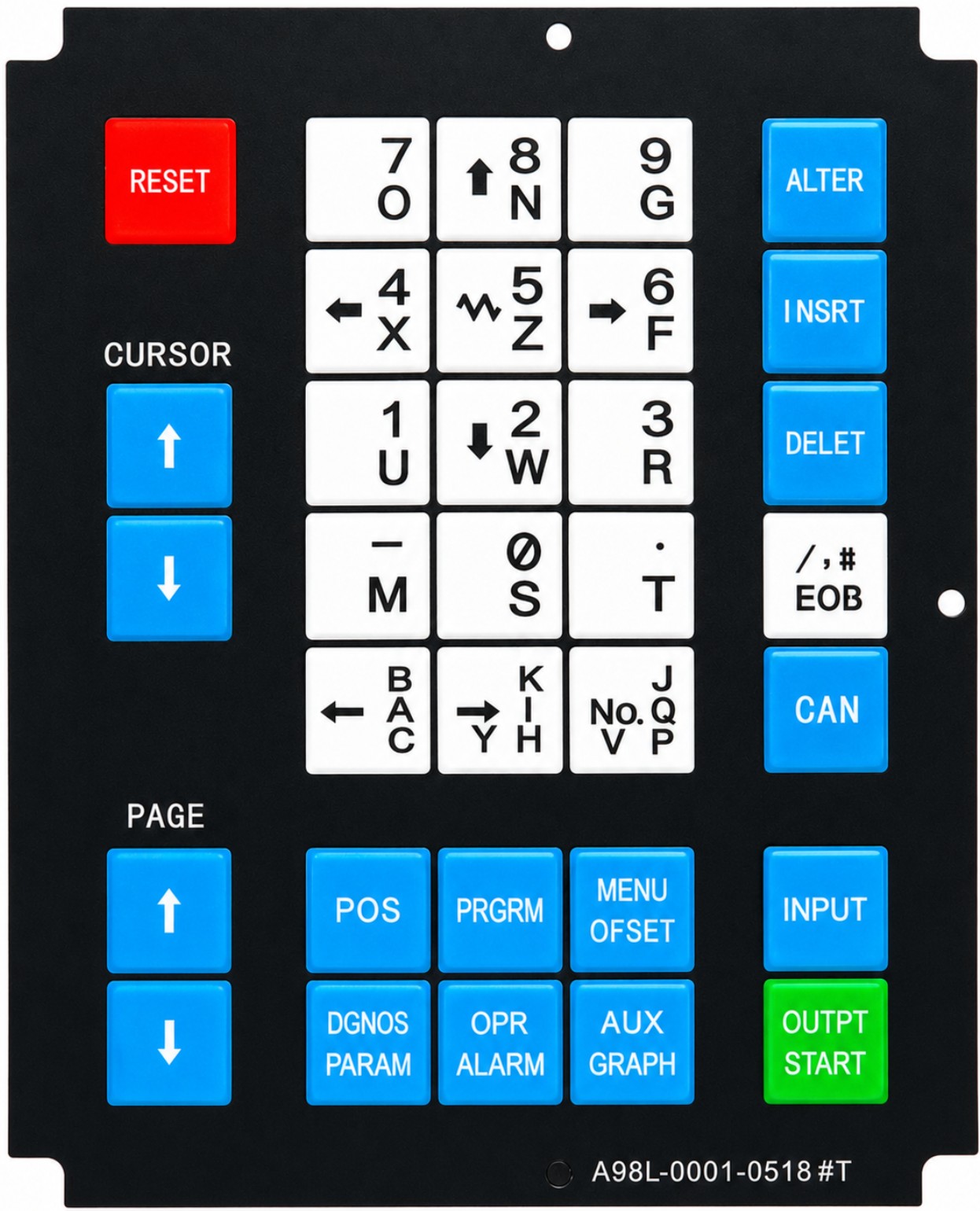

A98L-0001-0518#T - Membrane Operator Keypad Keysheet for Fanuc 0-T MDI Keyboard

Replacement membrane operator keypad keysheet for compatible Fanuc CNC keyboard and MDI operator panel assemblies using the A98L-0001-0518#T layout. This keysheet is designed to replace worn, cracked, faded, peeling, or unresponsive membrane overlays while retaining the original button layout and CNC control functions.

Technical Specifications

• Primary Part Number: A98L-0001-0518#T
• Part Type: Membrane operator keypad keysheet
• Application Type: CNC machine operator panel / MDI keyboard overlay
• Keyboard Style: 32-key membrane keypad layout
• Keypad Layout: Numeric, cursor, page, edit, menu, diagnostic, alarm, input, and output start function keys
• Color Layout: Black faceplate with white, blue, green, and red key areas

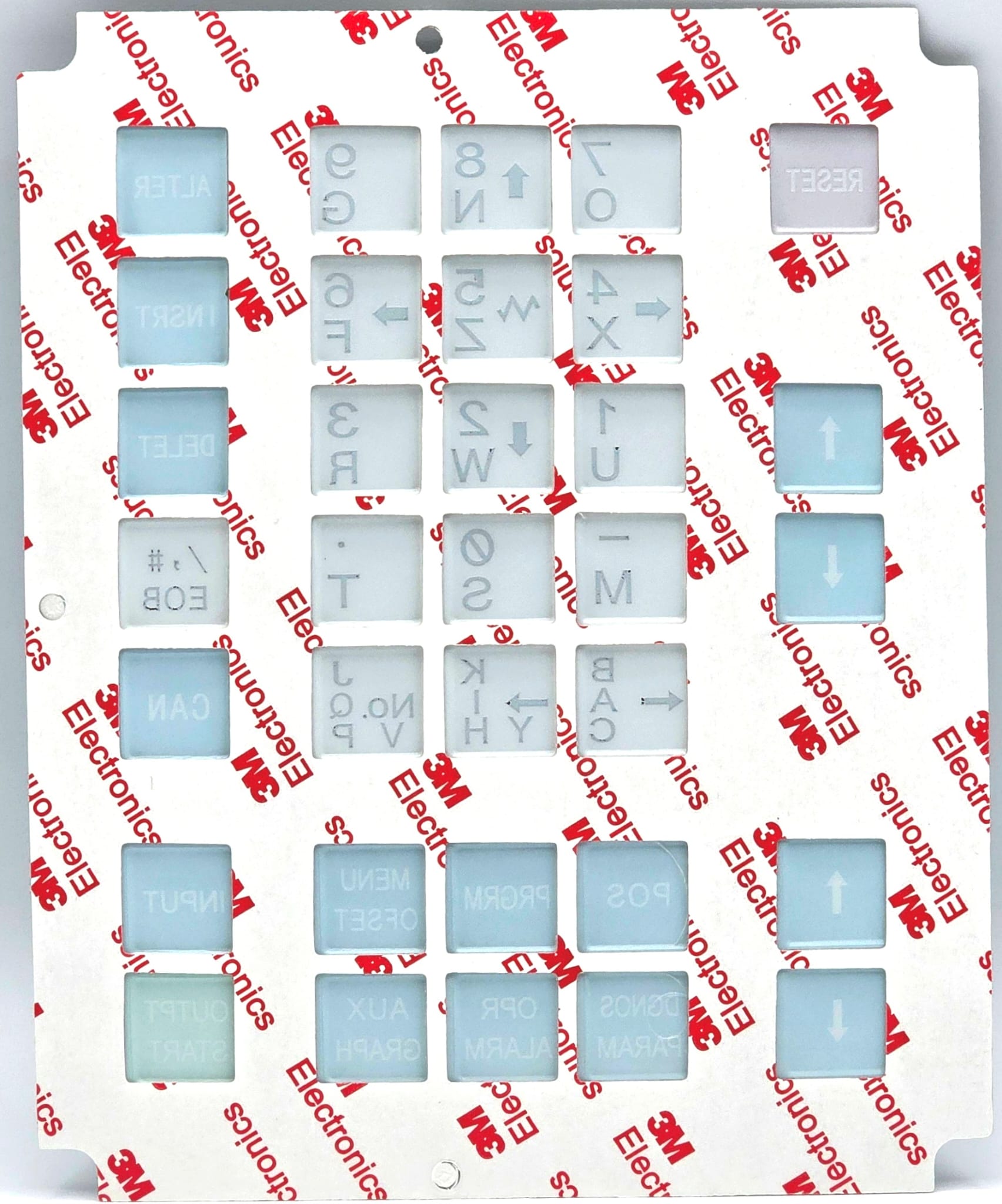

• Mounting Type: Adhesive-style membrane overlay installation
• Installation Location: Front operator keyboard / MDI panel
• Compatible Control Type: Fanuc CNC control keyboard assemblies using the same A98L-0001-0518#T keysheet layout
• Application Use: CNC control panel keypad replacement

Interchangeable / Replacement Part Numbers

A98L-0001-0518#T, A98L-0001-0518 #T, A98L00010518T

Related / Similar Part Numbers

A98L-0001-0518#TR, A98L-0001-0518#M, A98L-0001-0518#MR

Please verify the exact suffix, color layout, key legends, and button arrangement before ordering. Similar A98L-0001-0518 variants may look close but can have different markings, colors, or panel layouts.

✅ Confirmed Compatibility

Please note that the following list is not exhaustive. Compatibility depends on your machine’s specific control panel, original keysheet part number, key layout, suffix code, and operator keyboard assembly. It’s essential to verify the part number printed on your original membrane and compare the full key layout before installation.

✔ Fanuc CNC Keyboard / MDI Panels: Compatible with Fanuc operator keyboard and MDI panel assemblies that use the A98L-0001-0518#T membrane keysheet layout
✔ Fanuc 0-T Series Style Controls: Commonly used with Fanuc 0-T / 0TA / 0TB / 0TC / 0TD style MDI keyboard layouts when the original keypad matches A98L-0001-0518#T
✔ 32-Key Operator Keypad Layouts: Compatible with 32-key Fanuc keypad assemblies matching the same numeric, cursor, edit, diagnostic, alarm, input, output start, and menu function layout

☑️ Key Features

☑️ Replacement membrane keysheet for compatible Fanuc CNC operator keyboards
☑️ Matches A98L-0001-0518#T keypad layout
☑️ 32-key MDI/operator panel style layout
☑️ Includes numeric, cursor, page, edit, diagnostic, alarm, menu, input, and output start key markings
☑️ Helps restore worn, faded, cracked, peeling, or damaged keyboard overlays
☑️ Designed for front-panel CNC control keypad replacement
☑️ Useful for maintenance, repair, and refurbishment of compatible Fanuc control panels
☑️ Direct-fit replacement when the original membrane part number and key layout match

⚙️ Fit Notes

• Match your original membrane part number whenever possible
• Confirm the original keysheet is marked A98L-0001-0518#T
• Compare the full keypad layout, button colors, key legends, mounting holes, and outer shape before ordering
• Similar suffix versions such as #M, #MR, or #TR may not have the exact same visual layout
• This is a membrane keysheet / keypad overlay only
• This does not include the full keyboard assembly, PCB, control panel, CNC controller, or display unit
• Installation may require removing the old membrane and cleaning the panel surface before applying the replacement
• Make sure the underlying keyboard electronics are working before replacing only the membrane overlay
• Do not install if your machine requires a different A98L keysheet number, different suffix, or different key arrangement
• Always power down the machine and follow proper service procedures before replacing CNC operator panel components
